Correlations and Timeliness of COVID-19 Surveillance Data Sources and Indicators ― United States, October 1, 2020–March 22, 2023

When the U.S. COVID-19 public health emergency declaration expires on May 11, 2023, national reporting of certain categories of COVID-19 public health surveillance data will be transitioned to other data sources or will be discontinued; COVID-19 hospitalization data will be the only data source available at the county level (1). In anticipation of the transition, national COVID-19 surveillance data sources and indicators were evaluated for purposes of ongoing monitoring. The timeliness and correlations among surveillance indicators were analyzed to assess the usefulness of COVID-19–associated hospital admission rates as a primary indicator for monitoring COVID-19 trends, as well as the suitability of other replacement data sources. During April 2022–March 2023, COVID-19 hospital admission rates from the National Healthcare Safety Network (NHSN)^† lagged 1 day behind case rates and 4 days behind percentages of positive test results and COVID-19 emergency department (ED) visits from the National Syndromic Surveillance Program (NSSP). In the same analysis, National Vital Statistics System (NVSS) trends in the percentage of deaths that were COVID-19–associated, which is tracked by date of death rather than by report date, were observable 13 days earlier than those from aggregate death count data, which will be discontinued (1). During October 2020–March 2023, strong correlations were observed between NVSS and aggregate death data (0.78) and between the percentage of positive SARS-CoV-2 test results from the National Respiratory and Enteric Viruses Surveillance System (NREVSS) and COVID-19 electronic laboratory reporting (CELR) (0.79), which will also be discontinued (1). Weekly COVID-19 Community Levels (CCLs) will be replaced with levels of COVID-19 hospital admission rates (low, medium, or high) which demonstrated >99% concordance by county during February 2022–March 2023. COVID-19–associated hospital admission levels are a suitable primary metric for monitoring COVID-19 trends, the percentage of COVID-19 deaths is a timely disease severity indicator, and the percentages of positive SARS-CoV-2 test results from NREVSS and ED visits serve as early indicators for COVID-19 monitoring. Collectively, these surveillance data sources and indicators can support monitoring of the impact of COVID-19 and related prevention and control strategies as ongoing public health priorities.

Authorizations to collect certain categories of public health data will expire on May 11, 2023 (1), including national data on the percentage of positive SARS-CoV-2 test results from CELR (2); national reporting of aggregate case and death counts, which CDC compiles from official public health jurisdiction sources, will also be discontinued (3). CDC will transition to using provisional mortality data from NVSS as the primary data source on COVID-19 deaths (4) and to using SARS-CoV-2 test positivity data from NREVSS, an established sentinel network of more than 450 clinical, public health, and commercial laboratories (5). Finally, county COVID-19 hospital admission levels based on admission rates per 100,000 population will replace CCLs^§ as a primary metric for COVID-19 monitoring. CCLs were first designed to assist communities and members of the public in making prevention decisions based on local context and unique needs (6).

Statistical measures were used to compare trends in moving 7-day averages for COVID-19 surveillance indicators during October 1, 2020–March 22, 2023, including cross-correlation, autocorrelation, pairwise correlations, and a geographic consistency metric at the state level. Daily averages were available for most data sources; weekly data were available for NVSS,^¶ NREVSS, and aggregate case and death counts after a shift to weekly cadence in October 2022, with some jurisdictions continuing to report daily totals. Cross-correlation was used to estimate the lag (offset in days) in indicators relative to COVID-19–associated hospital admission rates** during April 1, 2022–March 22, 2023, by calculating Spearman’s correlation coefficients by state with reporting lags from −35 days to 35 days over a moving 12-week window; the lag that produced the highest mean correlation was selected. Lags were adjusted to obtain temporal alignment of indicators in subsequent analyses. Pairwise Spearman’s correlations were used to evaluate associations between indicators, and mean correlations were calculated and ranked. Spearman’s autocorrelations were used to assess the signal-to-noise ratio for each indicator (compared with itself, offset by 7 days). Geographic consistency was evaluated using a metric calculated by computing daily z-scores for each indicator, averaging these scores by U.S. state, and computing the standard deviation over all states. Surveillance indicators with lower values for the geographic consistency metric were less likely to have jurisdictions consistently reporting higher or lower than average indicator values.

A linear regression model^†† was fit for each surveillance indicator during October 1, 2020–March 31, 2022, and April 1, 2022–March 22, 2023, to estimate ratios (slopes) relative to the COVID-19–associated hospital admission rates. To categorize indicators for data visualized on maps, the calculated ratios were used to identify thresholds for each indicator that were anchored to hospital admission rates used in the CCLs (10 and 20 admissions per 100,000 population), but the lower two categories were divided to increase resolution during periods of lower incidence (five, 10, 15, and 20 admissions per 100,000 population). Percent agreement for weekly CCLs and COVID-19 hospital admission levels (<10.0, 10.0–19.9, and ≥20.0 per 100,000 population) was calculated among the 3,220 U.S. counties (and county-equivalent areas) during February 24, 2022–March 23, 2023 (i.e., since the CCLs were launched). The analysis was carried out using Python (version 3.8.6; Python Software Foundation) with packages Pandas (version 1.5.2) and NumPy (version 1.21.6) for all correlations. Linear regression was carried out using scikit-learn (version 1.1.1). This activity was reviewed by CDC and conducted consistent with applicable federal law and CDC policy.^§§

Normalized trends in surveillance indicators largely aligned over time; differences were observed in lag and proportionality relative to hospital admission rates for both early indicators of COVID-19 activity and disease severity indicators (Figure). Analysis of cross-correlations between surveillance indicators showed that trends in hospital admission rates lagged 1 day behind case rates and 4 days behind the percentages of COVID-19 ED visits and positive test results (either from CELR or NREVSS [i.e., early indicators]) (Table 1). Severity indicators that lagged behind hospital admission rates included inpatient and intensive care unit (ICU) bed occupancy (3–4 days) and deaths (8 days for NVSS and 21 days for aggregate death counts).

Rates of COVID-19–associated hospital admissions and percentages of inpatient beds occupied by COVID-19 patients, deaths that were COVID-19–associated, and ED visits with a diagnosis of COVID-19 had the highest mean correlations for capturing trends across all indicators (Table 2). Hospital admission rates exhibited both a high signal-to-noise ratio and a low geographic consistency, suggesting that this indicator might provide more easily interpretable and reliable information than others. Since October 2020, correlation was strong (7) between death rates from NVSS and aggregate death counts (0.79) and between NREVSS and CELR positive test results (0.79); correlation since April 2022 was lower for deaths (0.41) and slightly lower for positive test results (0.70).

Estimated ratios for percentage of positive test results relative to hospital admission rates from both CELR and NREVSS have increased since April 2022 related to decreased testing volumes, although CELR was more affected, possibly related to differential reporting of negative results (Table 1) (Figure).^¶¶ The ratios for percentage of ICU beds occupied by COVID-19 patients, percentage of deaths that are COVID-19–associated, and rates of COVID-19 deaths have decreased relative to hospital admissions since April 2022, likely due to decreased severity of recent infections as a consequence of high population levels of vaccine- and infection-induced immunity, improvements in medical treatment, and changes in variants over time.

A comparison of CCL and COVID-19 hospital admission level designations (low, medium, or high) by week during February 2022–March 2023 demonstrated >99% concordance among 3,220 counties (Supplementary Figure, https://stacks.cdc.gov/view/cdc/127731). Most discordant levels were reported during periods of high COVID-19 incidence during February and March 2022. When the levels were discordant, CCLs exceeded the hospital admission levels.

Acknowledgments

Amanda R. Galante, Mohammed A. Kemal, Kaitlin Rainwater-Lovett, Rachel O. Sholder, Applied Physics Laboratory, Johns Hopkins University; Andrea Cool, Booz Allen Hamilton; Farida B. Ahmad, Robert N. Anderson, Jodi A. Cisewski, Stephanie Dietz, Aron Hall, Kathleen Hartnett, Diba Khan, Seth Kroop, Aaron Kite-Powell, Barbara E. Mahon, Meredith McMorrow, Tess Palmer, Matthew D. Ritchey, Michael Sheppard, Karl Soetebier, Paul Sutton, Akili P. Weakland, Amber Winn, Caryn M. Womack, CDC; Kim Del Guercio, Deloitte Consulting, LLP.

Corresponding author: Heather M. Scobie, vih8@cdc.gov.

¹Coronavirus and Other Respiratory Viruses Division, National Center for Immunization and Respiratory Diseases, CDC; ²Applied Physics Laboratory, Johns Hopkins University, Laurel, Maryland; ³Division of Healthcare Quality Promotion, National Center for Emerging and Zoonotic Infectious Diseases, CDC; ⁴Office of Public Health Data, Surveillance, and Technology, CDC.

References

1. Silk BJ, Scobie HM, Duck WM, et al. COVID-19 surveillance after expiration of the public health emergency declaration—United States, May 11, 2023. MMWR Morb Mortal Wkly Rep 2023;72. https://www.cdc.gov/mmwr/volumes/72/wr/mm7219e1.htm?s_cid=mm7219e1_w
2. HHS. Fact sheet: COVID-19 public health emergency transition roadmap. Washington, DC: US Department of Health and Human Services; 2023. https://www.hhs.gov/about/news/2023/02/09/fact-sheet-covid-19-public-health-emergency-transition-roadmap.html
3. Khan D, Park M, Burkholder J, et al. Tracking COVID-19 in the United States with surveillance of aggregate cases and deaths. Public Health Rep . Epub March 24, 2023. https://doi.org/10.1177/00333549231163531 PMID:36960828
4. CDC. National Center for Health Statistics. Technical notes: provisional death counts for coronavirus disease (COVID-19). Atlanta, GA: US Department of Health and Human Services, CDC; 2023. Accessed April 18, 2023. https://www.cdc.gov/nchs/nvss/vsrr/covid19/tech_notes.htm
5. CDC. The National Respiratory and Enteric Virus Surveillance System (NREVSS). Atlanta, GA: US Department of Health and Human Services, CDC; 2023. Accessed April 19, 2023. https://www.cdc.gov/surveillance/nrevss/index.html
6. CDC. COVID-19. Science brief: indicators for monitoring COVID-19 community levels and making public health recommendations. Atlanta, GA: US Department of Health and Human Services, CDC; 2022. Accessed April 18, 2023. https://www.cdc.gov/coronavirus/2019-ncov/science/science-briefs/indicators-monitoring-community-levels.html
7. Schober P, Boer C, Schwarte LA. Correlation coefficients: appropriate use and interpretation. Anesthesia & Analgesia 2018;126(5):1763–8 https://doi.org/10.1213/ane.0000000000002864 PMID:29481436
8. Ahmad FB, Anderson RN, Knight K, Rossen LM, Sutton PD. Advancements in the National Vital Statistics System to meet the real-time data needs of a pandemic. Am J Public Health 2021;111:2133–40. https://doi.org/10.2105/AJPH.2021.306519 PMID:34878853

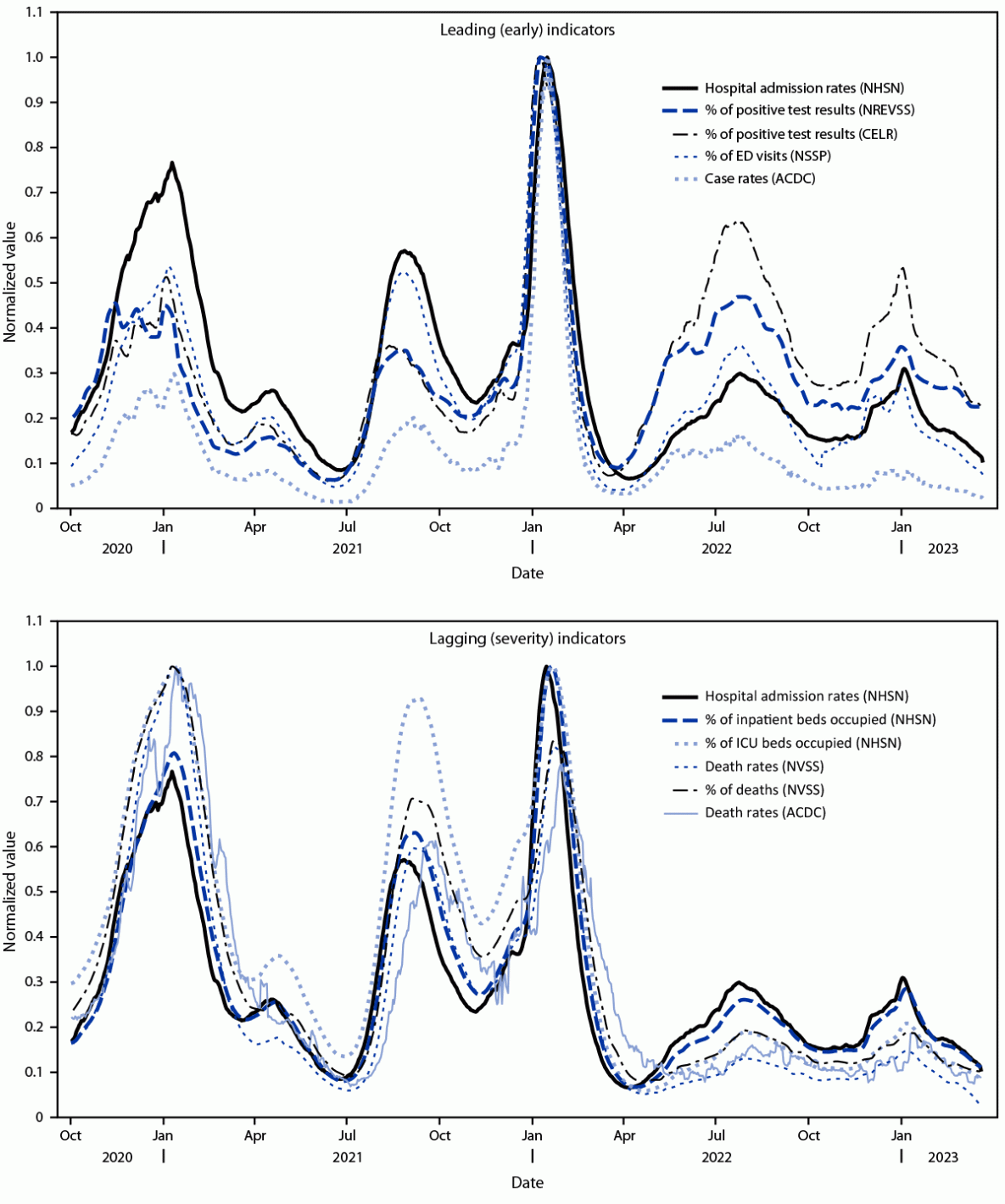

FIGURE. Trends in normalized values* of leading (A) and lagging (B)^† COVID-19 surveillance indicators — United States, October 1, 2020–March 22, 2023

Abbreviations: ACDC = aggregate cases and death counts; CELR = COVID-19 electronic laboratory reporting; ED = emergency department; ICU = intensive care unit; NHSN = National Healthcare Safety Network; NREVSS = National Respiratory and Enteric Viruses Surveillance System; NVSS = National Vital Statistics System.

* Normalized values were obtained by dividing each indicator by its maximum over the displayed time frame, which fixes the peak for each curve at 1.

^† Leading or lagging indicators were defined relative to hospital admission rates, which are shown in each panel.

Abbreviations: ACDC = aggregate cases and death counts; Auto = automatic assignment of six categories based on dynamic natural breaks; CCL = COVID-19 Community Level; CELR = COVID-19 electronic laboratory reporting; ED = emergency department; HHS = U.S. Department of Health and Human Services; ICU = intensive care unit; NA = not applicable after May 11, 2023; NAAT = nucleic acid amplification test; NHSN = National Healthcare Safety Network; NREVSS = National Respiratory and Enteric Viruses Surveillance System; NSSP = National Syndromic Surveillance Program; NVSS = National Vital Statistics System.
* Moving 7-day averages were used for all indicators. These averages were available daily for all data sources except NVSS and NREVSS, which were available weekly.
^† Cross-correlation was used to calculate the lag (number of days) in indicators relative to hospital admissions as follows: Spearman’s correlations between indicators compared with hospital admission rates per 100,000 population were computed over a moving 12-week window. The offset (ranging from −35 days to 35 days) in indicators that produced the highest mean correlation across all windows and states is displayed. Negative lags correspond to indicators that lead admissions and positive lags correspond to indicators that lag admissions.
^§ A linear regression model y = mx + b was fit where x represents the hospital admission rate, y represents the indicator of interest, m represents the ratio between indicators, and the intercept b was fixed at zero, such that for a one-unit rise in admissions per 100,000 population (x), the indicator of interest (y) will increase by the ratio value.
^¶ To categorize indicators for data visualized in maps on COVID Data Tracker, the calculated ratios were used to identify thresholds for each indicator that were anchored to hospital admission rates used in the CCLs (10 and 20 admissions per 100,000 population), but the lower two categories were divided to increase resolution during periods of lower incidence (five, 10, 15, and 20 admissions per 100,000 population).
** As of December 15, 2022, COVID-19 hospital data are required to be reported to CDC’s NHSN, which monitors national and local trends in health care system stress, capacity, and community disease levels for approximately 6,000 hospitals in the United States. Data reported by hospitals to NHSN represent aggregated counts and include metrics capturing information specific to hospital capacity, occupancy, hospitalizations, and admissions. Before December 15, 2022, hospitals reported data directly to HHS or via a state submission for collection in the HHS Unified Hospital Data Surveillance System. Full guidance on hospital reporting and a list of data elements and definitions can be found online. https://www.hhs.gov/sites/default/files/covid-19-faqs-hospitals-hospital-laboratory-acute-care-facility-data-reporting.pdf
^†† National weekly COVID-19 ACDC data are compiled by CDC using automated data extraction from official jurisdictional data sources (e.g., through application programming interfaces) and direct submissions from jurisdictions. ACDC data shifted from daily to weekly cadence in October 2022, with some jurisdictions continuing to report daily totals and others reporting only weekly totals.
^§§ NSSP is a collaboration among CDC, local and state health departments, and academic and private partners to collect and analyze electronic health care data, including data from ED visits. NSSP has expanded substantially during the COVID-19 pandemic, with data from 6,300 facilities in all 50 U.S. states, the District of Columbia, and Guam. NSSP includes 75% of all ED visits in the United States. Data are not shown on COVID Data Tracker for states where ED facility participation is low (currently Minnesota and Oklahoma) or diagnosis information is incomplete (currently Missouri). https://www.cdc.gov/nssp/index.html
^¶¶ NVSS collects and reports mortality statistics using U.S. death certificate data. These data are provided through contracts between CDC’s National Center for Health Statistics and vital registration systems operating in the various jurisdictions legally responsible for the registration of vital events. NVSS data from U.S. territories, other than Puerto Rico, are not included in provisional mortality reporting. https://www.cdc.gov/nchs/nvss/index.htm
*** CELR has become more variable in quality or altogether unavailable in many jurisdictions over time. With the expiration of the COVID-19 public health emergency, HHS can no longer require reporting of negative SARS-CoV-2 laboratory testing results via CELR. https://www.cdc.gov/coronavirus/2019-ncov/lab/reporting-lab-data.html
^††† NREVSS collects weekly aggregate SARS-CoV-2 NAAT results from a sentinel network of reporting laboratories in the United States including clinical, public health and commercial laboratories. These data exclude a small proportion of antigen test results and do not include antibody and at-home test results. NREVSS percent positivity data will be added to COVID Data Tracker after May 11, 2023. https://www.cdc.gov/surveillance/nrevss/index.html

Abbreviations: ACDC = aggregate cases and death counts; CCL = COVID-19 Community Level; CELR = COVID-19 electronic laboratory reporting; ED = emergency department; HHS = U.S. Department of Health and Human Services; ICU = intensive care unit; NA = not applicable after May 11, 2023; NAAT = nucleic acid amplification test; NHSN = National Healthcare Safety Network; NREVSS = National Respiratory and Enteric Viruses Surveillance System; NSSP = National Syndromic Surveillance Program; NVSS = National Vital Statistics System.
* Pairwise Spearman’s correlations were used to evaluate associations between indicators after adjusting for lag, and mean correlations were calculated and ranked.
^† Autocorrelations (Spearman’s) were used to assess the signal-to-noise ratio for each indicator (compared with itself but offset by 7 days); indicators were ranked based on autocorrelation.
^§ Geographic consistency was evaluated using a metric calculated by computing daily z-scores for each indicator, averaging these scores by state, and computing the standard deviation over all states. Surveillance indicators with lower values for the geographic consistency metric are less likely to have jurisdictions consistently reporting indicator values higher or lower than the average. Indicators were ranked based on their geographic consistency metric.
^¶ As of December 15, 2022, COVID-19 hospital data are required to be reported to CDC’s NHSN, which monitors national and local trends in health care system stress, capacity, and community disease levels for approximately 6,000 hospitals in the United States. Data reported by hospitals to NHSN represent aggregated counts and include metrics capturing information specific to hospital capacity, occupancy, hospitalizations, and admissions. Before December 15, 2022, hospitals reported data directly to HHS or via a state submission for collection in the HHS Unified Hospital Data Surveillance System. Full guidance on hospital reporting and a list of data elements and definitions can be found online. https://www.hhs.gov/sites/default/files/covid-19-faqs-hospitals-hospital-laboratory-acute-care-facility-data-reporting.pdf
** NVSS collects and reports mortality statistics using U.S. death certificate data. These data are provided through contracts between CDC’s National Center for Health Statistics and vital registration systems operating in the various jurisdictions legally responsible for the registration of vital events. NVSS data from U.S. territories, other than Puerto Rico, are not included in provisional mortality reporting. https://www.cdc.gov/nchs/nvss/index.htm
^†† NSSP is a collaboration among CDC, local and state health departments, and academic and private partners to collect and analyze electronic health care data, including data from emergency department visits. NSSP has expanded substantially during the COVID-19 pandemic, with data from 6,300 facilities in all 50 U.S. states, the District of Columbia, and Guam. NSSP includes 75% of all emergency department visits in the United States. Data are not shown on COVID Data Tracker for states where ED facility participation is low (currently Minnesota and Oklahoma) or diagnosis information is incomplete (currently Missouri). https://www.cdc.gov/nssp/index.html
^§§ National weekly COVID-19 ACDC data are compiled by CDC using automated data extraction from official jurisdictional data sources (e.g., through application programming interfaces) and direct submissions from jurisdictions. ACDC data shifted from daily to weekly cadence in October 2022, with some jurisdictions continuing to report daily totals and others reporting only weekly totals.
^¶¶ Percent positivity from CELR have become more variable in quality or altogether unavailable in many jurisdictions over time. With the expiration of the COVID-19 public health emergency, HHS can no longer require reporting of negative SARS-CoV-2 laboratory testing results via CELR. https://www.cdc.gov/coronavirus/2019-ncov/lab/reporting-lab-data.html
*** NREVSS collects weekly aggregate SARS-CoV-2 NAAT results from a sentinel network of reporting laboratories in the United States including clinical, public health and commercial laboratories. These data exclude a small proportion of antigen test results and do not include antibody and at-home test results. NREVSS percent positivity data will be added to COVID Data Tracker after May 11, 2023. https://www.cdc.gov/surveillance/nrevss/index.html
