What to know
Proteins on the surface of the virus particles are recognized by the immune system which triggers one kind of immune response. These surface proteins are called antigens. Antigenic characterization refers to the analysis of antigenic properties of viruses to examine their relatedness. CDC antigenically characterizes viruses to monitor for changes in circulating viruses and to compare how similar these viruses are to those included in flu vaccines.
About
Two proteins (hemagglutinin and neuraminidase) on the surface of flu viruses represent the major antigens targeted by antibodies (see Figure 1). When someone is exposed to a flu virus (either through infection or vaccination) their immune system makes specific antibodies against the antigens on that particular flu virus. The term "antigenic properties" is used to describe the immune response triggered by the antigens on a particular virus. "Antigenic characterization" refers to the analysis of a virus's antigenic properties to help assess how related it is to another virus.
CDC antigenically characterizes about 2,000 flu viruses during a typical flu season to monitor for changes in circulating viruses and to compare how similar these viruses are to those included in flu vaccines. Antigenic characterization can give an indication of the flu vaccine's ability to produce an immune response against the flu viruses circulating in people. This information also helps experts decide what viruses should be included in the upcoming season's flu vaccine.
Genetic sequencing and Serology tests using human sera provide additional information about how similar circulating flu viruses are to vaccine viruses or other flu viruses.

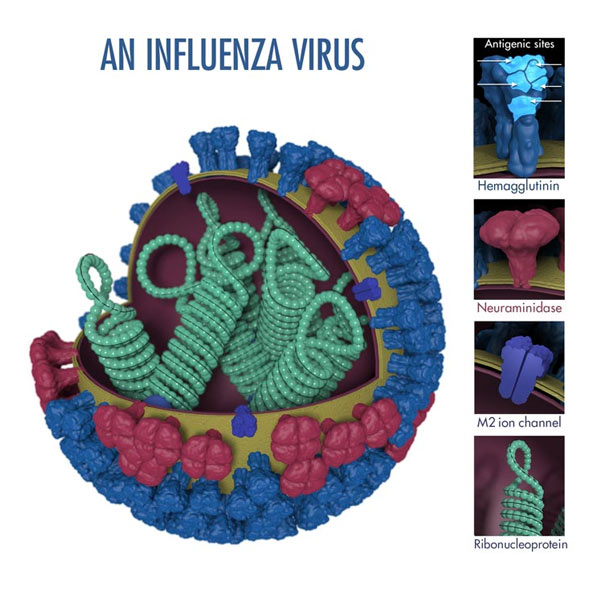

Figure 1. Flu Virus Features
The Hemagglutination Inhibition Assay (HI Test)
Scientists use a test called the hemagglutination inhibition assay (HI test) to antigenically characterize flu viruses. HA proteins on the surface of flu viruses can bind to RBC and “glue” them together, forming a lattice structure (this is known as “hemagglutination”). The picture below provides an example of hemagglutination.
The HI test works by measuring how well antibodies bind to the HA proteins and prevent them from “gluing” red blood cells together (i.e., hemagglutination inhibition). The picture below provides an example of hemagglutination inhibition.
Scientists use the HI test to assess the antigenic similarity between different flu viruses. This test helps to select candidate vaccine viruses (CVVs), which can then be included in seasonal flu vaccines. HI test results can tell us whether antibodies developed after vaccination (or infection) with one virus can recognize and bind to other viruses, which means these other viruses are similar to the vaccine virus. Scientists also use the HI test to compare the antigenic properties (i.e., the virus' ability to be recognized by antibodies) of currently circulating flu viruses with those of flu viruses that have circulated in the past.
The HI test involves three main components: antibodies, flu virus, and red blood cells that are mixed together in the wells (i.e., cups) of a microtiter plate (See Image 1. A).
Image 1. A Microtiter Plate
The antibodies used in the HI test are obtained by infecting an animal (usually a ferret) that is immunologically naïve (i.e., it has not been exposed to any flu virus or vaccine previously in its lifetime). The animal's immune system creates antibodies in response to the antigens on the surface of the particular flu virus that was used to infect that animal. To study these antibodies, a sample of blood is drawn from the animal, from which serum is obtained. The HI test measures how well the antibodies in the serum recognize and bind to other flu viruses (such as, flu viruses isolated from flu patients). If the ferret antibodies that resulted from infection to the vaccine virus recognize and bind well to the flu virus from a sick patient, this indicates that the vaccine virus is antigenically similar to the flu virus obtained from the sick patient. This finding has implications for how well the vaccine might work in people.
As previously mentioned, the flu viruses used in the HI test are obtained from sick people. CDC and other WHO collaborating centers collect specimens from people all over the world to track which flu viruses are infecting humans and to monitor how these viruses are changing.
For the HI test, red blood cells (RBCs) are taken from animals (usually turkeys or guinea pigs). They are used in the HI test because flu viruses bind to them. Normally, RBCs in a solution will sink to the bottom of the microtiter plate well and form a red dot at the bottom (Figure 2A). However, when an flu virus is added to the RBC solution, the virus' hemagglutinin (HA) surface proteins will bind to multiple RBCs. When flu viruses bind to the RBCs, the RBCs form a lattice structure (Figure 2B). This keeps the RBCs suspended in solution instead of sinking to the bottom and forming the red dot. The process of the flu virus binding to RBCs to form the lattice structure is called "hemagglutination."
Figure 2. Components of the HI Assay
When antibodies are pre-mixed with flu virus followed by RBCs, the antibodies will bind to flu virus antigens that they recognize, covering the virus so that its HA surface proteins can no longer bind to RBCs (Figure 2C). The reaction between the antibody and the virus inhibits (i.e., prevents) hemagglutination from occurring, which results in hemagglutination inhibition (as shown in Figure 2C). This is why the assay is called a "hemagglutination inhibition (HI) test." Hemagglutination (as depicted in Figure 2B) occurs when antibodies do not recognize and bind to the flu viruses in the solution, and as a result, the flu viruses bind to RBC, forming the lattice structure. When the antibodies do recognize and bind to the influenza virus in the solution, this shows that the vaccine virus (like the one the ferret was infected with) is similar to the influenza virus obtained from the sick patient. When this happens, the influenza virus being tested is said to be "antigenically similar" to the influenza virus that was used to create the antibodies (from the ferret).
When a circulating influenza virus is antigenically different from a vaccine, the antibodies developed in response to the vaccine virus may not recognize and bind this virus. In the HI test, this will cause hemagglutination to occur (see Figure 2B). Circulating influenza viruses tested via the HI test are typically obtained from respiratory samples collected from sick patients.
Assessing Antigenic Similarity Using the HI Test
The HI test assesses the degree of antigenic similarity between two viruses using a scale based on antibody dilution. As previously mentioned, the HI test is performed using a microtiter plate. The microtiter plate contains rows and columns of wells (i.e., cups) where RBCs, flu virus and antibodies (developed against a comparison virus, such as a vaccine virus) are mixed. Dilutions are marked across the top of the microtiter plate. These dilutions function as a scale for assessing antigenic similarity and immune response. By testing the ability of greater dilutions of antibody to prevent hemagglutination, scientists measure how well those antibodies recognize and bind to an flu virus. The higher the dilution, the fewer antibodies are needed to block hemagglutination and the more antigenically similar the two viruses being compared are to each other. The highest dilution of antibody that results in hemagglutination inhibition of the test virus is considered an HI titer (Figure 3).
Figure 3. HI Titer Assay
Figure 4. Antigenic Characterization Assay
Public health experts consider influenza viruses to be antigenically similar or “like” each other if their HI titers differ by two dilutions or less. (This is equivalent to a two-well (i.e., a four-fold dilution) or less difference). Using Figure 4 as an example, when circulating virus 1 is compared to a vaccine virus, circulating virus 1 differs by one dilution (a 2-fold difference) and therefore is “like” the previous season’s vaccine virus. However, circulating virus 2 differs by five dilutions (a 32-fold difference) and therefore is not “like” the previous season’s vaccine virus. Circulating viruses that are antigenically dissimilar (i.e., not “like”) to vaccine virus are considered “low reactors.”
Limitations
Antigenic characterization gives important information about whether a vaccine made using a chosen vaccine virus will protect against circulating flu viruses, but there are several limitations to antigenic characterization test methodology, which are described below.
Neutralization Assay
CDC also uses another assay for antigenic characterization called "high-content imaging-based neutralization test" (HINT). This assay also tests whether antibodies in serum obtained after virus infection (humans or ferrets) can neutralize viruses obtained from sick patients. In addition to the HI assay, HINT is used to measure how circulating flu A(H3N2) viruses are evolving to evade human immunity.
Egg Adaptations
Right now, most flu vaccines are made using viruses grown in chicken eggs. When human viruses are grown in eggs, genetic changes can occur in the viruses. These are called "egg-adapted" changes. Some egg-adapted changes may change the virus' antigenic (or immunogenic) properties while others may not. Egg-adapted changes have become a particular problem for selection of candidate vaccine viruses (CVVs) for the influenz A(H3N2) virus component of flu vaccine made using egg-based production technology. Influenza A(H3N2) viruses tend to grow less well in chicken eggs than other influenza viruses (e.g., influenza A(H1N1)pdm09 virus), and they also are more prone to egg-adapted changes. Such changes can reduce the immune protection provided by the flu vaccine against circulating A(H3N2) viruses.
Time from Vaccine Virus Selection to Delivery of Vaccine
Using current egg-based vaccine production technology, it takes about six months from the time that a vaccine virus is chosen (February for the Northern Hemisphere flu vaccine) to the time when flu vaccines become widely available. Because influenza viruses are constantly changing, circulating influenza viruses may change during this six-month period. If these genetic changes cause antigenic changes, it could mean that antibodies created through vaccination may not recognize and neutralize circulating influenza viruses. New technologies that shorten the manufacturing time could reduce the chances of significant antigenic changes occurring in circulating viruses before flu vaccines become available each year.
Use of Animals
Use of the HI test or HINT to assess the similarity of circulating influenza viruses to vaccine viruses involves obtaining antibodies from animals (particularly ferrets). Ferrets are often used as an animal model for influenza infection because they can be easily infected with human influenza viruses and experience similar signs and symptoms (e.g., fever, sneezing, loss of appetite, etc.). Prior to infection, ferret serum is pre-screened to determine that it does not contain antibodies to circulating influenza viruses. When ferrets are infected with influenza virus, they typically produce strong antibody responses against that particular virus. Therefore, ferret antisera are commonly used to detect antigenic differences between influenza viruses. However, there are differences between the immune responses of ferrets and humans which need to be considered when assessing the antigenic properties of influenza viruses.
