Applications of System Dynamics Models in Chronic Disease Prevention: A Systematic Review

Ying Wang, RN, BSN1; Bo Hu, MD, PhD2; Yuxue Zhao, RN, BSN1; Guofang Kuang, RN, BSN3; Yaling Zhao, RN, MSN1; Qingwei Liu, RN, MSN1; Xiuli Zhu, RN, PhD1 (View author affiliations)

Suggested citation for this article: Wang Y, Hu B, Zhao Y, Kuang G, Zhao Y, Liu Q, et al. Applications of System Dynamics Models in Chronic Disease Prevention: A Systematic Review. Prev Chronic Dis 2021;18:210175. DOI: http://dx.doi.org/10.5888/pcd18.210175.

PEER REVIEWED

Summary

What is already known about this topic?

The prevention of chronic diseases is one of the most critical health problems in the world.

What is added by this report?

Our study identified the potential short- and long-term effects of upstream and downstream chronic disease prevention strategies through a systematic review.

What are the implications for public health practice?

Health care workers and policy makers can use system dynamics models to analyze the priorities of chronic disease prevention to delay disease progression and reduce the health care burden of chronic diseases.

Abstract

Introduction

Chronic disease is a serious health problem worldwide. Given that health care resources are limited, a comprehensive, effective, and affordable way is needed to provide insights to prevent chronic diseases. System dynamics models provide a comprehensive and systematic method that can predict results over time. These models can simulate and predict appropriate prevention measures for chronic diseases to determine the best practice.

Methods

Two researchers (Y.W., B.H.) independently searched databases (PubMed, Web of Science, Scopus, and Embase) for full-text articles published from January 2000 through February 2021. A PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analysis) 2020–compliant search was carried out to review system dynamics models of chronic disease prevention. A total of 34 articles were included in our study.

Results

We divided the prevention measures of system dynamics models into 2 main categories: upstream prevention and downstream prevention. Upstream prevention measures include lifestyle (eg, tobacco control, balanced diet, mental health, moderate exercise), obesity prevention, and social factors. Downstream prevention measures include clinical treatment of chronic diseases. Results showed that effective upstream prevention measures could reduce the prevalence of chronic diseases, and downstream prevention measures could reduce the incidence of complications, improve quality of life, prolong life, save medical costs, and reduce mortality.

Conclusion

To our knowledge, our systematic review is the first to evaluate the application of system dynamics models in preventing chronic diseases. Such models can provide effective simulations. Hence, we can use system dynamics models to design and implement effective prevention measures for people with chronic diseases.

Top

Introduction

Chronic diseases have the highest disease mortality worldwide, and their prevention is affected by many driving forces, such as lifestyle, health care, and health policies (1). System dynamics models can help us understand the complex relationships between prevention measures and chronic diseases. System dynamics modeling is a system simulation method that describes the structure and dynamics of complex systems (2). Systems are interconnected to produce their own pattern of behavior over time and focus on the whole problem, its structure, and its dynamics rather than its parts and its static state. The prevention of chronic diseases involves many variables and stakeholders. These variables form a highly complex system with complex dynamic changes and interactions. When we implement a seemingly ideal solution to a problem, that solution often results in failure or more serious consequences, because dynamic complexity leads to policy resistance (2,3). Policy resistance means that implementing prevention measures can produce outcomes opposite to those expected. For example, antibiotics can cure bacterial infections, but antibiotic abuse stimulates the production of drug-resistant bacteria (2). That is what Sterman (2) meant when he said, “today’s interventions have become tomorrow’s problems.” In general, the behavior of complex systems is often counterintuitive, which means it can lead to unexpected consequences (2–4).

System dynamics models can help us establish a holistic concept and analyze the prevention of chronic diseases as a whole. The steps for establishing system dynamics models are 1) problem definition, 2) development of a conceptual model, 3) development of a quantitative model, 4) validation and testing, and 5) policy simulation. In the process of developing the model, stakeholders continue to gather qualitative and quantitative evidence to optimize the model. Homer and Hirsch (4) propose that the prevention of chronic diseases mainly focuses on 2 parts: upstream prevention and downstream prevention. Upstream prevention focuses on preventing the occurrence of diseases, and its focus is on people without chronic diseases. Downstream prevention refers to the prevention of complications of chronic diseases, and focuses on people with chronic diseases. Therefore, our study discussed and analyzed upstream and downstream prevention according to chronic disease prevention. Our objective was to systematically evaluate and describe the potential short- and long-term effects by using system dynamics models to model the upstream and downstream prevention of chronic diseases. We theorized that examined evidence could provide health care workers with prevention measures for people with chronic diseases.

Top

Methods

We developed a causal loop diagram, a stock-flow diagram, and a hybrid diagram by using Vensim PLE software (Ventana Systems, Inc) to provide examples of common system dynamics modeling conventions (Figure 1). The causal loop diagram is the first stage of the conceptual model and is a dynamic feedback process (5). After a comprehensive analysis of the identified problems, stakeholders establish a causal loop diagram to qualitatively show the causal relationship between variables. In our example, population and births form a reinforcing feedback (loop R1, Figure 1A). Changes generated by the population will affect births and feedback to the population. Similarly, the population and deaths form a balancing feedback, loop B1. The causal loop diagram is widely used in the initial stage of modeling, but it is not necessary for experienced modelers. The stock-flow diagram (Figure 1B) is developed from the causal loop diagram and describes stock variables (cumulative, indicating system status), flow variables (indicating stock changes), auxiliary variables (to help express other information), and constant variables (constant values). We first determine the main relationship between stock variables (population), flow variables (birth and death), auxiliary variables, and constant variables (birth rate, mortality rate). Then, the lookup function is used to determine the nonlinear relationship between variables, and the parameters of various variables are estimated and assigned. The hybrid diagram (Figure 1C) combines the causal loop diagram with the stock-flow diagram, which not only expresses the important stock and flow variables, but also maintains the simplicity of the causal loop diagram.

Prevalence of obesity in the US among the All of Us Research Program cohort with a calculated body mass index (kg/m2) of 30 or above, based on physical measurement data. Prevalence estimates were not calculated for states with fewer than 100 participants.

Return to your place in the text

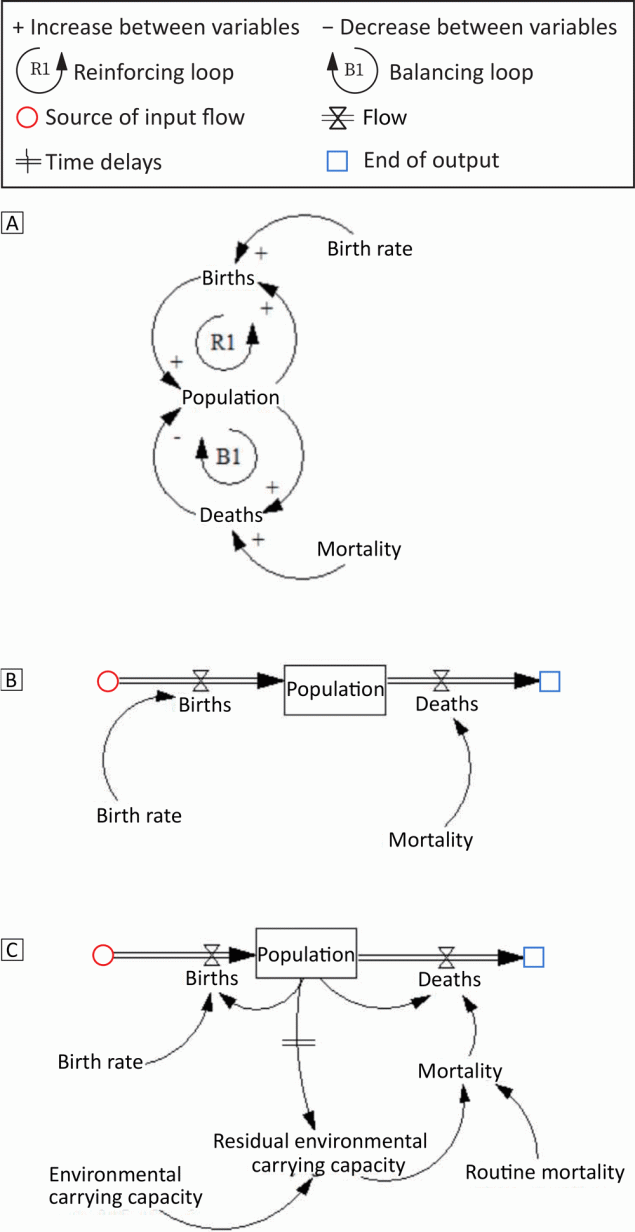

Figure 1.

System dynamics model in 3 parts showing the convergence of births and deaths to create population. The variables are linked by a causal chain with positive (+) and negative (–) polarity. The positive sign indicates that when variable A increases, variable B also increases; the negative sign indicates that when variable A increases, variable B decreases. The positive and negative signs represent either increase or decrease, not the proportional relationship between variables. Part A is a causal loop diagram that shows a reinforcing loop for increases in births and a balancing loop for deaths. Part B is a stock-flow diagram illustrating the convergence of birth rate and mortality rate, which equals population. Part C is a hybrid diagram that incorporates the effect of environmental carrying capacity, residual environmental carrying capacity, and routine mortality on births and deaths to result in population. [A text version of this figure is available.]

Time delays are an important concept in system dynamics models, which means that the prevention measures we implement will not have an immediate effect. For example, time delays can occur between population and residual environmental carrying capacity (Figure 1C). Time delays in the feedback loop will cause system instability, lead to overshoot or oscillation, and reduce our ability to learn and accumulate experience (2,3).

Data sources

We conducted our systematic review in accordance with the guidelines of PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analysis) 2020 (6). PubMed, Scopus, Embase, and Web of Science databases, from 2000 to the present, were searched initially in January 2020 and searched again in February 2021 for potentially relevant research published in English. We conducted the search using medical subject headings (MeSH terms) and free-text words. The search strategy was “noncommunicable diseases” OR “chronic disease” OR “chronic illness” OR “chronic disease [MeSH Terms]” OR “noncommunicable diseases [MeSH Terms]” AND “system dynamics” OR “computer simulation [MeSH Terms]” OR “dynamics, nonlinear [MeSH Terms].”

Study selection

The inclusion criteria for our study were 1) original studies or study protocols published in the database searched, 2) studies reporting chronic disease prevention based on system dynamics models, 3) studies including human participants, and 4) studies published in English. The exclusion criteria were 1) abstracts and conference proceedings and 2) studies investigating nonchronic diseases, such as emergency care, epidemic prediction, and vaccination.

Two researchers (Y.W., B.H.) formulated a comprehensive search strategy to conduct the literature search. Duplicates were independently removed by using EndNote reference manager (Clarivate), and abstracts and full texts were reviewed to remove ineligible studies. Finally, the identified studies were retrieved and aggregated for review during the preliminary search in January 2020 and the repeated search in February 2021 (Figure 2).

Prevalence of severe obesity in the All of Us Research Program, calculated BMI of 35 kg/m2 or above, based on physical measurement data. Prevalence estimates were not calculated for states with fewer than 100 participants.

Return to your place in the text

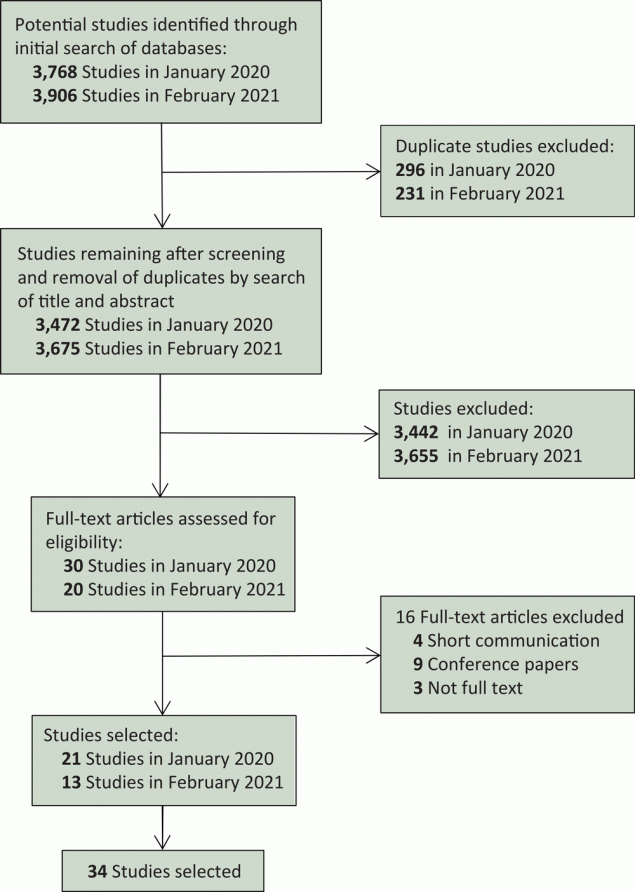

Figure 2.

Selection process for study of system dynamics models in chronic disease prevention, January 2000 to February 2021. Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) diagram showing research study identification and selection process. [A text version of the figure is available.]

Data extraction

We developed a data form to collect the following information: study authors and year of study, country where the research was conducted, study objective, type of upstream prevention, and type of downstream prevention (Table 1). Two researchers independently extracted data from the selected articles. Differing opinions were resolved though discussion. In addition, we used the assessment criteria from a previous study (7) to evaluate the quality of the literature. Our 8 quality criteria were 1) presenting a clear objective; 2) presenting clear scenarios and interventions; 3) presenting clear outcome variables by graphs, charts, or tables; 4) describing the development of a system dynamics model framework or presenting a detailed model framework; 5) presenting and explaining model parameters; 6) improving the quality of data by using stakeholders’ engagement, surveys, interviews, and databases; 7) validating models (validation used 4 methods: sensitivity testing parameters that the model is highly sensitive to and comparing them with the real world; model data calibration to compare model data with the real world; a structural test to compare mathematical formulas or logical relationships in the model with the real world; and a behavior pattern test to evaluate the accuracy of model prediction to exchange results and achieve goals (8)); and 8) presenting clear results.

Because of the differences in evaluation indicators involved in qualitative and quantitative models, we used only 5 of our 8 quality criteria (criteria 1, 4, 5, 6, and 8) to assess the quality of qualitative research. We used all 8 criteria to evaluate quantitative research. The score for each item ranged from 0 to 2 (0 = not mentioned, 1 = mentioned, and 2 = fully described). Therefore, the total scores for qualitative and quantitative research were 10 and 16 points, respectively. To further assess the quality, we converted the research quality score into a percentage. The percentage was the study scores divided by the total point score for that category (10 for qualitative, 16 for quantitative) and multiplied by 100% (Table 2). The quality assessment criteria of the reviewed studies were as follows: good quality, >80%; medium quality, 70%–80%; poor quality, 65%–70%; and very poor quality, <65% (7). We omitted articles of poor and very poor quality.

Top

Results

Literature search

In our search for studies to include in our systematic review, we noted that most of the articles about system dynamics models of chronic disease prevention were from the US (n = 25). Other countries, including Singapore, Japan, Australia, Canada, Colombia, the Caribbean Community, and India, also carried out studies in this area (Table 1).

Generally, qualitative research uses a causal loop diagram to analyze the causality of variables in chronic disease prevention. A total of 7 studies used causal loop diagrams to analyze the causal relationship between diabetes, obesity, chronic kidney disease, and predictive measures (9–15). We developed a stock-flow diagram (Figure 1B) and a hybrid diagram with variable functions and parameters (Figure 1C) based on the causal loop diagram to predict the effect of various prevention measures on chronic diseases. Of the 27 studies that used quantitative models, only 3 studies established stock-flow diagrams (16–18). The hybrid diagram combined the advantages of the causal loop diagram and the stock-flow diagram, so it was used in the final simulation of the 27 quantitative studies.

Upstream prevention

We examined the articles involving upstream prevention measures in detail. Among them, lifestyle approaches (balanced diet, moderate exercise, tobacco control, and mental health) were the most simulated prevention measures (n = 15, 44.1%) (9–12,19–29). Through simulation, the researchers found that lifestyle modification can reduce the incidence of chronic diseases, premature death, and medical costs among people with chronic disease, but the effect of lifestyle simulation prevention measures was more powerful in the long term (19–21,23–28). For example, the tobacco control program in Communities Putting Prevention to Work could prevent 45 million premature deaths and save $750 million in medical costs (20). Four qualitative studies used a causal loop diagram to analyze the causal relationship between lifestyles and chronic diseases (9–12). Researchers found that chronic disease screening showed a shifting of the burden. That is, when we took fundamental interventions such as lifestyles, there was no immediate effect from time delays in achieving the effect. People would turn their attention to the treatment of chronic diseases because treatment could quickly reduce mortality and complications.

Social factors such as employment, socioeconomic status, and community cohesion (n = 8, 23.5%) are also important aspects that affect chronic diseases (12,13,24,25,27,30–32). When the employment rate increased, the prevalence of chronic diseases was reduced to varying degrees (31). In addition, Chen et al (30) suggested that work stress or limited personal time would lead to an unhealthy lifestyle and increase the prevalence of obesity. Two qualitative studies concluded that primary health care was important for preventing chronic diseases, and that health policies, care quality, and cost were important factors affecting patient participation in primary care (12,13). Four quantitative studies found that effective healthcare measures can reduce the risk of chronic diseases, but cannot reduce cost (24,25,27,32).

Obesity is one of the important drivers of cardiovascular disease (CVD) and diabetes (n = 8, 23.5%) (9,16,21,22,25,33–35). Guariguata et al (9) proposed establishing qualitative models of diabetes through in-depth interviews with stakeholders in the Caribbean Community to determine the impact of obesity on diabetes prevalence. Simulation of quantitative system dynamics models showed that when the incidence of obesity was reduced, the incidence of diabetes or cardiovascular events was significantly reduced (25,33). Researchers found that prediabetes patients were still likely to develop diabetes after a period of preventive management, a so-called “backup” phenomenon (21,34). When the obesity rate decreased, no backup phenomena occurred, and more medical expenses were saved (21,34). Fallan-Fini et al (22) calculated the energy intake of different populations through system dynamics models and found that people with obesity had excessive energy (ie, no energy gap), which indicated that obesity would worsen further. Two quantitative studies (16,35) found that when the prevalence of diabetes and hypertension decreased, the morbidity and mortality from cardiovascular events and the prevalence of diabetic nephropathy decreased.

Downstream prevention

Downstream prevention consists of clinical treatment and care of people with chronic diseases (n = 19 articles [55.9%]) (9,10,13–15,17,18,23,24,26,27,29,31,33,34,36–39). Some studies found that clinical treatment and care of people with chronic diseases could significantly reduce mortality. For example, we can achieve this long-term effect, mortality reduction, by improving the proportion of disease control and the affordability of drugs (10). Several qualitative models showed that patients with chronic diseases received continuous care, which was reflected in the improvement of health care quality and availability (10,13–15). Some studies reported that continuous care and access to health care after illness were important measures to reduce the recurrence of chronic diseases, mortality, and cost of care (18,23,26,37,38). However, clinical treatment can rapidly reduce mortality from chronic diseases without reducing their prevalence because of increased patient survival time (17,29,33,34).

Homer and Hirsch (4) and Homer et al (40) established system dynamics models to analyze the difference between upstream prevention and downstream prevention (n = 2 articles [5.9%]). The model simulation showed that when upstream prevention (lifestyles, social factors, and obesity) increased, the incidence of chronic diseases decreased. When people see the effectiveness of upstream prevention, more resources will be devoted to it. However, when downstream prevention increased, the mortality caused by chronic diseases decreased significantly. Because many chronic diseases are not curable, the reduction of mortality leads to more and more patients with chronic diseases living longer, which leads to the need for more resources for downstream prevention. Similarly, we also need to consider the issue of medical costs. Although clinical treatment of chronic disease showed significant medical cost savings in the short term, it was not beneficial in the long term (41).

Literature quality evaluation

The quality of all reviewed articles met our criteria, so none was dropped. Of the 34 articles reviewed, we found 30 good quality studies (88.2%), 3 medium quality studies (8.8%) and 1 poor quality study (2.9%) (Table 2). Seven articles used the Prevention Impacts Simulation Model (PRISM) but did not describe it in detail (19–21,23,24,27,29). PRISM is a that is used to simulate the effects of cardiovascular events and other chronic disease prevention measures. Nine articles conducted stakeholder interviews and used public data to ensure the quality of their studies (18,19,24,25,27,31,36–38). In 8 studies, only stakeholder or focus group interviews were conducted to collect data (10,11,13–15,28,32,39). Eleven articles carried out only sensitivity analysis or model data calibration for model validation and did not conduct a structural test and a behavior pattern test (17,26,28–30,32,36,37,39–41).

Top

Discussion

Our review evaluated the potential impact of system dynamics models on the upstream prevention (lifestyle, social factors, obesity) and downstream prevention (clinical treatment and intervention) of chronic diseases. System dynamics models can help us find the different results we expect from upstream prevention and downstream prevention, providing insights into prevention. We found that most models were created in developed countries such as the US. Chronic diseases were a huge burden in low- and middle-income countries, which showed an important research gap (42,43). Through systematic review, we found that the upstream and downstream prevention of chronic diseases had their own advantages and disadvantages. First, because of time delays in observing a desired outcome, the investment in upstream prevention (eg, lifestyle intervention, weight control) does not have an immediate effect, so more investment is diverted to downstream prevention (ie, preventing complications). When people focused on downstream prevention, the complications and deaths from chronic diseases were significantly reduced. However, limited medical resources make it impossible to prevent complications in patients with chronic diseases, and the death toll may rebound. With the increase of medical resources for upstream prevention, the incidence of chronic diseases and mortality from complications will continue to decline (4). However, the upstream prevention of chronic diseases takes a long time to exhibit the desired effect. For example, studies have shown that the clinical treatment of diabetes can reduce its mortality but cannot reduce its incidence. The reduction of the obesity rate would be more beneficial to reduce the incidence of diabetes (34). Therefore, the upstream and downstream prevention of chronic diseases has advantages and disadvantages, and the actual situation should be comprehensively considered to implement interventions.

Chronic disease prevention is a dynamic and complex process. Its complexity and time delays prevented us from discovering the consequences of prevention measures, which often led to unexpected results (3). System dynamics models are effective tools to help us transform system thinking into reality. For example, the most typical hybrid diagram is PRISM, which is a system dynamics model of CVD in the US (https://prism-simulation.cdc.gov/app/cdc/prism/#/resources). It can help health care workers estimate the impact of various prevention measures on prevalence, morbidity, and mortality from CVD, and the cost-effectiveness of such measures. Seven of the studies that we selected used PRISM to assess the short- and long-term effects of prevention measures on CVD or other chronic diseases to prioritize prevention measures (19–21,23,24,27,29). When the symptoms of the problem are the focus, without considering the root causes (eg, downstream prevention does not reduce the prevalence of chronic diseases), prevention alone cannot solve the problem. Instead, it could lead to more serious problems. Therefore, we can use system dynamics models to simulate the short- and long-term results of chronic disease prevention measures and choose the best measure for chronic disease prevention.

The establishment of system dynamics models is an iterative process, which deepens the understanding of chronic disease prevention through continuous learning. It can also help us understand the potential causal relationship between hidden assumptions and variables to better prevent chronic diseases. System dynamics models can help us understand the impact of feedback and time delays on chronic disease prevention and provide us with additional insights compared with traditional methods such as regression models. System dynamics models are also widely used in other aspects of the medical field, such as the prediction of health personnel needs (44). Not only can these models help rid us of local thinking (focusing on the part, not the whole), short-sighted thinking (focusing on the present, not the future), and phenomenal thinking (focusing on the surface rather than the essence) (45), but they can also help us capture the dynamic interactions of all aspects of chronic disease prevention.

Our study had limitations. First, we searched only 4 databases: PubMed, Scopus, Embase, and Web of Science. Other databases were not searched, which may have led to literature omission. In the future, we need to search more databases to obtain more evidence to explore the application of system dynamics models in chronic disease prevention. Second, we only evaluated the upstream and downstream prevention of chronic diseases, which may lead to incomplete evaluation. We need to explore other aspects of chronic disease research to enrich the results. Finally, the replicability of the system dynamics models was poor. We can set the model online or provide more raw data to solve the problem (ie, researchers can set the model to be available online, including variable equations, for readers to download for simulation and prediction, rather than obtaining only the schematic diagram of the model). Although our study had some limitations, we thoroughly reviewed the application of system dynamics models in the prevention of chronic diseases. The models can identify the relationship between upstream prevention and downstream prevention, which can provide some insights into the prevention of chronic diseases.

Our results showed that downstream prevention can greatly reduce mortality from chronic disease complications but cannot reduce the prevalence of chronic diseases. Upstream prevention, especially primary prevention, can greatly reduce the prevalence of chronic diseases. However, because of time delays, upstream prevention needs more time to show effectiveness, resulting in the resources for upstream prevention being preempted by downstream prevention. Therefore, we need to be cautious about the allocation of resources for preventing and managing chronic diseases. System dynamics models can connect different stakeholders who prevent, control, and treat chronic disease; help to understand the relationship between complex disease prevention measures; and provide insights for policy makers in chronic disease prevention.

Top

Acknowledgments

The first 2 authors contributed equally to this article. The authors have no competing interests to declare. This study was approved by the ethics committee of Qingdao University Affiliated Hospital (No: QYFYWZLL25890). This study was supported by Project of Research Planning Foundation on Humanities and Social Sciences of the Ministry of Education (No: 20YJAZH144). No copyrighted material was used in this article.

Top

Author Information

Corresponding Author: Xiuli Zhu, RN, PhD, School of Nursing, Medical College, Qingdao University, No. 15, NingDe Rd, Shinan District, Qingdao, 266071, China. Telephone: 15820022927. Email: 15820022927@163.com.

Author Affiliations: 1School of Nursing, Medical College, Qingdao University, Qingdao, China. 2Department of Thoracic Surgery, Qingdao Municipal Hospital, Qingdao, China. 3Department of Obstetrics and Gynecology, Affiliated Hospital of Qingdao University, Qingdao, China.

Top

References

  1. World Health Organization. Total NCD mortality. 2016. https://www.who.int/data/gho/data/themes/topics/indicator-groups/indicator-group-details/GHO/total-ncd-mortality. Accessed March 1, 2020.
  2. Sterman JD. System dynamics: systems thinking and modeling for a complex world. Boston (MA): Massachusetts Institute of Technology; 2002. https://dspace.mit.edu/handle/1721.1/102741. Accessed September 30, 2021.
  3. Sterman JD. Learning from evidence in a complex world. Am J Public Health 2006;96(3):505–14. CrossRef PubMed
  4. Homer JB, Hirsch GB. System dynamics modeling for public health: background and opportunities. Am J Public Health 2006;96(3):452–8. CrossRef PubMed
  5. Wang Q. System dynamics. Shanghai (CN): Shanghai University of Finance and Economics Press; 2009.
  6. Page MJ, McKenzie JE, Bossuyt PM, Boutron I, Hoffmann TC, Mulrow CD et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. BMJ 2021;372(71):n71. CrossRef PubMed
  7. Davahli MR, Karwowski W, Taiar R. A system dynamics simulation applied to health care: a systematic review. Int J Environ Res Public Health 2020;17(16):5741. CrossRef PubMed
  8. Barlas Y. Formal aspects of model validity and validation in system dynamics. Syst Dyn Rev 1996;12(3):183–210. CrossRef
  9. Guariguata L, Guell C, Samuels TA, Rouwette EA, Woodcock J, Hambleton IR et al. Systems science for Caribbean health: the development and piloting of a model for guiding policy on diabetes in the Caribbean. Health Res Policy Syst 2016;14(1):79. CrossRef PubMed
  10. Ansah JP, Islam AM, Koh V, Ly V, Kol H, Matchar DB et al. Systems modelling as an approach for understanding and building consensus on non-communicable diseases (NCD) management in Cambodia. BMC Health Serv Res 2019;19(1):2. CrossRef PubMed
  11. Allender S, Owen B, Kuhlberg J, Lowe J, Nagorcka-Smith P, Whelan J et al. A community based systems diagram of obesity causes. PLoS One 2015;10(7):e0129683. CrossRef PubMed
  12. Homer J, Milstein B, Wile K, Pratibhu P, Farris R, Orenstein DR. Modeling the local dynamics of cardiovascular health: risk factors, context, and capacity. Prev Chronic Dis 2008;5(2):A63. PubMed
  13. Ansah JP, Matchar DB, Koh V, Schoenenberger L. Mapping the dynamic complexity of chronic disease care in Singapore: using group model building in knowledge elicitation. Syst Res Behav Sci 2018;35(6):759–75. CrossRef
  14. Lounsbury DW, Hirsch GB, Vega C, Schwartz CE. Understanding social forces involved in diabetes outcomes: a systems science approach to quality-of-life research. Qual Life Res 2014;23(3):959–69. CrossRef PubMed
  15. Kang H, Nembhard HB, Curry W, Ghahramani N, Hwang W. A systems thinking approach to prospective planning of interventions for chronic kidney disease care. Health Syst (Basingstoke) 2017;6(2):130–47. CrossRef
  16. Sugiyama T, Goryoda S, Inoue K, Sugiyama-Ihana N, Nishi N. Construction of a simulation model and evaluation of the effect of potential interventions on the incidence of diabetes and initiation of dialysis due to diabetic nephropathy in Japan. BMC Health Serv Res 2017;17(1):833. CrossRef PubMed
  17. Kang H, Nembhard HB, Ghahramani N, Curry W. A system dynamics approach to planning and evaluating interventions for chronic disease management. J Oper Res Soc 2018;69(7):987–1005. CrossRef
  18. Vanderby SA, Carter MW, Noseworthy T, Marshall DA. Modelling the complete continuum of care using system dynamics: the case of osteoarthritis in Alberta. J Simul 2015;9(2):156–69. CrossRef
  19. Kuo T, Robles B, Trogdon JG, Ferencik R, Simon PA, Fielding JE. Framing the local context and estimating the health impact of CPPW obesity prevention strategies in Los Angeles County, 2010–2012. J Public Health Manag Pract 2016;22(4):360–9. CrossRef PubMed
  20. Honeycutt A, Bradley C, Khavjou O, Yarnoff B, Soler R, Orenstein D. Simulated impacts and potential cost effectiveness of Communities Putting Prevention to Work: tobacco control interventions in 21 U.S. communities, 2010–2020. Prev Med 2019;120:100–6. CrossRef PubMed
  21. Soler R, Orenstein D, Honeycutt A, Bradley C, Trogdon J, Kent CK et al.; Communities Putting Prevention to Work Leadership Team. Community-based interventions to decrease obesity and tobacco exposure and reduce health care costs: outcome estimates from Communities Putting Prevention to Work for 2010–2020. Prev Chronic Dis 2016;13:E47. CrossRef PubMed
  22. Fallah-Fini S, Rahmandad H, Huang TT, Bures RM, Glass TA. Modeling US adult obesity trends: a system dynamics model for estimating energy imbalance gap. Am J Public Health 2014;104(7):1230–9. CrossRef PubMed
  23. Honeycutt AA, Wile K, Dove C, Hawkins J, Orenstein D. Strategic planning for chronic disease prevention in rural America: looking through a PRISM lens. J Public Health Manag Pract 2015;21(4):392–9. CrossRef PubMed
  24. Homer J, Wile K, Yarnoff B, Trogdon JG, Hirsch G, Cooper L et al. Using simulation to compare established and emerging interventions to reduce cardiovascular disease risk in the United States. Prev Chronic Dis 2014;11:E195. CrossRef PubMed
  25. Homer J, Milstein B, Wile K, Trogdon J, Huang P, Labarthe D et al. Simulating and evaluating local interventions to improve cardiovascular health. Prev Chronic Dis 2010;7(1):A18. PubMed
  26. Hirsch G, Homer J, Evans E, Zielinski A. A system dynamics model for planning cardiovascular disease interventions. Am J Public Health 2010;100(4):616–22. CrossRef PubMed
  27. Hirsch G, Homer J, Trogdon J, Wile K, Orenstein D. Using simulation to compare 4 categories of intervention for reducing cardiovascular disease risks. Am J Public Health 2014;104(7):1187–95. CrossRef PubMed
  28. Loyo HK, Batcher C, Wile K, Huang P, Orenstein D, Milstein B. From model to action: using a system dynamics model of chronic disease risks to align community action. Health Promot Pract 2013;14(1):53–61. CrossRef PubMed
  29. Yarnoff B, Bradley C, Honeycutt AA, Soler RE, Orenstein D. Estimating the relative impact of clinical and preventive community-based interventions: an example based on the Community Transformation grant program. Prev Chronic Dis 2019;16:E87. CrossRef PubMed
  30. Chen HJ, Xue H, Liu S, Huang TTK, Wang YC, Wang Y. Obesity trend in the United States and economic intervention options to change it: a simulation study linking ecological epidemiology and system dynamics modeling. Public Health 2018;161:20–8. CrossRef PubMed
  31. Brittin J, Araz OM, Nam Y, Huang TT-K. A system dynamics model to simulate sustainable interventions on chronic disease outcomes in an urban community. J Simul 2015;9(2):140–55. CrossRef
  32. Apostolopoulos Y, Lemke MK, Hosseinichimeh N, Harvey IS, Lich KH, Brown J. Embracing causal complexity in health disparities: metabolic syndemics and structural prevention in rural minority communities. Prev Sci 2018;19(8):1019–29. CrossRef PubMed
  33. Milstein B, Jones A, Homer JB, Murphy D, Essien J, Seville D. Charting plausible futures for diabetes prevalence in the United States: a role for system dynamics simulation modeling. Prev Chronic Dis 2007;4(3):A52. PubMed
  34. Jones AP, Homer JB, Murphy DL, Essien JD, Milstein B, Seville DA. Understanding diabetes population dynamics through simulation modeling and experimentation. Am J Public Health 2006;96(3):488–94. CrossRef PubMed
  35. Ansah JP, Inn RLH, Ahmad S. An evaluation of the impact of aggressive hypertension, diabetes and smoking cessation management on CVD outcomes at the population level: a dynamic simulation analysis. BMC Public Health 2019;19(1):1105. CrossRef PubMed
  36. Cruz JP, Guerrero Rueda WJ, Pérez ER, Lizarazo Walteros DL, Rico Ardila PC, Castillo AM et al. Kidney procurement system in Colombia: a system dynamics approach. Revista Gerencia y Politicas de Salud 2019;18(36):1–26. CrossRef
  37. Homer J, Hirsch G, Minniti M, Pierson M. Models for collaboration: how system dynamics helped a community organize cost-effective care for chronic illness. Syst Dyn Rev 2004;20(3):199–222. CrossRef
  38. Diaz R, Behr J, Kumar S, Britton B. Modeling chronic disease patient flows diverted from emergency departments to patient-centered medical homes. IIE Trans Healthc Syst Eng 2015;5(4):268–85. CrossRef PubMed
  39. Mishra V, Samuel C, Sharma SK. System modeling for forecasting of diabetes prevalence. Indian Journal of Public Health Research and Development 2018;9(7):139–44. https://www.researchgate.net/publication/326265772.
  40. Homer J, Hirsch G, Milstein B. Chronic illness in a complex health economy: the perils and promises of downstream and upstream reforms. Syst Dyn Rev 2007;23(2-3):313–43. CrossRef
  41. Diaz R, Behr JG, Britton BS. Estimating cost adjustments required to accomplish target savings in chronic disease management interventions: a simulation study. Simulation 2015;91(7):599–614. CrossRef
  42. Forrester JW. System dynamics — the next fifty years. Syst Dyn Rev 2007;23(2-3):359–70. CrossRef
  43. Huang K, Yang T, Xu J, Yang L, Zhao J, Zhang X et al.; China Pulmonary Health (CPH) Study Group. Prevalence, risk factors, and management of asthma in China: a national cross-sectional study. Lancet 2019;394(10196):407–18. CrossRef PubMed
  44. Ansah JP, Koh V, De Korne D, Jayabaskar T, Matchar DB, Quek D. Modeling manpower requirement for a changing population health needs: the case of ophthalmic nurses and allied health ophthalmic professionals. Health Policy Technol 2019;8(3):282–95. CrossRef
  45. Massive open online course in Chinese universities. Systematic thinking and systematic decision-making. [Chinese] https://www.icourse163.org/learn/CUFE-1003481 004?tid=1463513462#/learn/content?type=detail&id=1241429843&cid=1263859514. Accessed July 1, 2021.

Top

Tables

Return to your place in the text

Table 1. Summary of Articles Reviewed, Systematic Review of Applications of System Dynamics Models in Chronic Disease Prevention, January 2000–February 2021
Author and Year Country Objective Predictors
Upstream Preventiona Downstream Preventionb
Homer et al, 2006 (4) US Explore the relationship between sick population and resource utilization
  • Upstream prevention of disease
  • Downstream clinical treatment
Guariguata et al, 2016 (9) Caribbean Community Develop a system dynamics model to guide diabetes prevention and control policies
  • Obesity management
  • Physical inactivity
  • Diet
Ansah et al, 2019 (10) Singapore Explore and reach a consensus on the management of chronic diseases
  • Population ageing
  • Tobacco use
  • Unhealthy diets
  • Physical inactivity
  • Medicine
  • Cost of treatment
  • Access to clinics
  • Quality of care
Allender et al, 2015 (11) Australia Establish a causal loop diagram of factors affecting children’s obesity in the community through the group model building
  • Social influences
  • Fast food
  • Junk food
  • Physical activity
Homer et al, 2008 (12) US Develop a system dynamics model to predict the risk factors of CVD
  • Primary care
  • Healthy food option
  • Physical activity
  • Smoking regulation
  • Reduce chronic stress
Ansah et al, 2018 (13) Singapore Describe the dynamics complexity of chronic disease care
  • Primary health care
  • Clinical care
  • Outpatient care
Lounsbury et al, 2014 (14) US To explain the effectiveness of system dynamics in promoting the quality of life of chronic disease
  • Qualitative research
Kang et al, 2016 (15) US To investigate how systematic thinking supports nursing intervention decision-making in the management of CKD
  • Physician education
  • Care coordination
  • Care manager education
Sugiyama et al, 2017 (16) Japan Predict the number of people with diabetes and the number of people who need dialysis because of diabetic nephropathy
  • Diabetes prevention and management
  • End-stage renal disease prevention
Kang et al, 2017 (17) US To study the influence of system dynamics method on nursing intervention of CKD patients
  • Physician education
  • Care coordination
  • Care manager education
Vanderby et al, 2015 (18) Canada Simulation of complete continuous care
  • Continuous care
Kuo et al, 2016 (19) US The Prevention Impacts Simulation Model (PRISM) was used to simulate population health outcomes
  • Healthy eating
  • Active living
Honeycutt et al, 2019 (20) US Estimate the potential impact of Communities Putting Prevention to Work tobacco intervention on avoiding deaths and medical costs by 2020
  • Tobacco control
  • Secondhand smoke exposure
Soler et al, 2016 (21) US Analyze the short-term and potential long-term benefits of Communities Putting Prevention to Work
  • Obesity and tobacco use
  • Secondhand smoke exposure
Fallah-Fini et al, 2014 (22) US Using system dynamics model to quantify the energy imbalance gap leading to obesity in American adults
  • Energy estimate
Honeycutt et al, 2015 (23) US Reported on results of the strategy to reduce the impact of chronic diseases on communities
  • Behavioral support
  • Taxes and regulation
  • Health promotion and access
  • Clinical
Homer et al, 2014 (24) US Compare the potential of emerging interventions and existing interventions to reduce cardiovascular risk factors
  • Air
  • Lifestyle
  • Care
  • Air: post-CVD
  • Lifestyle: post-CVD
  • Care: post-CVD
Homer et al, 2010 (25) US Used the system dynamics model to evaluate risk factors for the management of CVD
  • Care/air/lifestyle
  • Weight-loss and mental health services
Hirsch et al, 2010 (26) US The factors leading to cardiovascular events for the first time were simulated and modeled
  • Lifestyle and environmental
  • Mental and medical health care
  • Mental and medical health care: post-CVD
Hirsch et al, 2014 (27) US The Prevention Impacts Simulation Model (PRISM) predicts the different consequences of interventions to reduce the risk of cardiovascular disease
  • Behavioral support
  • Health promotion and access
  • Tobacco taxes and regulation
  • Clinical: post-CVD
  • Behavioral support: post-CVD
Loyo et al, 2013 (28) US Coordination of community prevention efforts using a system dynamics model for CVD risk
  • Air (tobacco control air pollution reduction)
  • Comprehensive nursing
  • Improve lifestyle
Yarnoff et al, 2019 (29) US Investigate the long-term effect of clinical and community intervention
  • Community intervention
  • Clinical intervention
Chen et al, 2018 (30) US Simulate and predict the potential impact of socio-economic programs on obesity rates
  • Employment rate
  • Family income level
Brittin et al, 2015 (31) US Simulate the potential of social factors to prevent chronic disease in low-income urban communities
  • Social factors such as income and employment, neighborhood attraction, and social cohesion
  • Manage cases of chronic disease effectively
Apostolopoulos et al, 2018 (32) US Explore the factors that affect the health of Black Americans
  • Unemployment
  • Limited access to health care
  • Socioeconomic inequality
Milstein et al, 2007 (33) US Explain the trend of diabetes prevalence in US and predict the trend before 2010
  • Glycemic screening
  • Reduce obesity rate
  • Prediabetes management
  • Diabetes management
Jones et al, 2006 (34) US Explain the growth of diabetes and predict future growth
  • Reduce the rate of obesity
  • Enhance clinical management of diabetes and prediabetes
Ansah et al, 2019 (35) Singapore Evaluate the effects of hypertension and diabetes management and smoking cessation intervention on cardiovascular event
  • Diabetes management
  • Hypertension management
  • Smoking cessation
Cruz et al, 2019 (36) Colombia Used the causal loop diagram to analyze the kidney procurement system in Colombia
  • Kidney donation
Homer et al, 2004 (37) US Used the system dynamics model to simulate the cost-effective results of diabetes and heart failure
  • Screening and prevention education for diabetes
  • Disease clinical care
  • Risk management for heart failure
Diaz et al, 2015 (38) US A simulated intervention study on triage of patients with chronic diseases from the emergency department
  • Insurance coverage
  • Visit rate
Mishra et al, 2018 (39) India Using system dynamics model to predict the increase of prevalence rate of diabetes mellitus
  • Upstream prevention
  • Downstream treatment
Homer et al, 2007 (40) US To explain the rising prevalence of chronic disease and responses to it
  • Upstream prevention
  • Downstream care
Diaz et al, 2015 (41) US Simulation of the cost saving of intervention in a well-defined population
  • Chronic disease management cost-effectiveness

Abbreviations: —, not applicable; CKD, chronic kidney disease; CVD, cardiovascular disease.
a Upstream prevention measures are lifestyle (eg, tobacco control, balanced diet, mental health, moderate exercise), obesity prevention, and social factors.
b Downstream prevention measures are clinical treatment and care of chronic diseases.

Return to your place in the text

Table 2. Quality Assessment of Reviewed Articles, Systematic Review of Applications of System Dynamics Models in Chronic Disease Prevention, January 2000–February 2021a
Author, Year, Typeb Quality Criteria Scorec Score Study Scored, %
1 2 3 4 5 6 7 8
Homer et al, 2006, quantitative (4) 2 2 2 2 1 0 0 2 11 68.8
Guariguata et al, 2016, qualitative (9) 2 2 1 1 2 8 80.0
Ansah et al, 2019, qualitative (10) 2 2 2 1 2 9 90.0
Allender et al, 2015, qualitative (11) 2 2 2 1 2 9 90.0
Homer et al, 2008, qualitative (12) 2 2 1 1 2 8 80.0
Ansah et al, 2018, qualitative (13) 2 2 2 1 2 9 90.0
Lounsbury et al, 2014, qualitative (14) 2 2 2 1 2 9 90.0
Kang et al, 2016, qualitative (15) 2 2 2 1 2 9 90.0
Sugiyama et al, 2017, quantitative (16) 2 2 2 2 2 1 2 2 15 93.8
Kang et al, 2017, quantitative (17) 2 2 2 2 2 1 1 2 14 87.5
Vanderby et al, 2015, quantitative (18) 2 2 2 2 2 2 2 2 16 100.0
Kuo et al, 2016, quantitative (19) 2 2 2 1 2 2 2 2 15 93.9
Honeycutt et al, 2019, quantitative (20) 2 2 2 1 2 1 2 2 14 87.5
Soler et al, 2016, quantitative (21) 2 2 2 1 1 1 2 2 13 81.3
Fallah-Fini et al, 2014, quantitative (22) 2 2 2 2 2 1 2 2 15 93.8
Honeycutt et al, 2015, quantitative (23) 2 2 2 1 2 1 2 2 14 87.5
Homer et al, 2014, quantitative (24) 2 2 2 1 2 2 2 2 15 93.8
Homer et al, 2010, quantitative (25) 2 2 2 2 2 2 2 2 16 100.0
Hirsch et al, 2010, quantitative (26) 2 2 2 2 2 1 1 2 14 87.5
Hirsch et al, 2014, quantitative (27) 2 2 2 1 2 2 2 2 15 93.8
Loyo et al, 2013, quantitative (28) 2 2 2 2 2 2 1 2 15 93.8
Yarnoff et al, 2019, quantitative (29) 2 2 2 2 2 1 1 2 14 87.5
Chen et al, 2018, quantitative (30) 2 2 2 2 2 1 1 2 14 87.5
Brittin et al, 2015, quantitative (31) 2 2 2 2 2 2 2 2 16 100.0
Apostolopoulos et al, 2018, quantitative (32) 2 2 2 2 2 1 2 2 15 93.8
Milstein et al, 2007, quantitative (33) 2 2 2 1 2 1 0 2 12 75.0
Jones et al, 2006, quantitative (34) 2 2 2 2 2 1 1 2 14 87.5
Ansah et al, 2019, quantitative (35) 2 2 2 2 2 1 2 2 15 93.8
Cruz et al, 2019, quantitative (36) 2 2 2 2 2 2 1 2 15 93.8
Homer et al, 2004, quantitative (37) 2 2 2 2 2 2 1 2 15 93.8
Diaz et al, 2015, quantitative (38) 2 2 2 2 2 2 2 2 16 100.0
Mishra et al, 2018, quantitative (39) 2 2 2 2 2 1 1 2 14 87.5
Homer et al, 2007, quantitative (40) 2 2 2 2 2 1 1 2 14 87.5
Diaz et al, 2015, quantitative (41) 2 2 2 2 2 1 1 2 14 87.5

Abbreviation: —, not applicable.
a Columns indicate score for meeting each of the following 8 criteria: column 1, presenting a clear objective; column 2, presenting clear scenarios and interventions; column 3, presenting clear outcomes variables by graphs, charts, or tables; column 4, describing the development of a system dynamics model framework or presenting a detailed model framework; column 5, presenting and explaining model parameters; column 6, improving the quality of data by using stakeholders’ engagement, surveys, interviews, and databases; column 7, validating models; and column 8, presenting a clear result. Because of the differences in evaluation indicators involved in qualitative and quantitative models, we used only 5 of our 8 quality criteria (criteria 1, 4, 5, 6, and 8) to assess the quality of qualitative research. We used all 8 criteria to assess the quality of quantitative research. The score for meeting each criterion ranged from 0 to 2 (0 = not mentioned, 1 = mentioned, and 2 = fully described).
b Qualitative research is a conceptual model for analyzing the dynamic complexity between variables in the system; in quantitative research, the quantitative relationships, various parameters, and equations in the system are determined and simulated for prediction.
c Qualitative studies have a top score of 10 and quantitative studies have a top score of 16. The higher the score, the higher the overall quality of the study.
d Percentage = the study scores divided by the total score for the category of study (10 for qualitative and 16 for quantitative) and multiplied by 100.

Top

Error processing SSI file

The opinions expressed by authors contributing to this journal do not necessarily reflect the opinions of the U.S. Department of Health and Human Services, the Public Health Service, the Centers for Disease Control and Prevention, or the authors’ affiliated institutions.
