Construction Equipment Visibility: Komatsu WA 480

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Komatsu WA 480

Specifications

GVW:
54,980 lbs.
Machine Dimensions:
10′ 5″ wide 30′ long
Operator Enclosure:
Closed ROPS
Attachments:
None
Other Information:
None
Measurement Technique:
Physical

Ground level

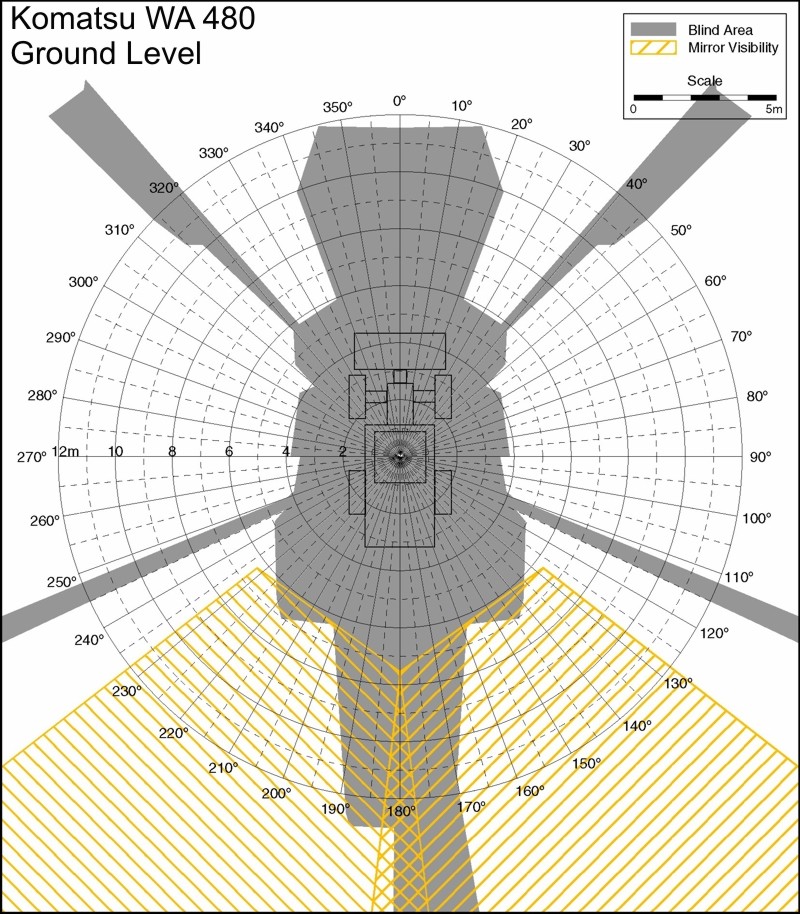

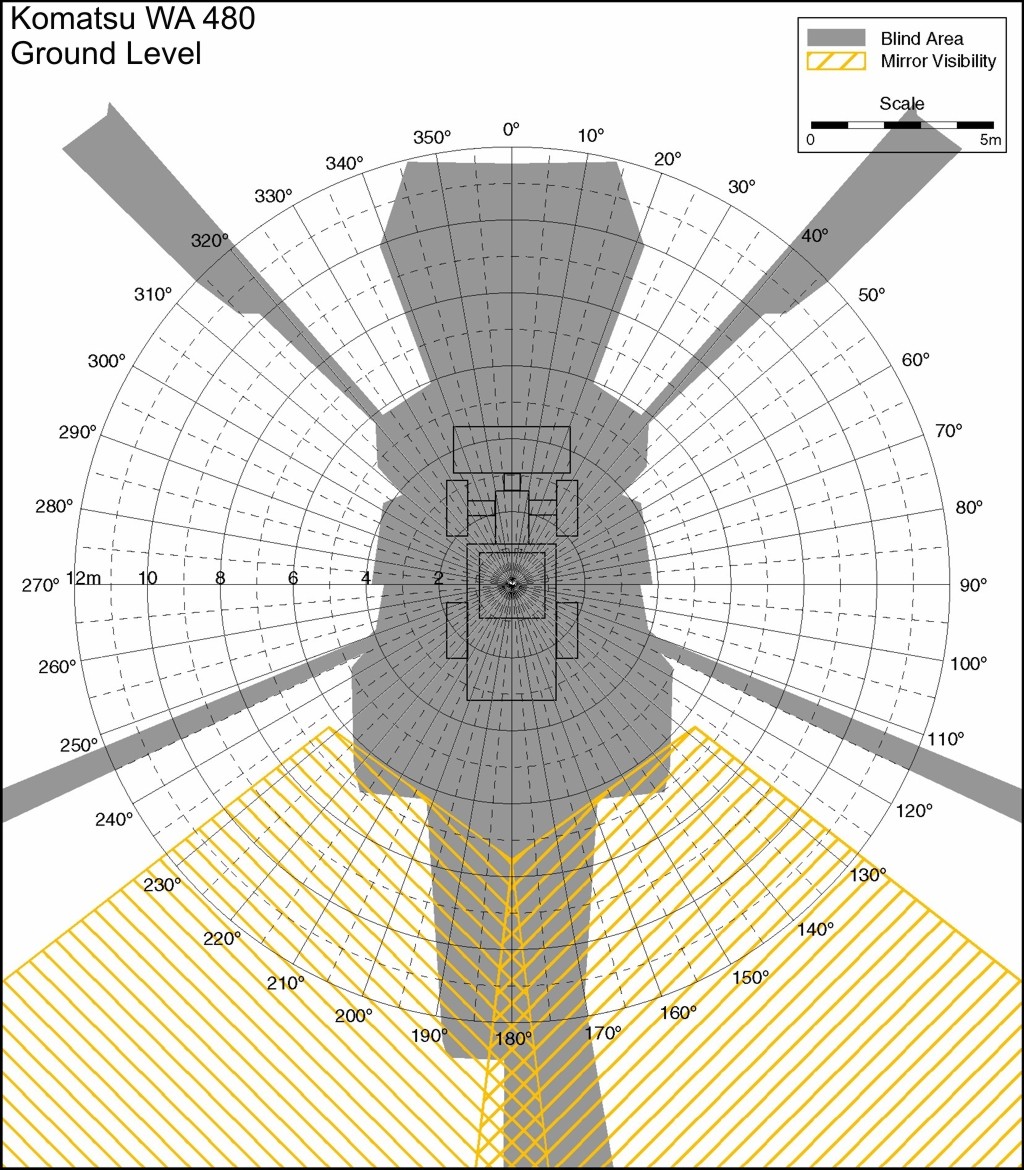

Komatsu WA 480 Ground Level. Best for printing on letter paper.
Blind area diagram Komatsu WA 480 ground level

800 x 914 | 1024 x 1170

900mm level

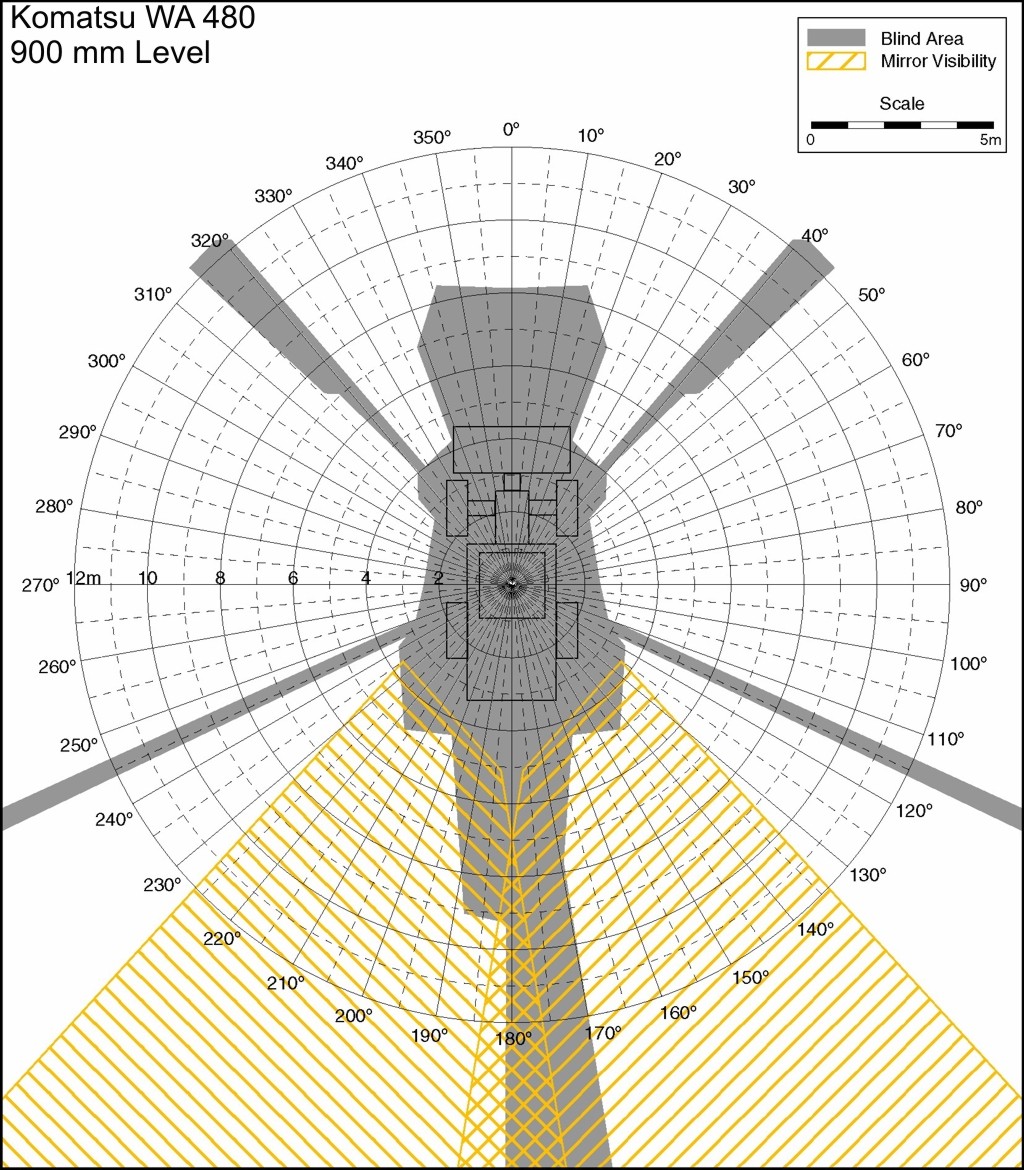

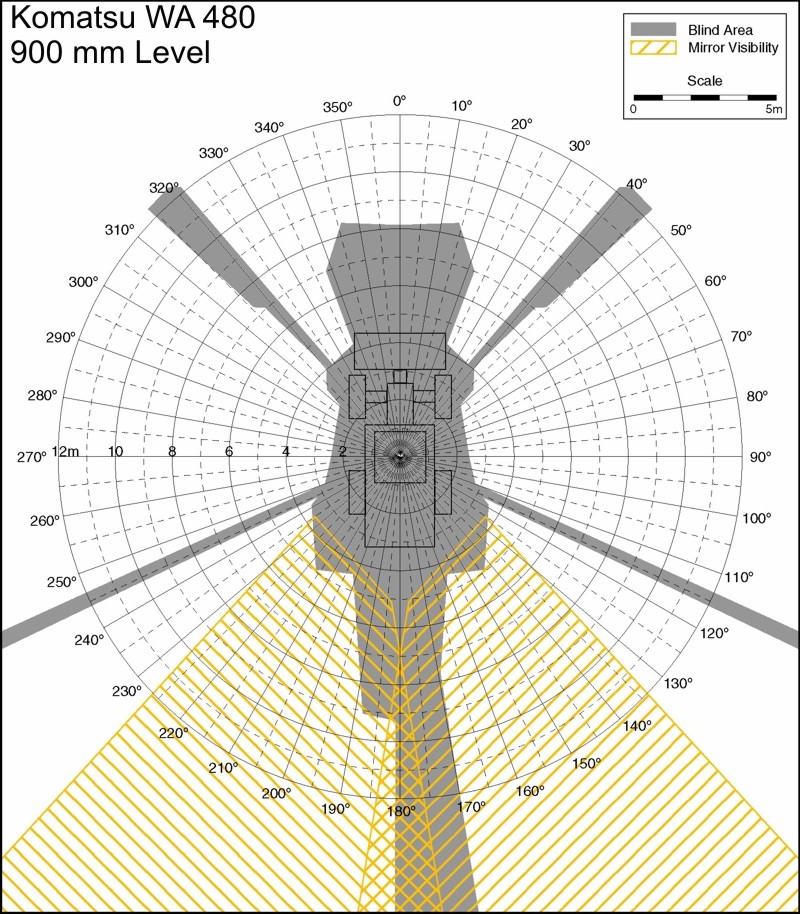

Komatsu WA 480 900mm Level. Best for printing on letter paper.
Blind area diagram Komatsu WA 480 900mm level

800 x 914 | 1024 x 1170

1500mm level

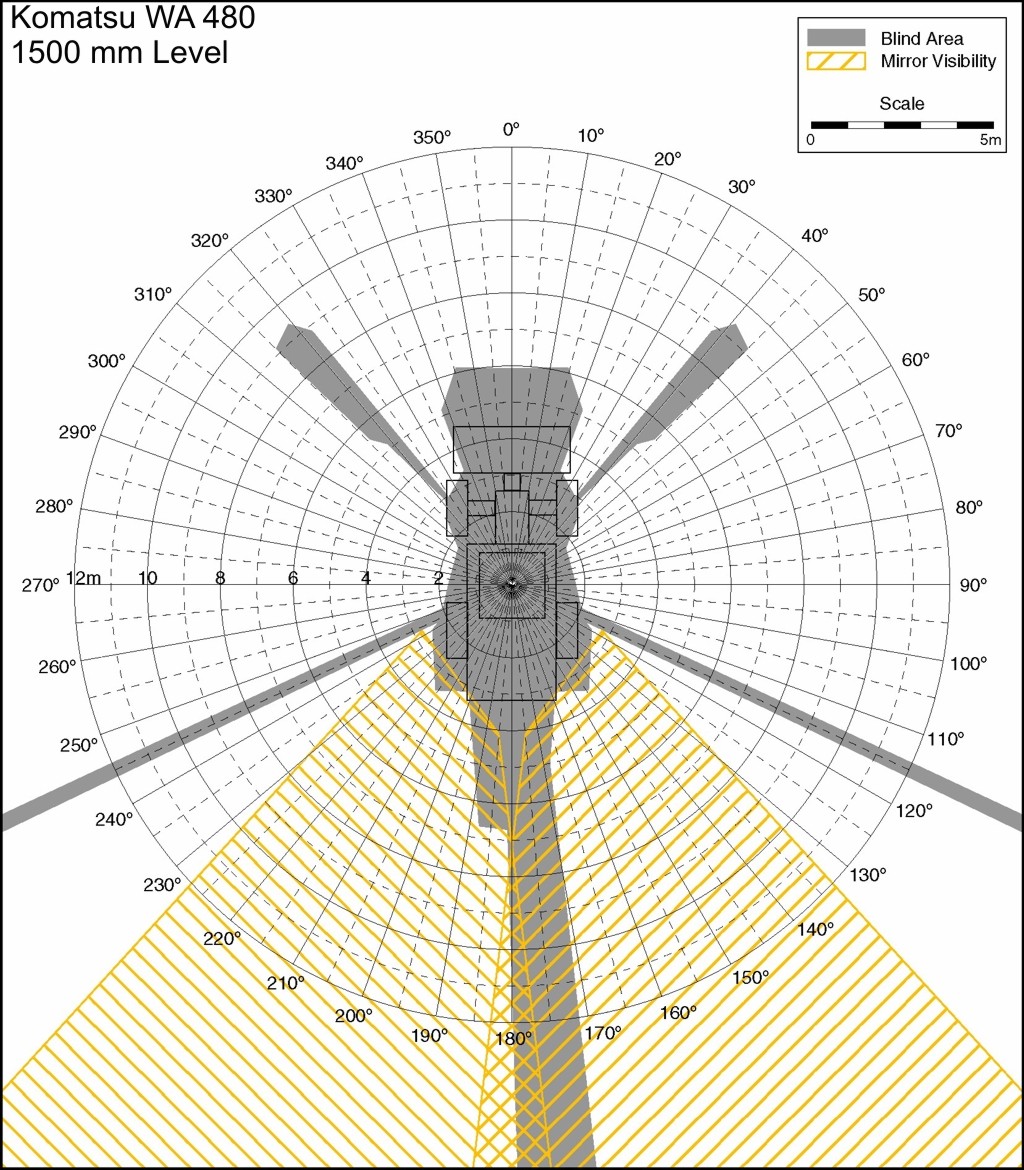

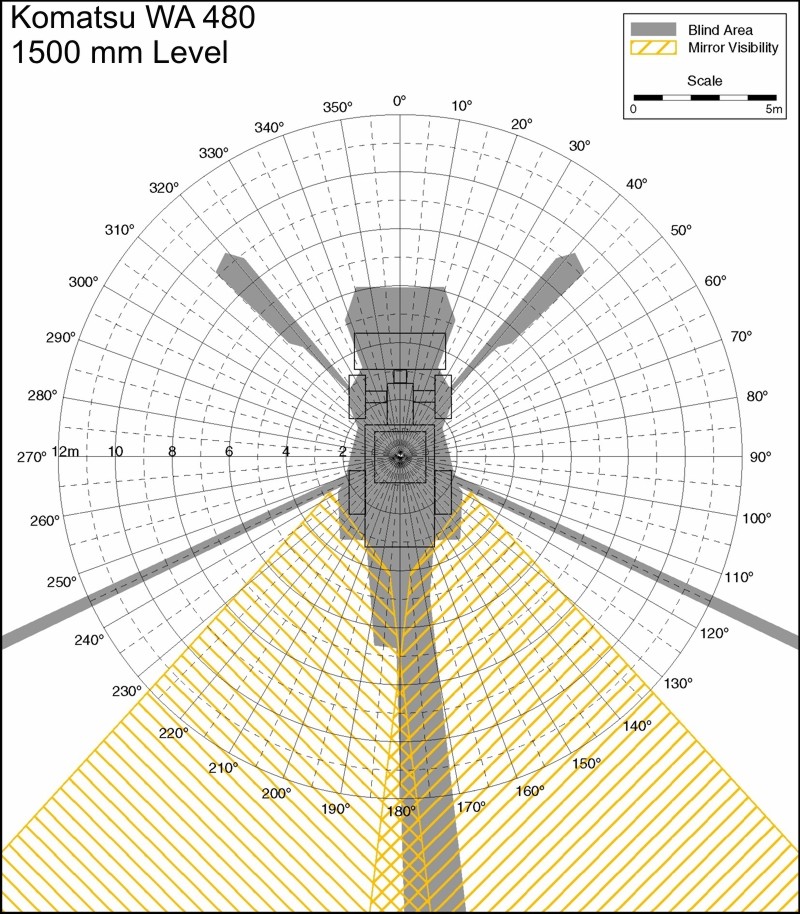

Komatsu WA 480 1500mm Level. Best for printing on letter paper.
Blind area diagram Komatsu WA 480 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
