Construction Equipment Visibility: Cat D7R

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Cat D7R

Specifications

GVW:
61,336 lbs.
Machine Dimensions:
9′ 5″ wide 15′ 6″ long
Operator Enclosure:
Closed ROPS
Attachments:
12′ 1″ wide 5′ high Semi-U Blade
Other Information:
None
Measurement Technique:
Physical

Ground level

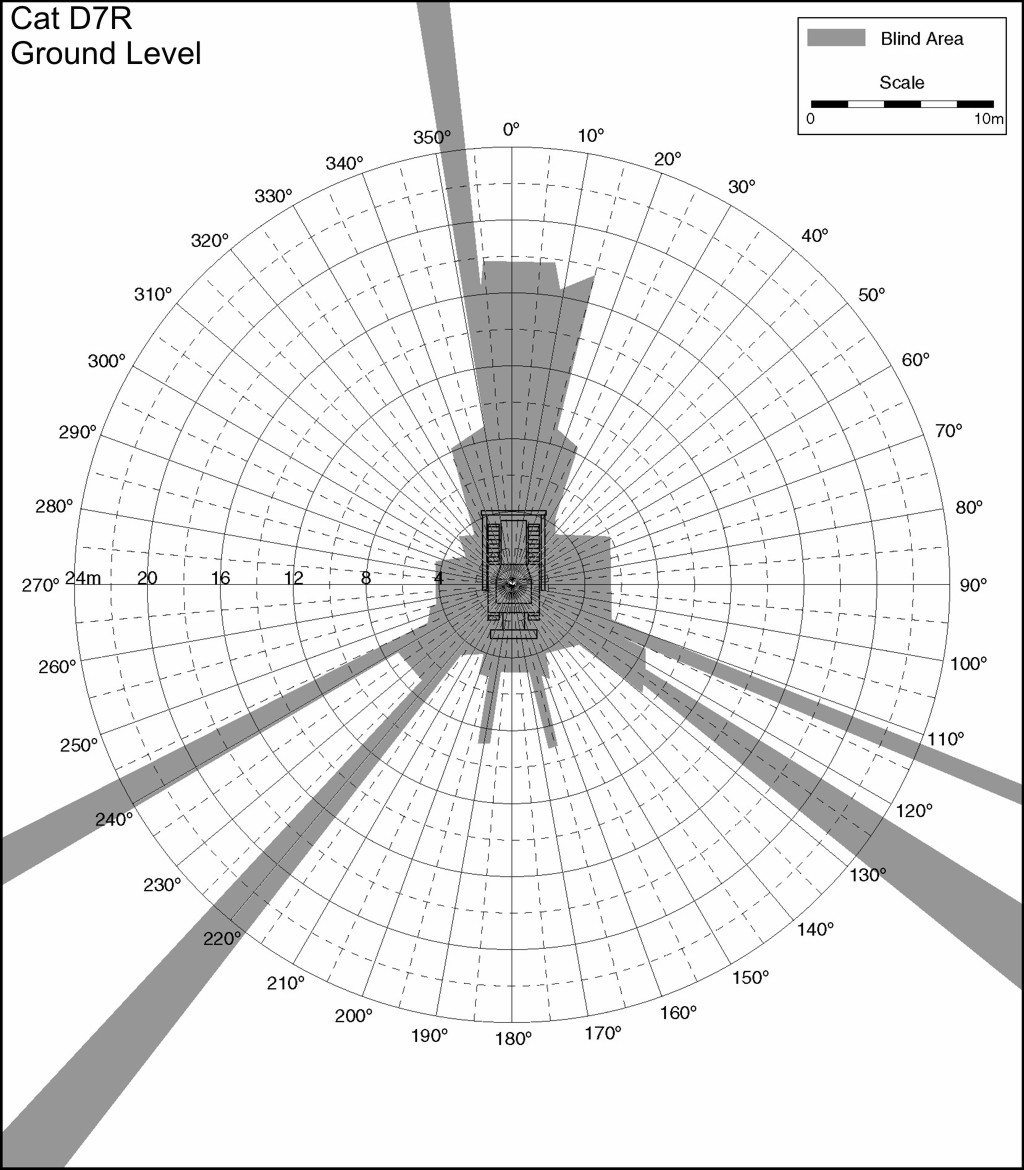

Cat D7R Ground Level. Best for printing on letter paper.
Blind area diagram Cat D7R ground level

800 x 914 | 1024 x 1170

900mm level

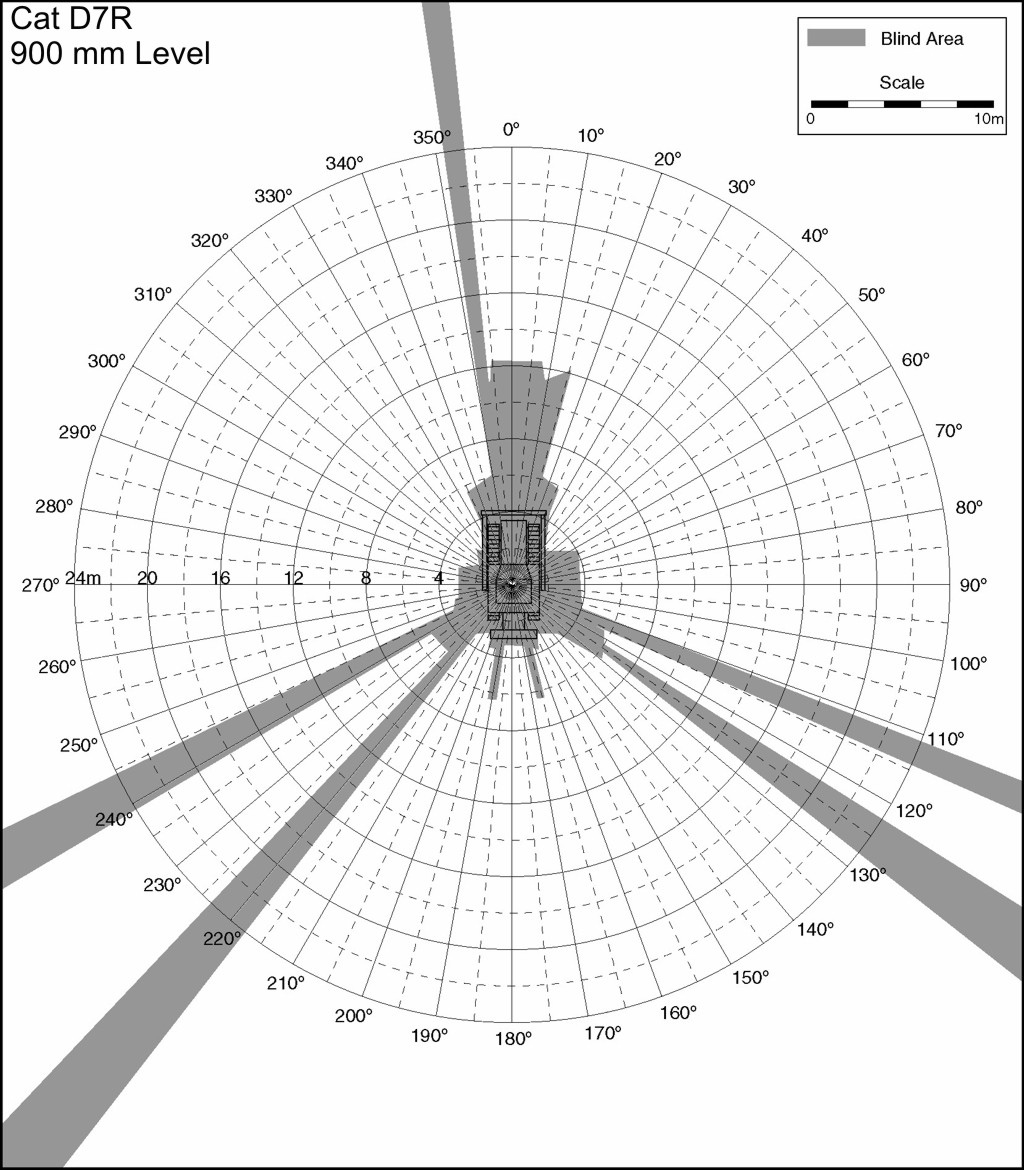

Cat D7R 900mm Level. Best for printing on letter paper.
Blind area diagram Cat D7R 900mm level

800 x 914 | 1024 x 1170

1500mm level

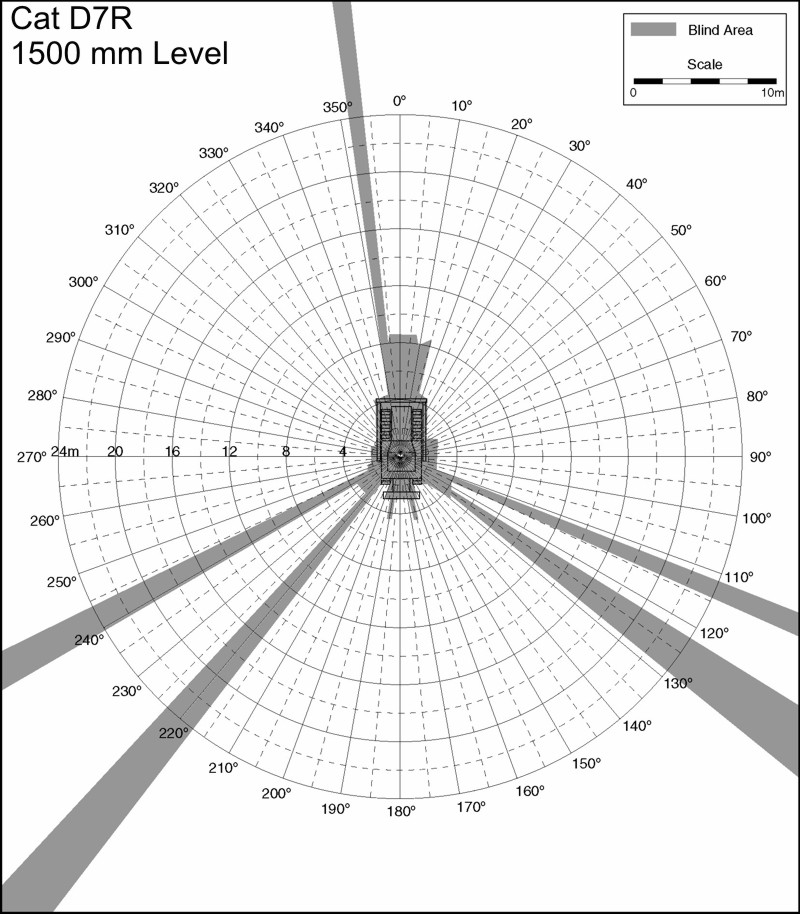

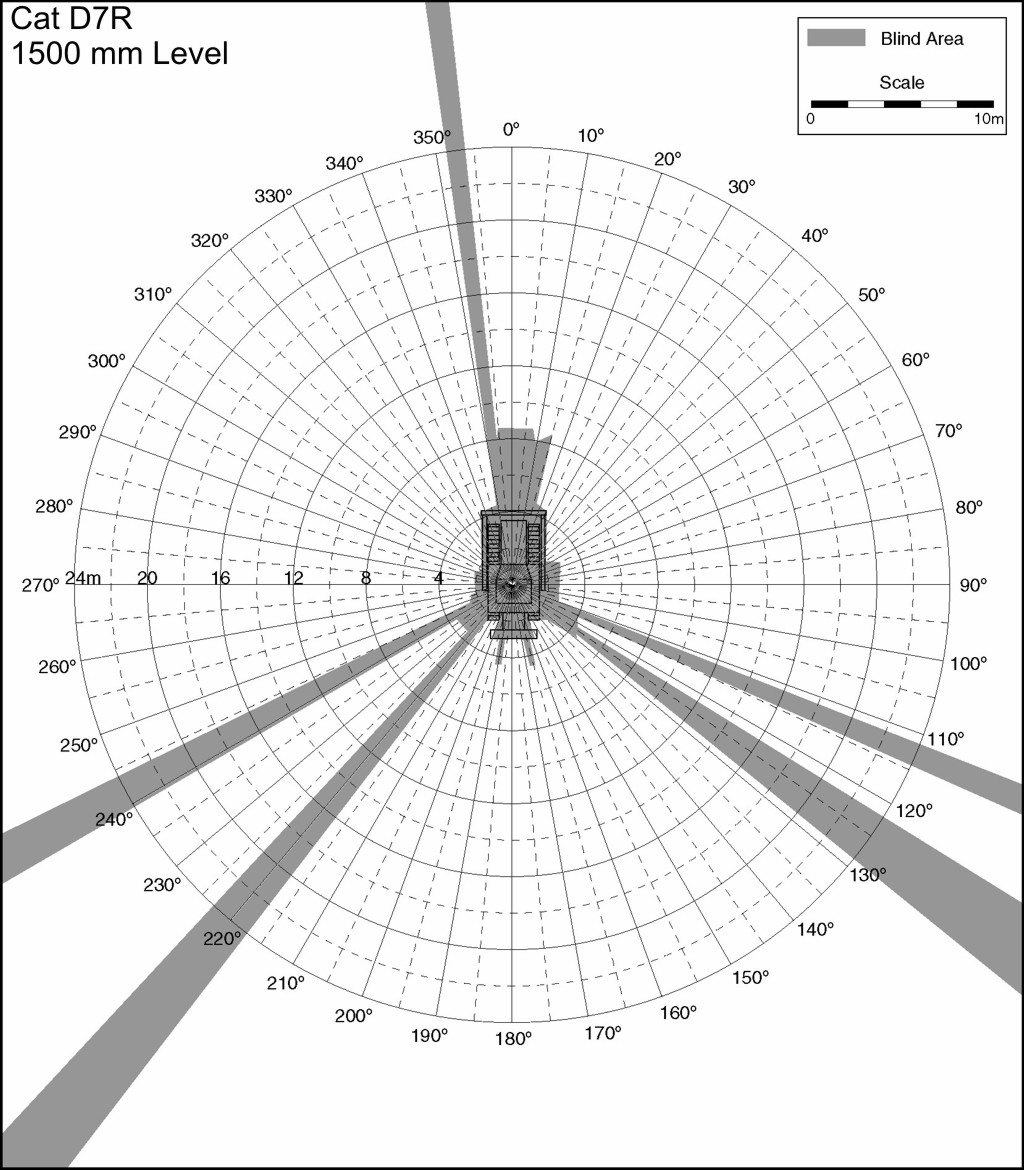

Cat D7R 1500mm Level. Best for printing on letter paper.
Blind area diagram Cat D7R 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
