Construction Equipment Visibility: Cat D6R-LGP

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Cat D6R-LGP

Specifications

GVW:
45,600 lbs.
Machine Dimensions:
8′ 8″ wide 13′ 11″ long
Operator Enclosure:
Closed ROPS
Attachments:
13′ wide 3′ 8″ high Semi-U Blade
Other Information:
None
Measurement Technique:
Computer

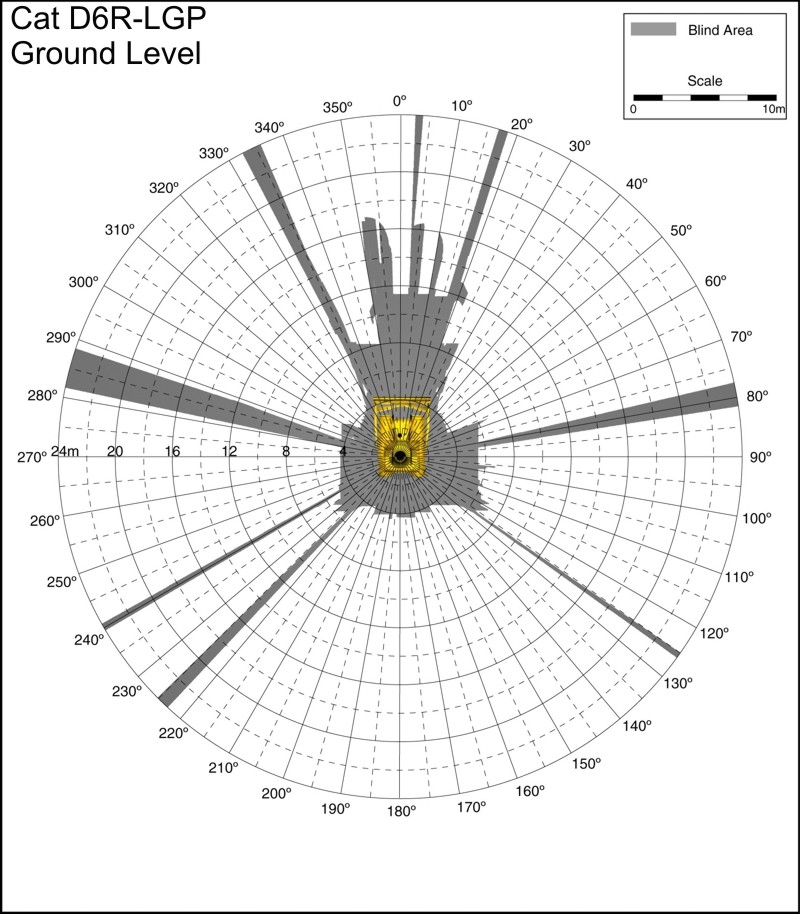

Ground level

Cat D6R-LGP Ground Level. Best for printing on letter paper.
Blind area diagram Cat D6R-LGP ground level

800 x 914 | 1024 x 1170

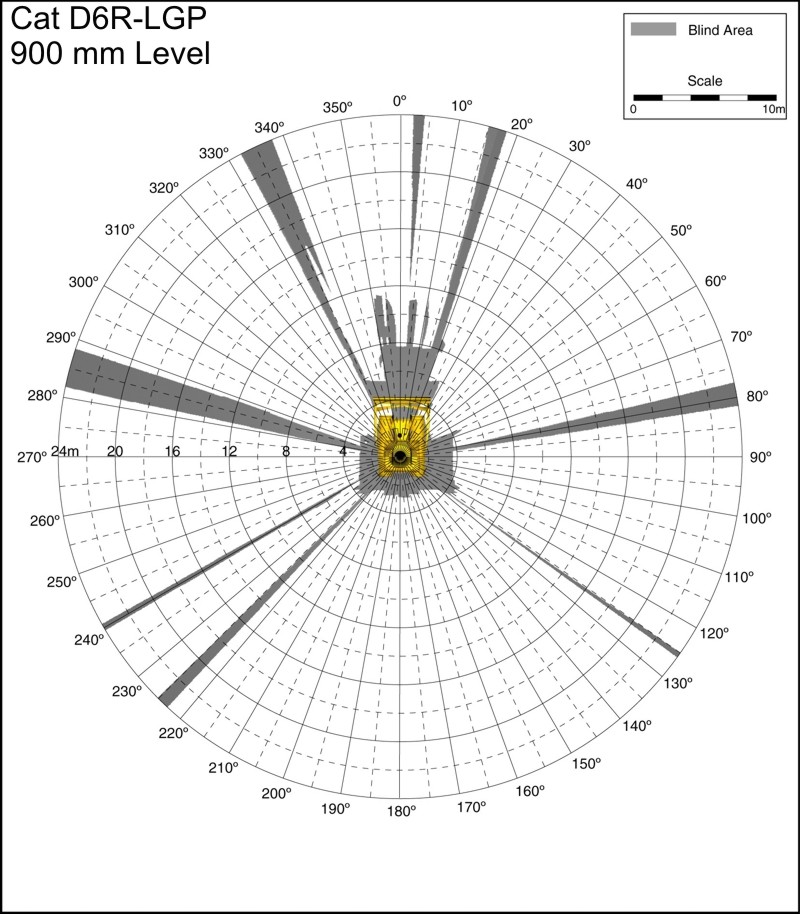

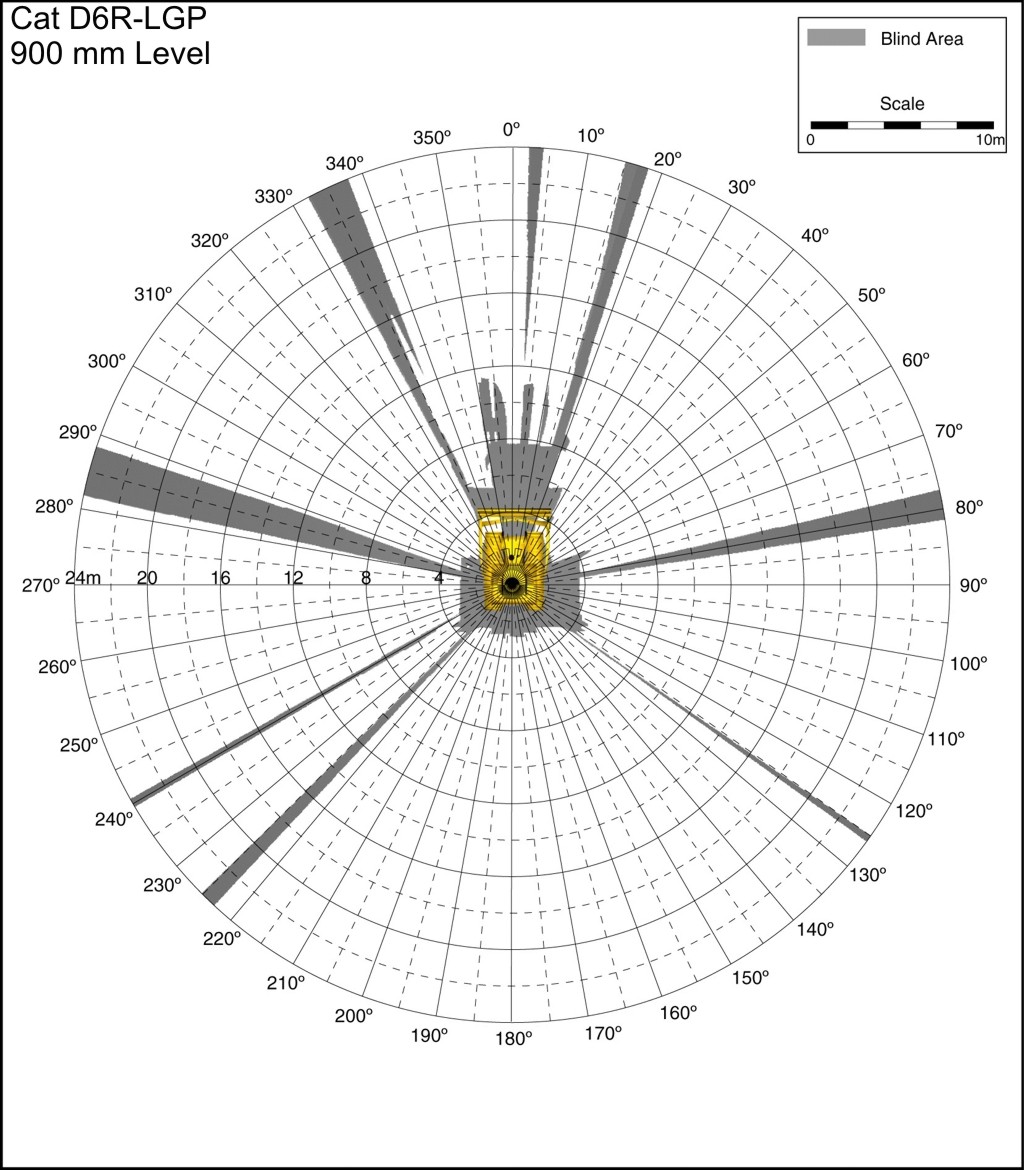

900mm level

Cat D6R-LGP 900mm Level. Best for printing on letter paper.
Blind area diagram Cat D6R-LGP 900mm level

800 x 914 | 1024 x 1170

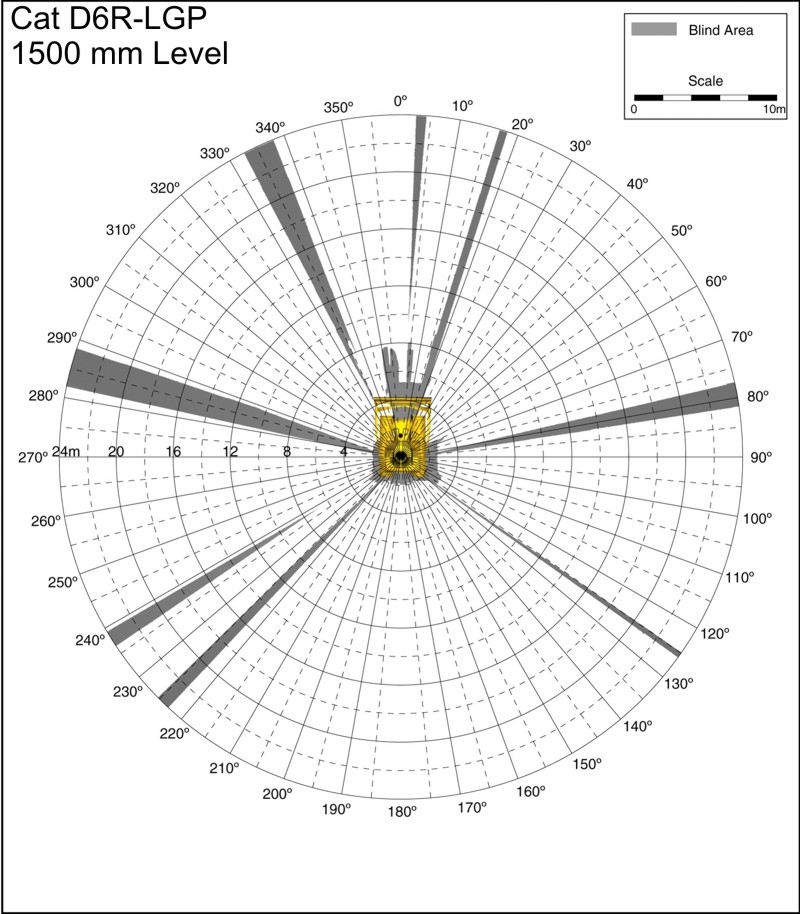

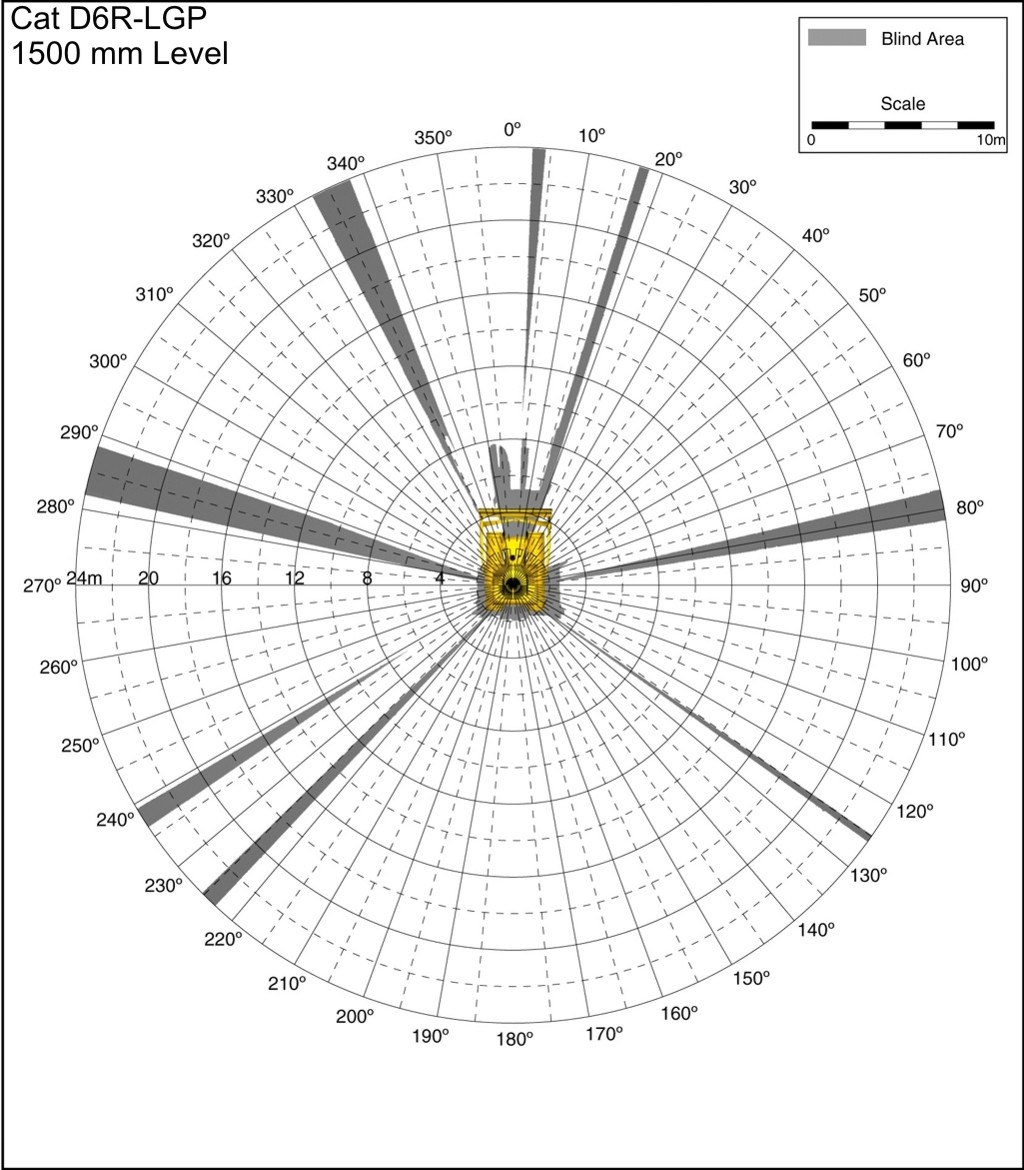

1500mm level

Cat D6R-LGP 1500mm Level. Best for printing on letter paper.
Blind area diagram Cat D6R-LGP 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
