Construction Equipment Visibility: Cat D5G

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Cat D5G

Specifications

GVW:
19,630 lbs.
Machine Dimensions:
5′ 1″ wide 14′ 3″ long
Operator Enclosure:
Closed ROPS
Attachments:
10′ 8″ wide 3′ 6″ high Power Angle & Tilt Blade
Other Information:
None
Measurement Technique:
Computer

Ground level

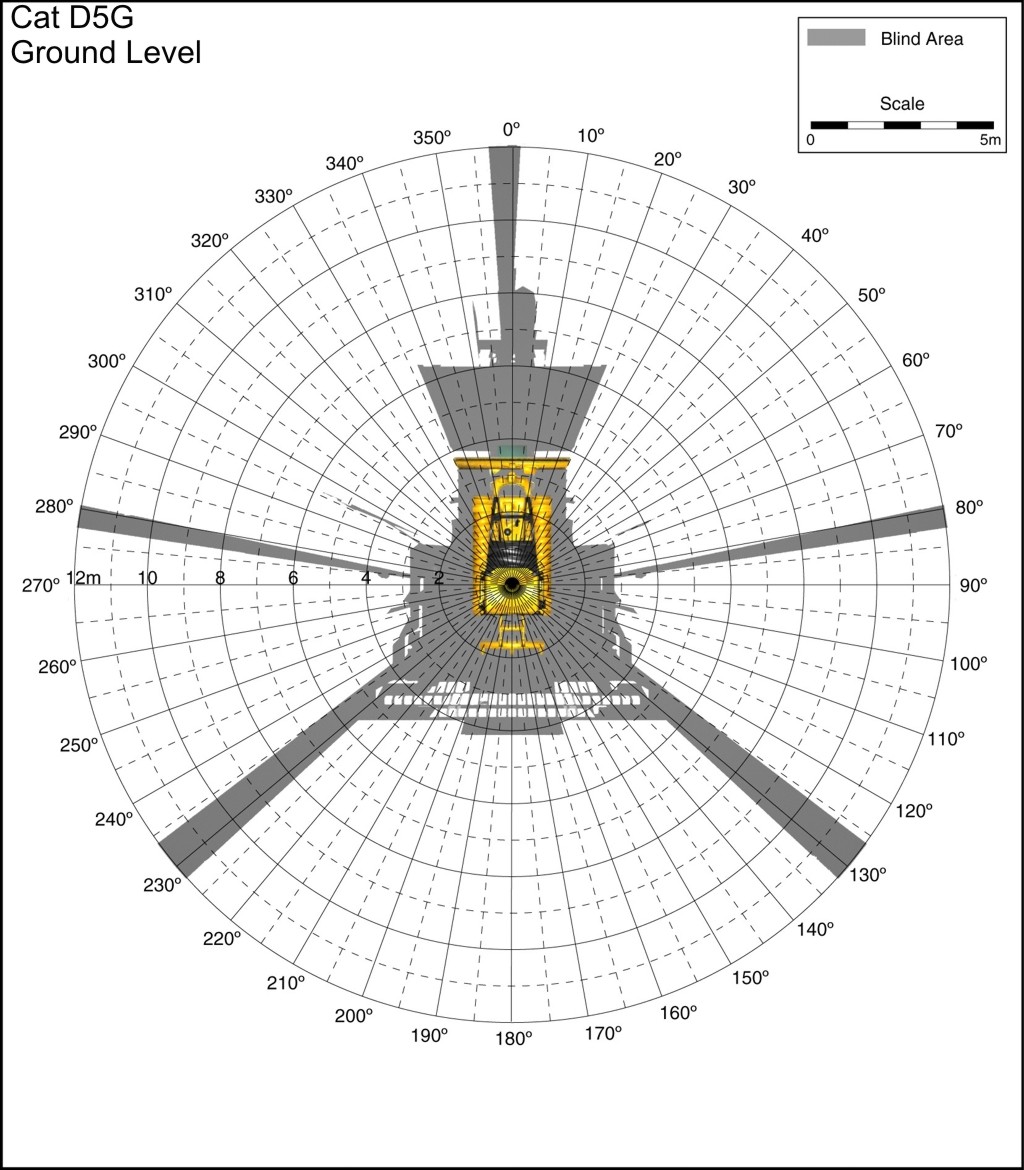

Cat D5G Ground Level. Best for printing on letter paper.

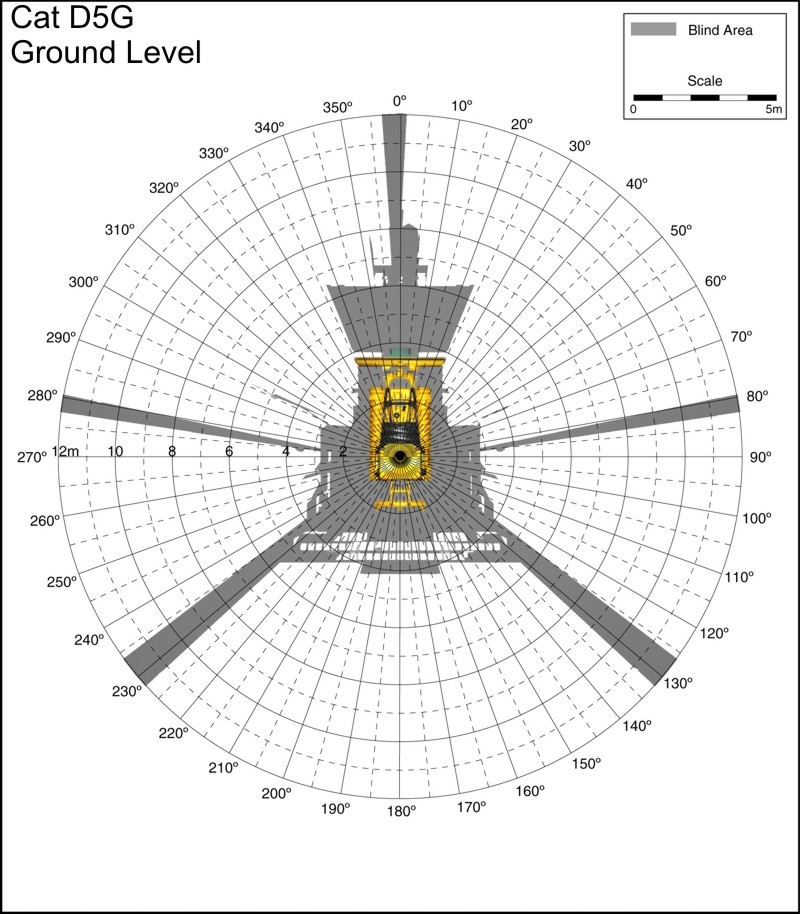

Blind area diagram Cat D5G ground level

800 x 914 | 1024 x 1170

900mm level

Cat D5G 900mm Level. Best for printing on letter paper.

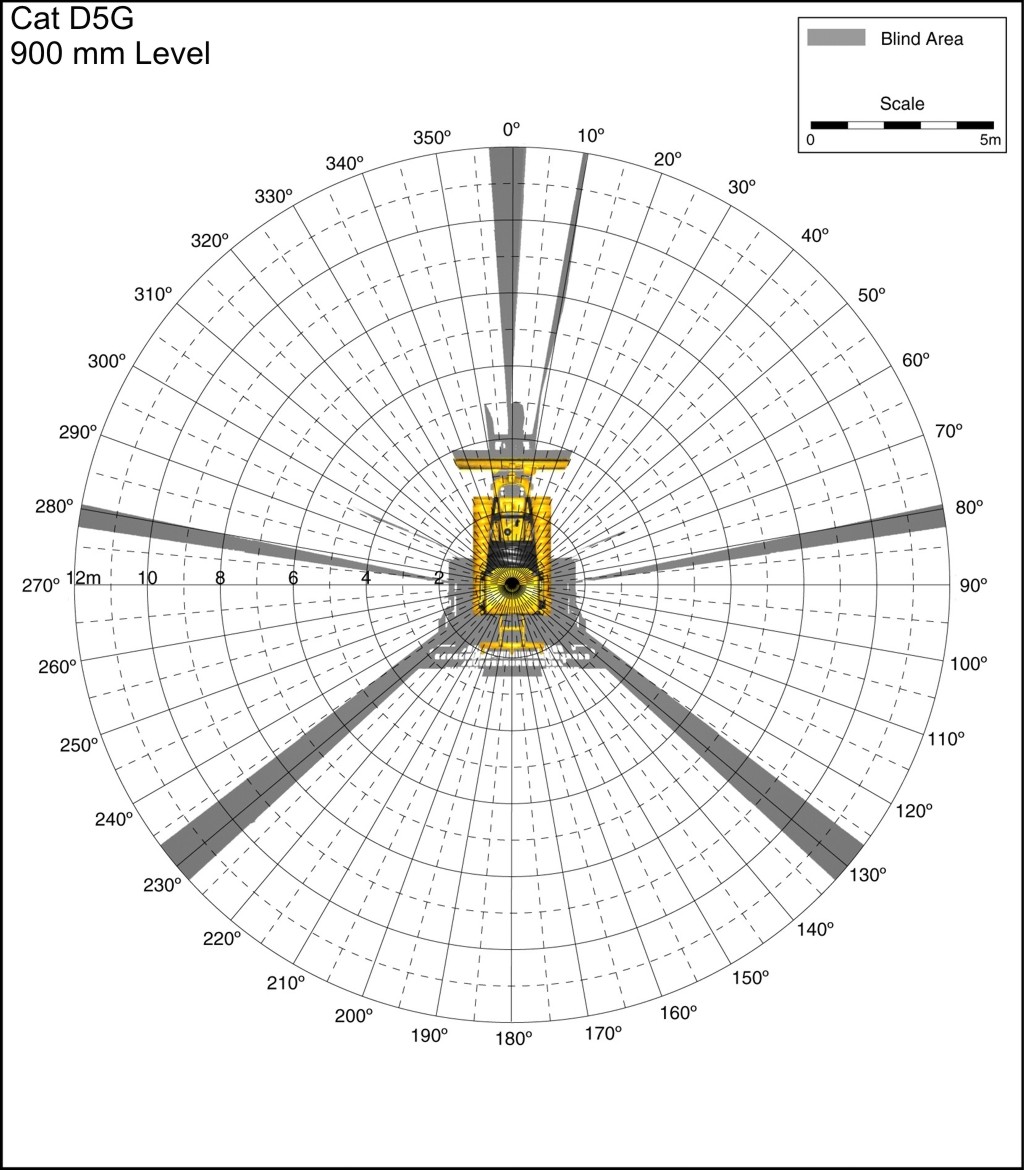

Blind area diagram Cat D5G 900mm level

800 x 914 | 1024 x 1170

1500mm level

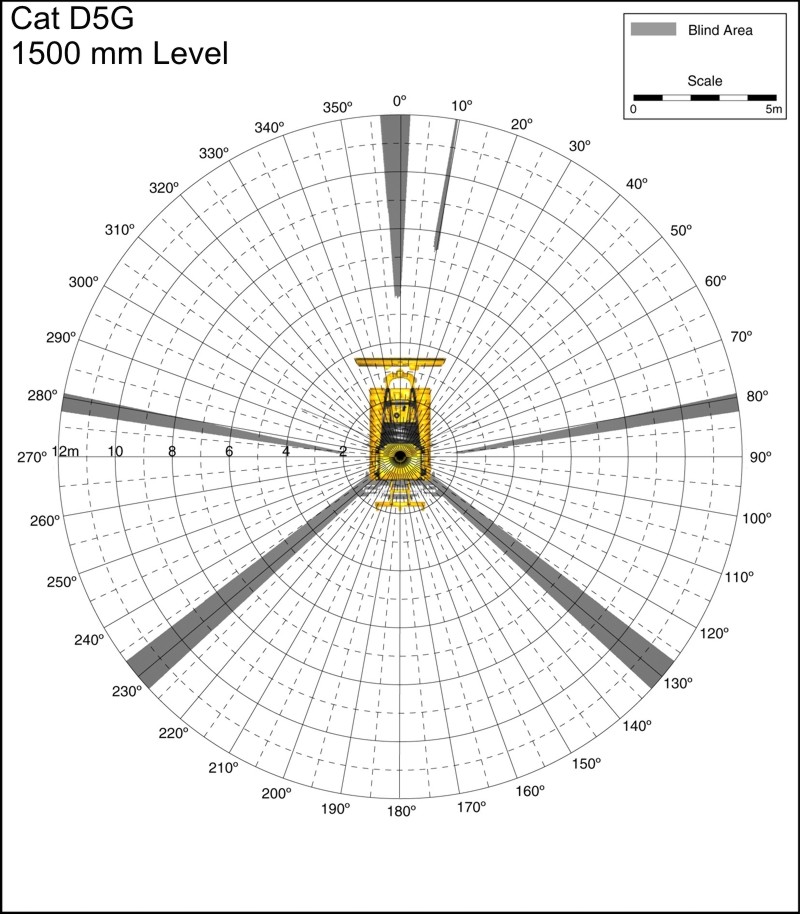

Cat D5G 1500mm Level. Best for printing on letter paper.

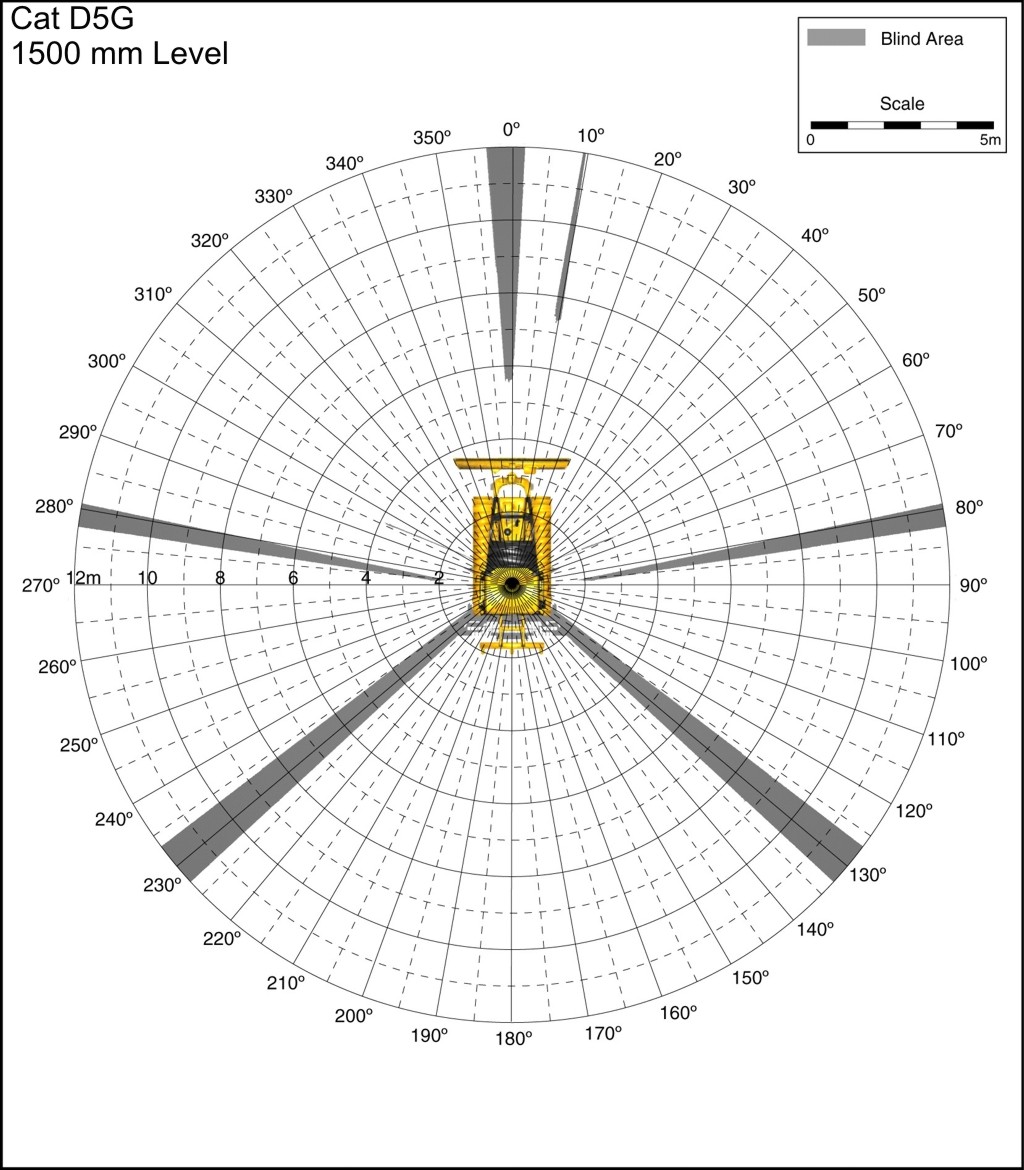

Blind area diagram Cat D5G 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
