Construction Equipment Visibility: Cat 992G

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Cat 992G

Specifications

GVW:
Unknown
Machine Dimensions:
15′ 9″ wide 53′ 2″ long
Operator Enclosure:
Closed ROPS
Attachments:
None
Other Information:
Capacity: 406 cubic feet
Measurement Technique:
Physical

Ground level

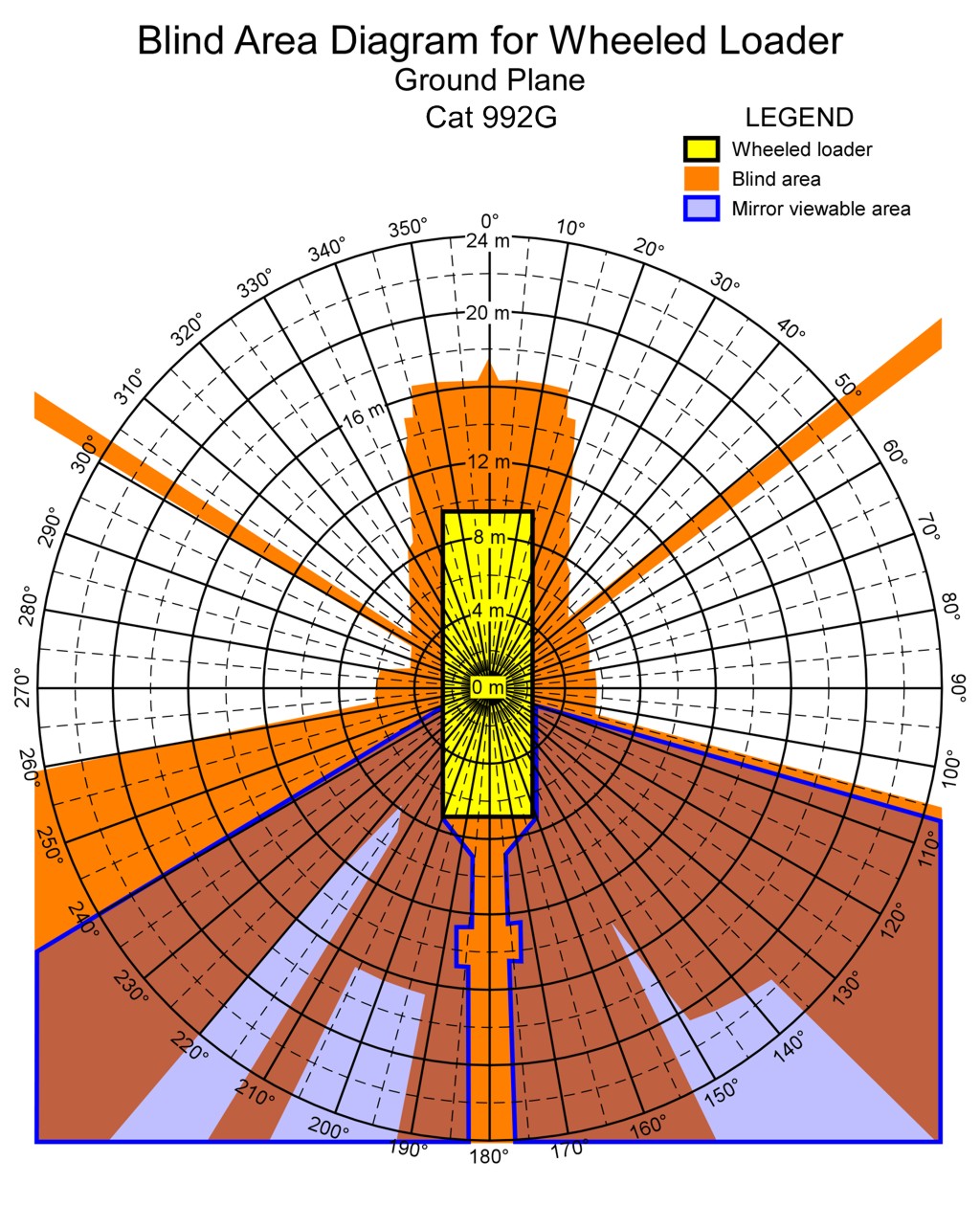

Cat 992G Ground Level. Best for printing on letter paper.
Blind area diagram Cat 992G ground level

800 x 914 | 1024 x 1170

900mm level

Blind area diagram not available for 900mm level.

1500mm level

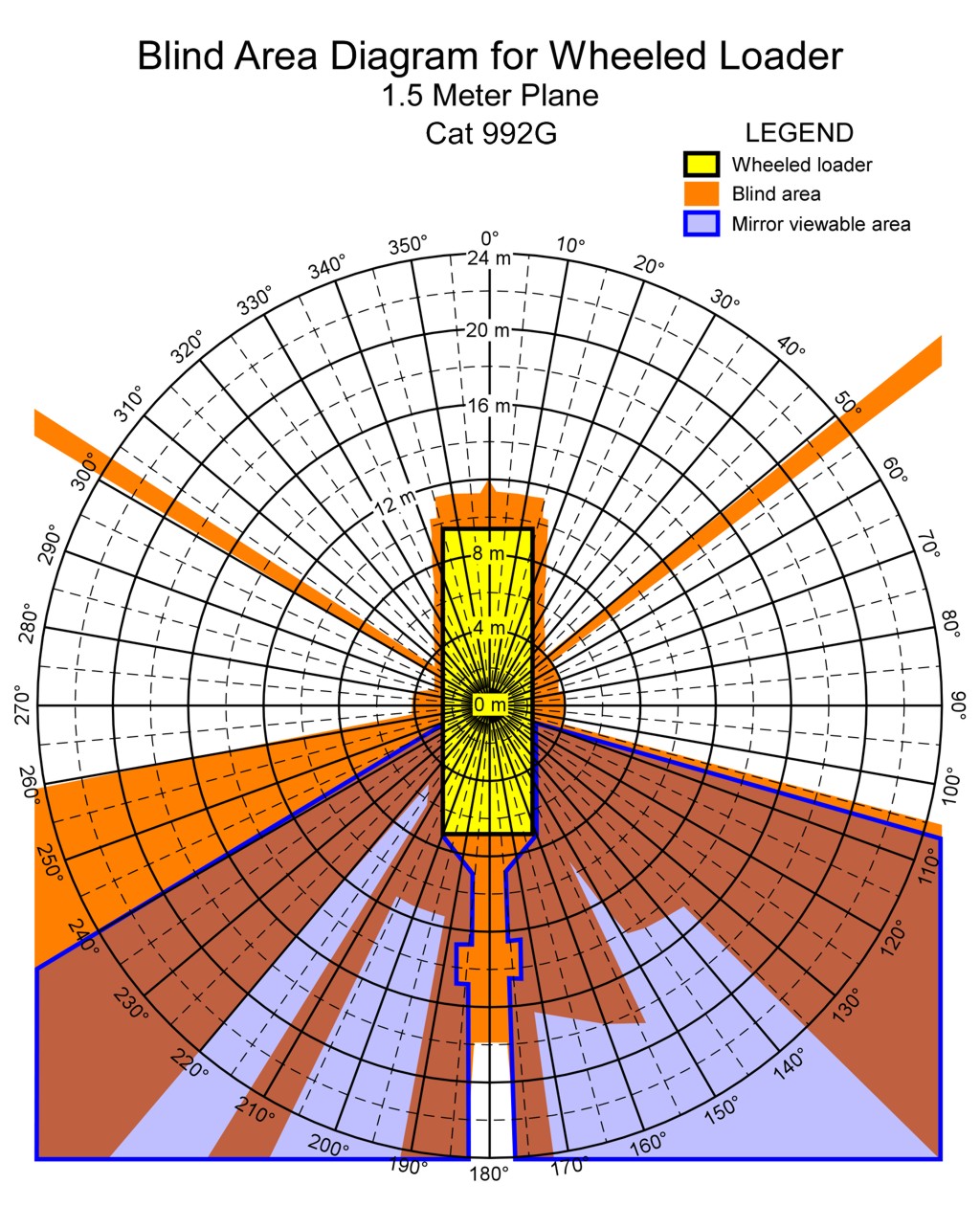

Cat 992G 1500mm Level. Best for printing on letter paper.
Blind area diagram Cat 992G 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
