Construction Equipment Visibility: Cat 623G

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Cat 623G

Specifications

GVW:
18/23 yd3
Machine Dimensions:
11′ 8″ wide 41′ 11″ long
Operator Enclosure:
Closed ROPS
Attachments:
None
Other Information:
None
Measurement Technique:
Physical

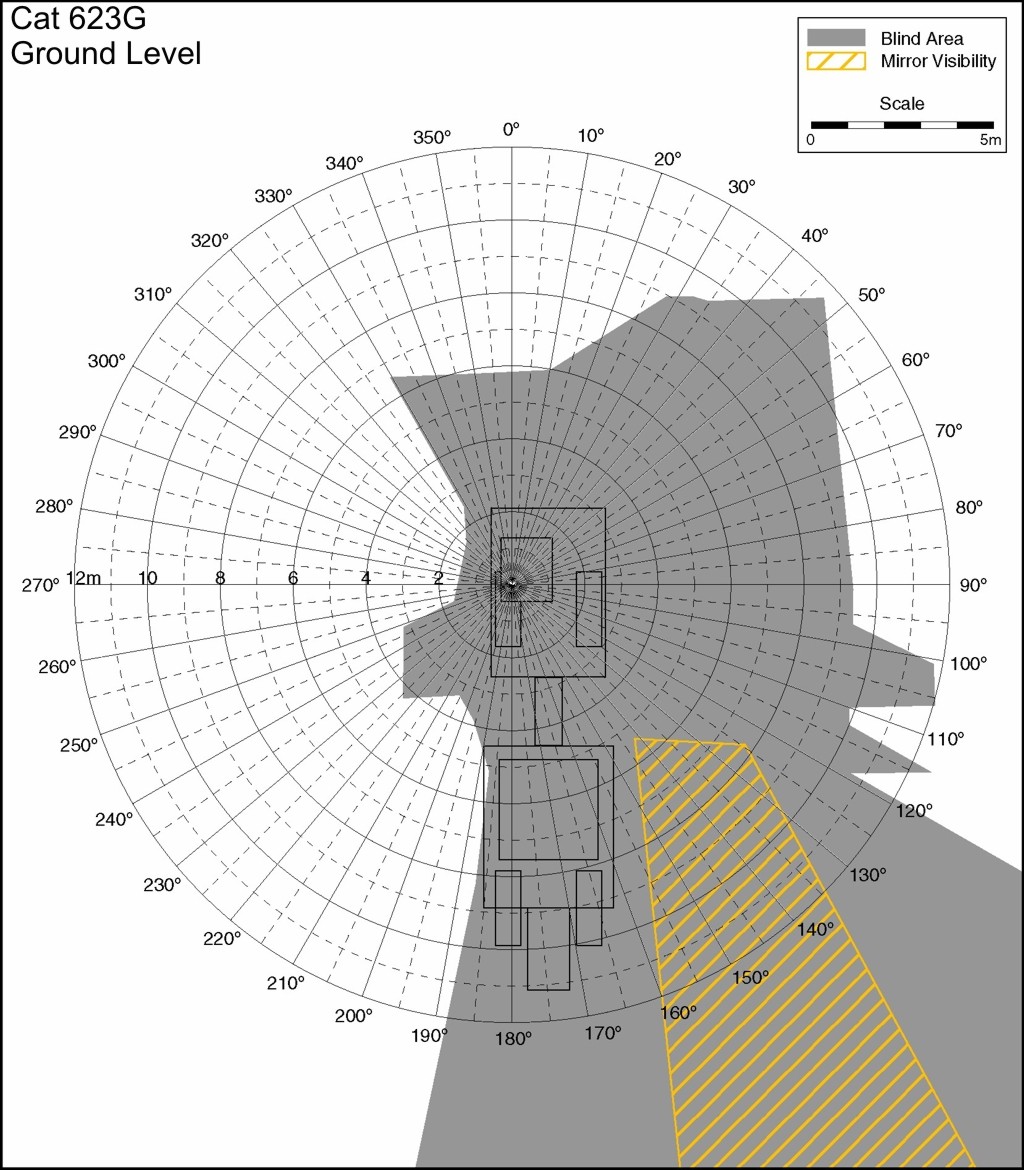

Ground level

Cat 623G Ground Level. Best for printing on letter paper.
Blind area diagram Cat 623G ground level

800 x 914 | 1024 x 1170

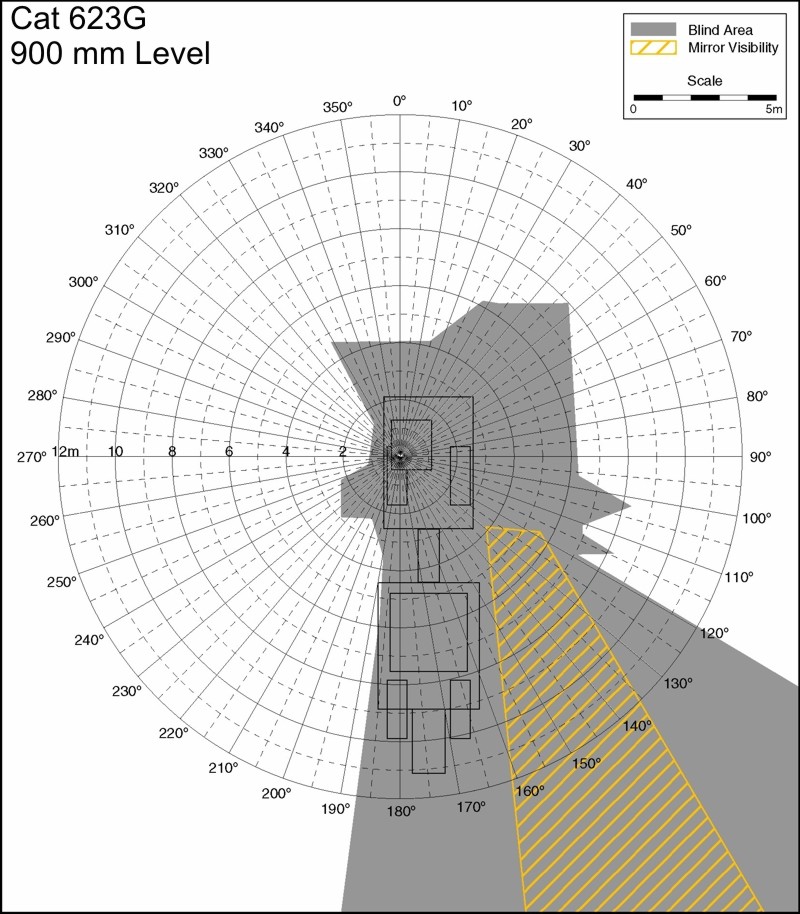

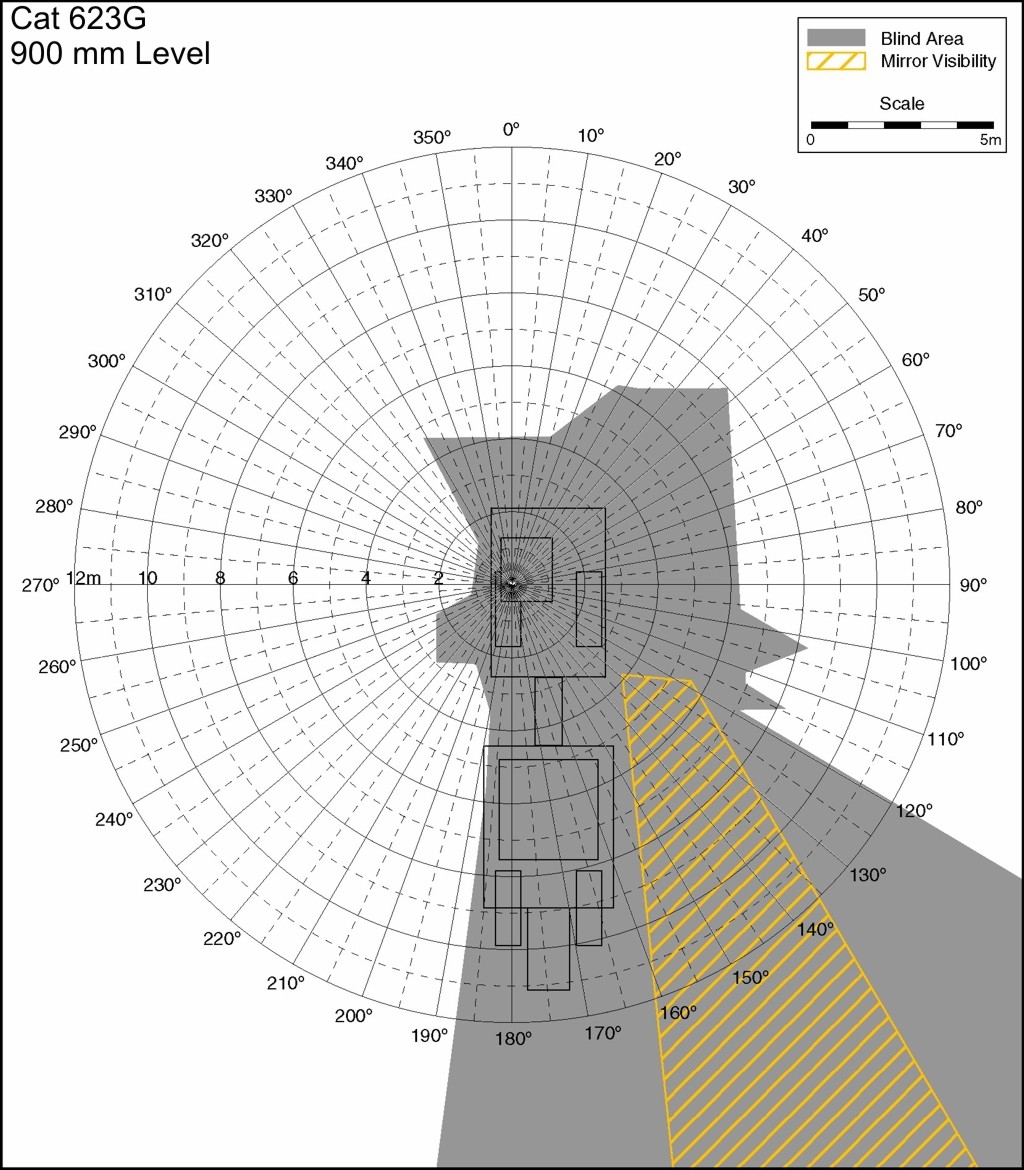

900mm level

Cat 623G 900mm Level. Best for printing on letter paper.
Blind area diagram Cat 623G 900mm level

800 x 914 | 1024 x 1170

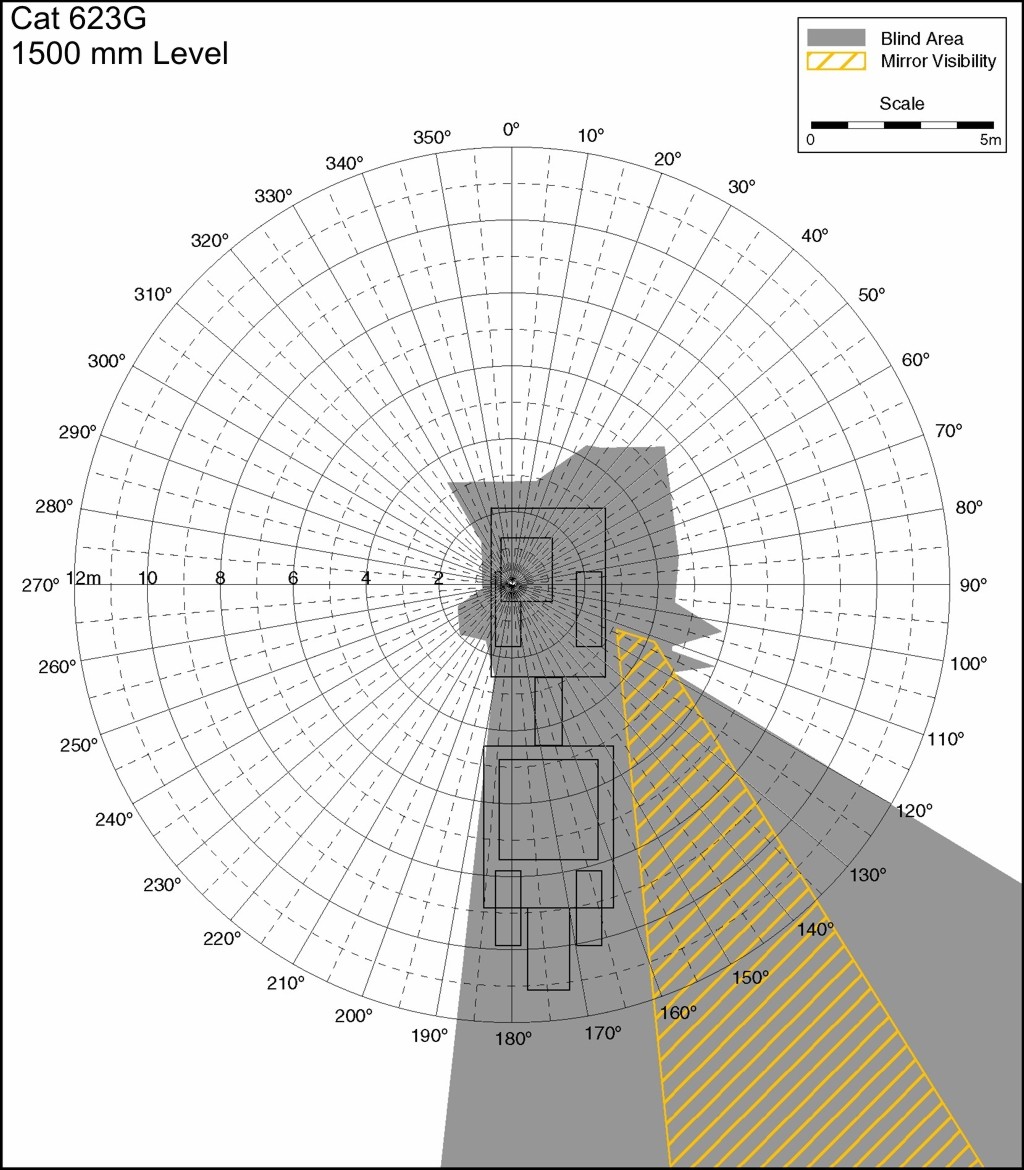

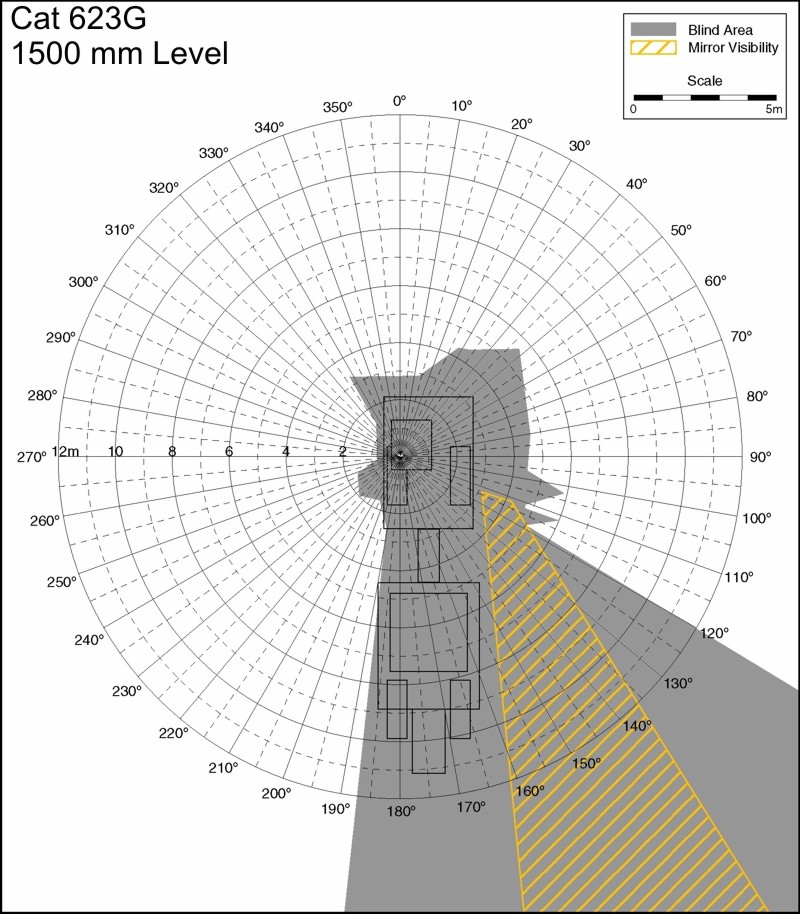

1500mm level

Cat 623G 1500mm Level. Best for printing on letter paper.
Blind area diagram Cat 623G 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
