Construction Equipment Visibility: Cat 16G

What to know

Blind area diagrams represent the operator's ability to see objects at different elevations.

Cat 16G

Specifications

GVW:
Unknown
Machine Dimensions:
9′ 11″ wide 38′ 1″ long
Operator Enclosure:
Closed ROPS
Attachments:
None
Other Information:
None
Measurement Technique:
Physical

Ground level

Cat 16G Ground Level. Best for printing on letter paper.

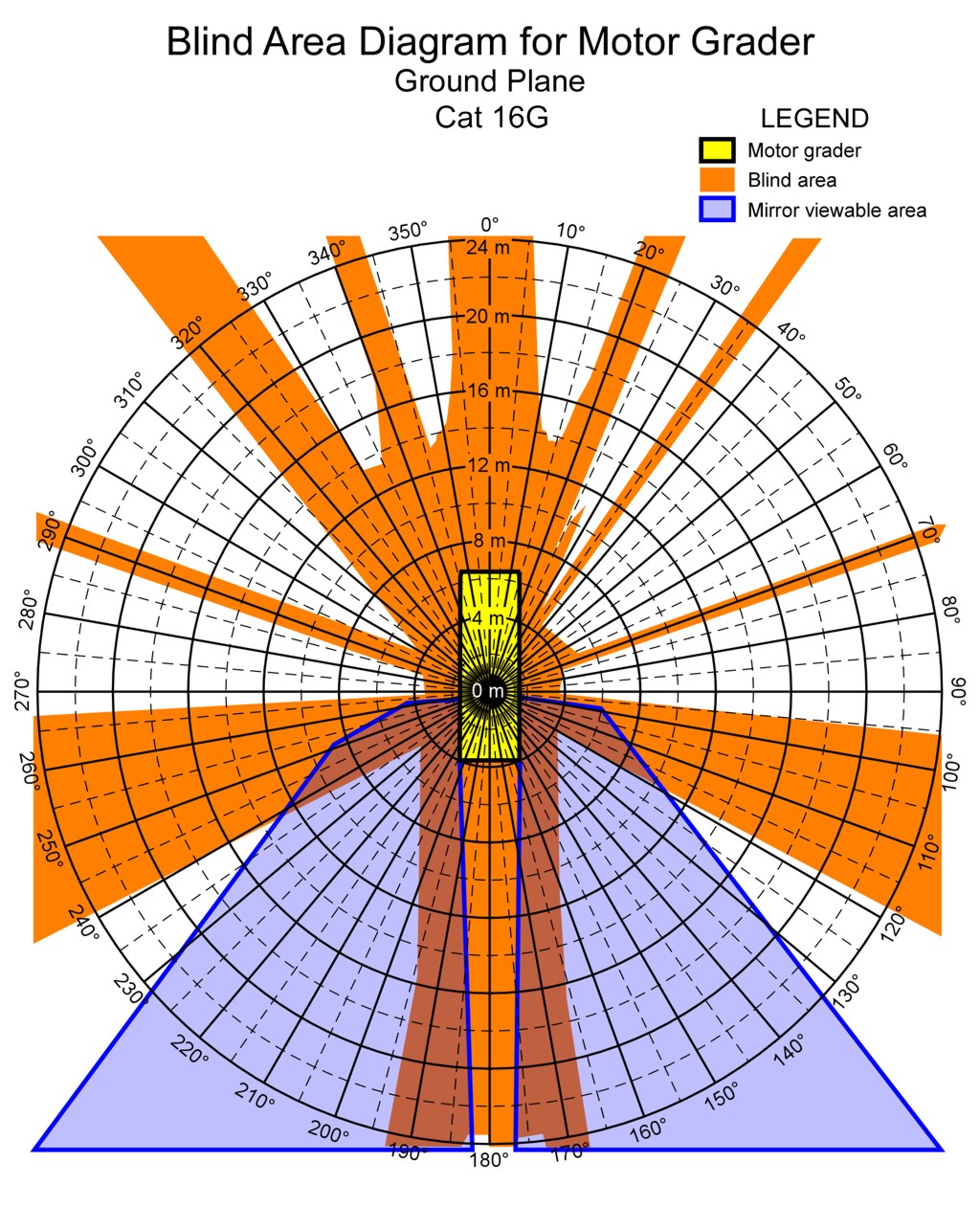

Blind area diagram Cat 16G ground level

800 x 914 | 1024 x 1170

900mm level

Blind area diagram not available at 900mm level.

1500mm level

Cat 16G 1500mm Level. Best for printing on letter paper.

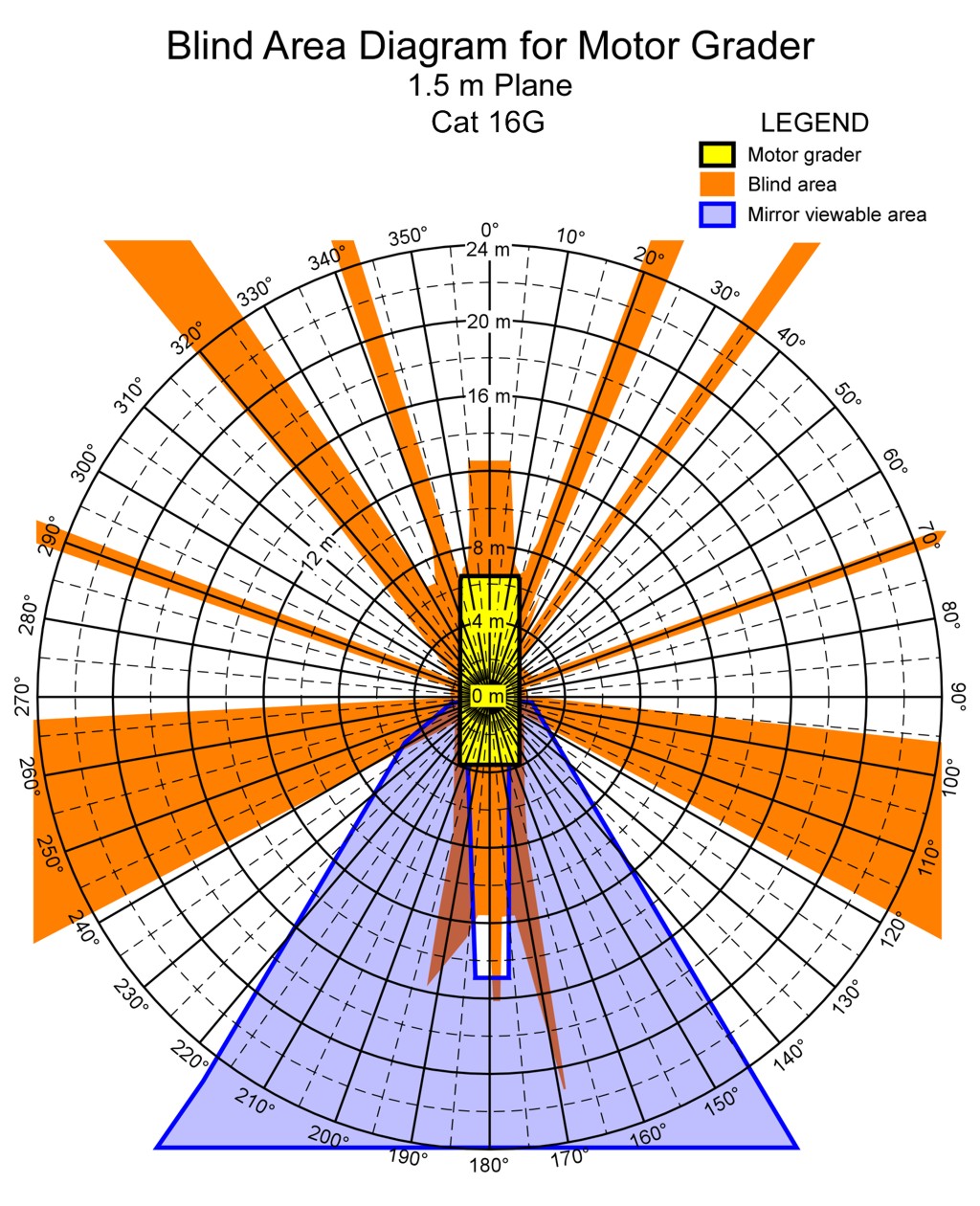

Blind area diagram Cat 16G 1500mm level

800 x 914 | 1024 x 1170

Print
Content Source:
National Institute for Occupational Safety and Health
