Recommendations from an Ad Hoc Meeting of the WHO Measles and Rubella Laboratory Network (LabNet) on Use of Alternative Diagnostic Samples for Measles and Rubella Surveillance

Laboratory confirmation of measles and rubella is an important component of disease surveillance in all settings. Because the use of clinical diagnosis for surveillance is unreliable, case-based laboratory confirmation of disease is critically important in settings with measles or rubella elimination goals. The World Health Organization (WHO) Measles and Rubella Laboratory Network (LabNet) was established in 2000 to provide a standardized testing and reporting structure and a comprehensive, external quality-assurance program (1). LabNet currently consists of 679 laboratories serving 166 countries. However, measles and rubella surveillance remains incomplete in certain areas because of difficulties with the collection and transport of serum specimens. Recently, LabNet evaluated two alternative sampling approaches to serum samples, the use of dried blood spots (DBS) and oral fluid (OF) samples. Both of these approaches have potential to be useful tools for measles and rubella control programs. In June 2007, WHO convened an ad hoc meeting in Geneva, Switzerland, to review available data and provide recommendations on use of DBS and OF samples for measles and rubella diagnostics. Attendees included LabNet staff members and scientists who had been conducting studies to evaluate use of these alternative diagnostic samples. The attendees concluded that 1) although serum-based diagnostics remain the "gold standard," the use of these two alternative sampling techniques would not adversely affect routine measles and rubella surveillance and might enhance surveillance; 2) regions in the elimination phase* that already have established serum-based testing for rash illness surveillance would not likely benefit from converting to DBS or OF sampling methods, except in special circumstances; and 3) DBS or OF sampling are viable options for measles and rubella surveillance in all regions, especially where patients might resist venipuncture for blood collection, or where special challenges exist with transport or refrigeration of diagnostic samples.

Background on Use of Alternative Diagnostic Samples

Conventional laboratory confirmation of suspected cases of measles and rubella is based on the detection of virus-specific immunoglobulin M (IgM) in a single serum sample collected soon after the onset of symptoms (2). In addition, detection of viral RNA by reverse transcription--polymerase chain reaction (RT-PCR), usually in a throat swab or urine sample, and subsequent genotyping of strains is valuable for diagnosis and molecular epidemiology (2). Accurate laboratory results for detection of IgM and viral RNA are dependent on proper collection, processing, shipment, and storage of clinical samples and use of accurate tests performed by a proficient laboratory. However, collection of blood samples by venipuncture, particularly from children, can be a challenge, and the sustained refrigeration required for diagnostic samples during transport is not always achievable. In these situations, alternatives to serum collection can be useful.

DBS has been used for various epidemiologic studies for the detection of measles- and rubella-specific IgG and IgM antibodies and viral RNA (3--5). Antibody and viral RNA are sufficiently stable on DBS at <98.6°F (<37.0°C) to allow this sample collection method to be used for case confirmation or molecular epidemiology in areas where sample refrigeration is not feasible. OF has been used in similar studies and for the national measles, mumps, and rubella (MMR) surveillance program in the United Kingdom (UK) for approximately 10 years (6,7). OF is easy to collect, and collection is more acceptable to the population (6), thereby enabling health-care workers to obtain more complete sampling for suspected cases.

Evaluations Comparing Alternative Diagnostic Samples with Serum-Based Diagnostics

Since 2001, LabNet reference laboratories in Australia, Cote d'Ivoire, Netherlands, Turkey, Uganda, the UK, and the United States have been working to 1) determine IgM and RNA stability in DBS and OF samples and 2) optimize the methods for IgM antibody assay and protocols for RNA detection in DBS and OF samples (8--10). This work has provided data on sensitivity and specificity of OF and DBS samples compared with serum and also has identified logistic challenges in implementing alternative sampling techniques. Three different types of data were available for review during the ad hoc meeting. First, beginning in 2001, LabNet laboratories conducted studies that collected OF, DBS, and corresponding serum samples from persons with suspected measles or rubella during outbreaks and tested the samples for the presence of measles- or rubella-specific IgM antibodies. Second, LabNet reviewed data from the MMR surveillance program in the UK, where 1,000--3,000 OF samples have been collected annually during the past decade. Third, LabNet reviewed data from seven countries in the WHO African Region that used DBS sampling methods for routine measles and rubella surveillance during 2005--2007. DBS was either the only sample collected (Sierra Leone) or was collected in conjunction with routine serum collection (Burkina Faso, the Democratic Republic of Congo, Ethiopia, Ghana, Senegal, and Zambia). Standard protocols for sample collection and laboratory testing recommended by LabNet were used (2).

Data from all three sources indicated that the sensitivity and specificity of DBS and OF for detecting measles and rubella virus--specific IgM parallels that of serum; however, a moderate decline in sensitivity for detecting rubella virus--specific IgM in OF during the first 4--5 days after disease onset was observed (Figures 1 and 2; Table). Detection of RNA in serum and DBS was shown to be possible with nested or real-time RT-PCR (but not conventional RT-PCR) if samples are collected within 5--7 days after rash onset. This procedure has proven invaluable for collecting viral sequence information where urine or throat swabs were not available. In the MMR surveillance program in the UK, using OF, the rate of measles RNA detection by nested RT-PCR ranged from 80% to 90% when collected during the first week after rash onset, and reached 50% at 3--4 weeks after rash onset. Conventional RT-PCR was sensitive for up to 2 weeks after rash onset, but was still considered useful. For rubella, testing for both IgM and RNA in OF samples substantially increased the sensitivity of surveillance for confirming cases during the first 4--5 days after rash onset, when many rubella cases are not yet IgM positive. Results of evaluations comparing OF and DBS with serum sampling indicated that OF and DBS sampling have a potential role in improving measles and rubella surveillance. Compared with serum collection, these sampling procedures provide:

  • Equivalent sensitivity and specificity for specific IgM detection, although moderately reduced sensitivity for detecting rubella virus--specific IgM in OF samples.
  • Simplified sample collection, although training is required.
  • Good acceptance by patients, because DBS avoids venipuncture and OF is noninvasive.
  • Stability without refrigeration for periods of up to 7 days (OF) or longer (DBS).
  • Equivalent cost for collection, extraction, and testing.
  • Potential to substantially reduce transport costs through avoiding refrigeration.
  • Ability to detect both specific IgM and RNA in the same sample. OF can extend the opportunity for RNA detection after rash onset.
  • Equivalent sensitivity and specificity for IgG detection and consequent versatility for use in seroepidemiology studies.

However, use of OF and DBS sampling also has some disadvantages compared with serum collection, in particular:

  • Collection devices are not commonly available and would need to be provided to health-care facilities by the surveillance program.
  • Volume of DBS might be inadequate unless staff are fully trained in sample collection.
  • Extraction procedures for DBS and OF require more time of technicians.
  • External quality-assurance programs, such as those currently required for testing of serum, have yet to be established for OF and DBS.

Recommendations

Having considered the evidence described in this report, participants in the ad hoc meeting made the following recommendations.

No single alternative sampling technique has been shown to be optimal for surveillance under every circumstance, and serum should still be considered the "gold standard" for IgM detection. However, DBS and OF sampling techniques are viable options for measles and rubella surveillance (5--10), especially where challenges with specimen transport or refrigeration exist or where patients might resist venipuncture. Alternative sampling techniques would not adversely affect routine measles and rubella surveillance (provided adequate training and resources are provided) and might enhance surveillance through:

  • More acceptable noninvasive methods (OF).
  • Reduced transport costs (DBS and OF).
  • Enhanced ability to conduct molecular surveillance (OF and DBS RNA).
  • Enhanced sensitivity of rubella case confirmation during the first 4--5 days after rash onset (OF RNA).
  • Offering a confirmatory option for questionable serum IgM results during the early stage of disease for both measles and rubella (OF RNA).

Regions in the elimination phase that already have established a serum-based rash illness surveillance system would not likely benefit from changing to DBS or OF sampling methods except in special circumstances, such as in settings where:

  • Timely specimen transport from remote or difficult-to-access areas to the laboratory conducting the serologic analysis is especially difficult.
  • Collection of OF in addition to serum might improve efficiency of case identification and virologic surveillance by enabling detection of viral RNA from disease onset.

Implications for Measles and Rubella Surveillance in the United States

Elimination of indigenous measles and rubella virus was declared in the United States in 2000 and 2004, respectively. High-quality measles and rubella surveillance including timely collection of diagnostic samples for laboratory confirmation, along with sustained high coverage with a combined MMR vaccine, have been critical in achieving that public health success. At present, routine measles and rubella surveillance in the United States will continue to rely upon already established diagnostic methods, including serum-based assays for detection of virus-specific antibodies and on nasopharyngeal swab or urine samples for virus detection.

References

  1. World Health Organization. Global measles and rubella laboratory network---update. Wkly Epidemiol Rec 2005;80:384--8.
  2. World Health Organization. Manual for the laboratory diagnosis of measles and rubella infection, 2nd ed. Geneva, Switzerland: World Health Organization; 2007. WHO/IVB/07.01. Available at http://www.who.int/immunization_monitoring/LabManualFinal.pdf.
  3. Ibrahim SA, Abdallah A, Saleh EA, Osterhaus ADM, De Swart RL. Measles virus-specific antibody levels in Sudanese infants: a prospective study using filter paper blood samples. Epidemiol Infect 2006;134:79--85.
  4. Riddell MA, Byrnes GB, Leydon JA, Kelly HA. Dried venous blood samples for the detection and quantification of measles IgG using a commercial enzyme immunoassay. Bull World Health Organ 2003;81:10.
  5. El Mubarak HS, Yüksel S, Mustafa OM, Ibrahim SA, Osterhaus AD, de Swart RL. Surveillance of measles in the Sudan using filter paper blood samples. J Med Virol 2004;73:624--30.
  6. Vyse AJ, Gay NJ, White JM, et al. Evolution of surveillance of measles, mumps, and rubella in England and Wales: providing the platform for evidence-based vaccination policy. Epidemiol Rev 2002;24:125--36.
  7. Vyse AJ, Jin L. An RT-PCR assay using oral fluid samples to detect rubella virus genome for epidemiological surveillance. Mol Cell Probes 2002;16:93--7.
  8. De Swart RL, Nur Y, Abdallah A, et al. Combination of reverse transcriptase PCR analysis and immunoglobulin M detection on filter paper blood samples allows diagnostic and epidemiological studies of measles. J Clin Microbiol 2001;39:270--3.
  9. Riddell MA, Leydon JA, Catton MG, et al. Detection of measles virus-specific immunoglobulin M in dried venous blood samples by using a commercial enzyme immunoassay. J Clin Microbiol 2002;40:5--9.
  10. Helfand RF, Cabezas C, Abernathy E, et al. Dried blood spots versus sera for detection of rubella virus-specific immunoglobulin M (IgM) and IgG in samples collected during a rubella outbreak in Peru. Clin Vaccine Immunol 2007;14:1522--5.

* As of 2008, four out of six World Health Organization regions have measles elimination goals: the Region of the Americas (by 2000; measles declared eliminated since late 2002), the European Region (by 2010), the Eastern Mediterranean Region (by 2010), and the Western Pacific Region (by 2012). In addition, two regions have rubella elimination goals: the Region of the Americas and the European Region (both by 2010).

Additional information available at http://www.cdc.gov/mmwr/preview/mmwrhtml/mm5718a5.htm and http://www.cdc.gov/mmwr/preview/mmwrhtml/mm5411a5.htm.


Figure 1

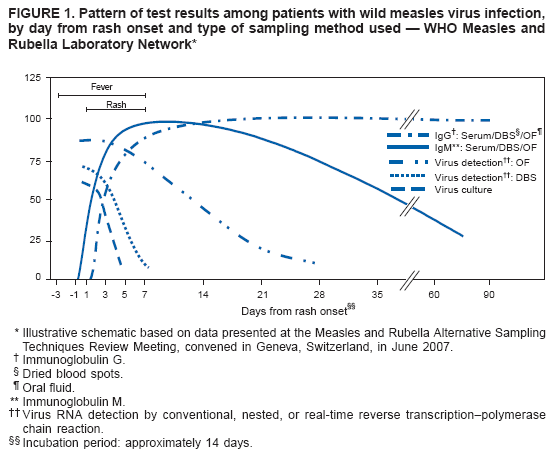

FIGURE 1. Pattern of test results among patients with wild measles virus infection, by day from rash onset and type of sampling method used — WHO Measles and
Rubella Laboratory Network*
Return to top.
Figure 2

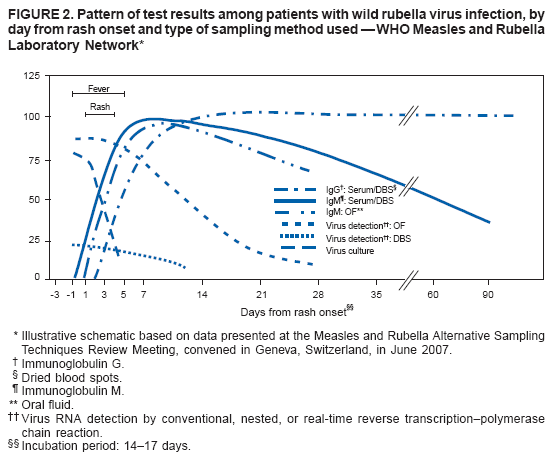

FIGURE 2. Pattern of test results among patients with wild rubella virus infection, by day from rash onset and type of sampling method used — WHO Measles and Rubella
Laboratory Network*
Return to top.
Table

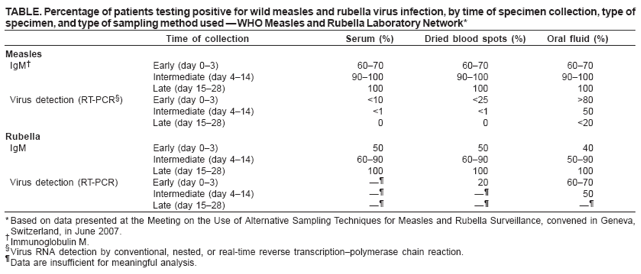

TABLE. Percentage of patients testing positive for wild measles and rubella virus infection, by time of specimen collection, type of specimen, and type of sampling method used — WHO Measles and Rubella Laboratory Network*
Time of collection
Serum (%)
Dried blood spots (%)
Oral fluid (%)
Measles
IgM†
Early (day 0–3)
60–70
60–70
60–70
Intermediate (day 4–14)
90–100
90–100
90–100
Late (day 15–28)
100
100
100
Virus detection (RT-PCR§)
Early (day 0–3)
<10
<25
>80
Intermediate (day 4–14)
<1
<1
50
Late (day 15–28)
0
0
<20
Rubella
IgM
Early (day 0–3)
50
50
40
Intermediate (day 4–14)
60–90
60–90
50–90
Late (day 15–28)
100
100
100
Virus detection (RT-PCR)
Early (day 0–3)
—¶
20
60–70
Intermediate (day 4–14)
—¶
—¶
50
Late (day 15–28)
—¶
—¶
—¶
* Based on data presented at the Meeting on the Use of Alternative Sampling Techniques for Measles and Rubella Surveillance, convened in Geneva, Switzerland, in June 2007.
†Immunoglobulin M.
§
Virus RNA detection by conventional, nested, or real-time reverse transcription–polymerase chain reaction.
¶
Data are insufficient for meaningful analysis.
