System To Generate Semisynthetic Data Sets of Outbreak Clusters for Evaluation of Outbreak-Detection Performance

Persons using assistive technology might not be able to fully access information in this file. For assistance, please send e-mail to: mmwrq@cdc.gov. Type 508 Accommodation and the title of the report in the subject line of e-mail.

Christopher A. Cassa,^1,2 K. Olson,^1,3 K. Mandl^{1,3

1}Children's Hospital Boston, Boston, Massachusetts; ²Massachusetts Institute of Technology, Cambridge, Massachusetts; ³Harvard Medical School, Boston, Massachusetts

Corresponding author: Christopher Cassa, Massachusetts Institute of Technology, 77 Massachusetts Ave., Rm. E25-519, Cambridge, MA 02139. Telephone: 617-355-2930; Fax: 617-730-0921; E-mail: cassa@mit.edu.

Abstract

Introduction: The outbreak detection performance of a syndromic surveillance system can be measured in terms of its ability to detect signal (disease outbreak) against background noise (normal variation of baseline disease within a region). However, because a limited number of persons have been infected with agents of biologic terrorism, such data are virtually nonexistent. Therefore, simulation is necessary. One approach to evaluation is to present detection algorithms with semisynthetic data sets. These data sets contain simulated signal superimposed on real background noise.

Objectives: The Children's Hospital Informatics Program (CHIP) Cluster Generator automates the creation of spatio-temporal patient cluster data to help evaluate epidemic-detection software. The spatio-temporal data can then be used to analyze the sensitivity and specificity of spatial or temporal detection algorithms.

Methods: A software tool (available at http://www.chip.org/biosurv/resources.htm) was created to generate artificial outbreaks of spatially clustered cases and inject them into background noise. Each cluster is defined by a controlled feature set. Parameters (e.g., outbreak magnitude, duration, temporal progression, and location) can be varied by the user.

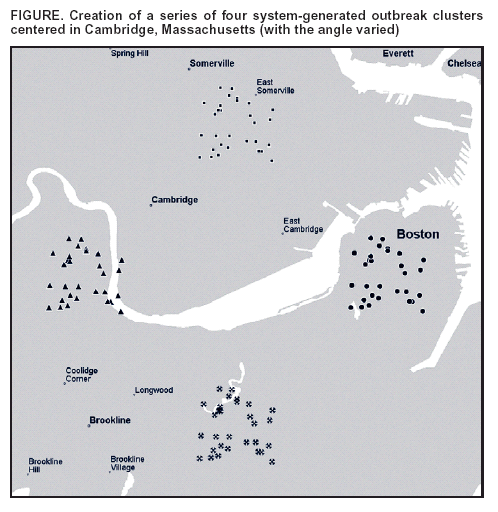

Results: The open-source program accepts a valid set of patient test cluster parameters and creates geospatial patient test data for a single cluster or a series of clusters. The tool automates the creation of valid patient data sets for rigorous testing of outbreak-detection algorithms. The tool outputs either single-patient clusters or series of patient clusters as files containing patient longitude and latitude coordinates. When used with geographic information system software, these clusters can be displayed on a map (Figure). In testing, all generated clusters were properly created within the parameters set at program execution. The cluster generator is in use for rigorous testing of outbreak-detection algorithms.

Conclusions: Automated generation of semisynthetic data sets facilitates evaluation of public health surveillance systems for early detection of outbreaks.
