Review of Measures of Worksite Environmental and Policy Supports for Physical Activity and Healthy Eating

J. Aaron Hipp, PhD; Dominic N. Reeds, MD; Margaret A. van Bakergem, MPH; Christine M. Marx, MA; Ross C. Brownson, PhD; Surya C. Pamulapati, MPH; Christine M. Hoehner, PhD

Suggested citation for this article: Hipp JA, Reeds DN, van Bakergem MA, Marx CM, Brownson RC, Pamulapati SC, et al. Review of Measures of Worksite Environmental and Policy Supports for Physical Activity and Healthy Eating. Prev Chronic Dis 2015;12:140410. DOI: http://dx.doi.org/10.5888/pcd12.140410.

PEER REVIEWED

PEER REVIEWED

Abstract

Introduction
Obesity prevention strategies are needed that target multiple settings, including the worksite. The objective of this study was to assess the state of science concerning available measures of worksite environmental and policy supports for physical activity (PA) and healthy eating (HE).

Methods
We searched multiple databases for instruments used to assess worksite environments and policies. Two commonly cited instruments developed by state public health departments were also included. Studies that were published from 1991 through 2013 in peer-reviewed publications and gray literature that discussed the development or use of these instruments were analyzed. Instrument administration mode and measurement properties were documented. Items were classified by general health topic, 5 domains of general worksite strategy, and 19 subdomains of worksite strategy specific to PA or HE. Characteristics of worksite measures were described including measurement properties, length, and administration mode, as well as frequencies of items by domain and subdomain.

Results
Seventeen instruments met inclusion criteria (9 employee surveys, 5 manager surveys, 1 observational assessment, and 2 studies that used multiple administration modes). Fourteen instruments included reliability testing. More items were related to PA than HE. Most instruments (n = 10) lacked items in the internal social environment domain. The most common PA subdomains were exercise facilities and lockers/showers; the most common HE subdomain was healthy options/vending.

Conclusion
This review highlights gaps in measurement of the worksite social environment. The findings provide a useful resource for researchers and practitioners and should inform future instrument development.

Top

Introduction

Overweight and obesity are major health challenges because of their high prevalence, causal relationship with serious medical complications, and economic impact (1). The risk of developing many diseases, including type 2 diabetes, increases linearly with body mass index (2–6). Obesity prevention strategies are needed that target multiple levels of the ecologic framework across multiple settings, including the worksite. Using the worksite as a venue for health promotion is promising, because most adults spend approximately half of their waking day in their work environment (6). Research suggests that environmental and policy strategies for addressing energy balance (ie, caloric intake and energy expenditure through physical activity [PA]) in the workplace are effective (7–9). Use of worksite programs to improve employee health has been recommended by the American Cancer Society, the Centers for Disease Control and Prevention, and multiple state governments. Occupational settings take advantage of a captive population and may have existing facilities, social support, convenience, and communication mechanisms in place (10).

Targeting work environments for energy balance includes using policies, programs, and organizational practices to influence behavior. Example work environments include onsite facilities such as gymnasiums, lockers, showers, accessible stairways, and healthy vending options. Policies and programs include subsidized external gymnasium memberships; incentives to bicycle, walk, or use public transportation for the commute to and from work; and group services such as onsite yoga and health fairs (11). By facilitating access to inexpensive healthy food, exercise facilities, and a culture accepting of nonsedentary work breaks, worksites can become sites for health promotion via a healthy energy balance (6). Although tools are available for assessing worksite environments and policies in place for PA and healthy eating (HE), no review has documented the content and measurement properties of these tools. Such a review of worksite energy measurement tools could serve as a guide for researchers, practitioners, and worksites in selecting among existing tools and understanding methodologic gaps to guide potential development of new instruments. The purpose of this review was to identify and assess the state of science concerning available measurement instruments related to worksite environment and policy supports for workplace energy balance.

Top

Methods

The literature review was completed in May 2014, using PubMed, OVID, MedLine, Web of Science, and the Registry of Measures from the National Collaborative on Childhood Obesity. We also searched sources of gray literature, including Google Scholar and state health departments. Search terms were key words for worksites, energy balance, and measurement: (work OR worksite OR workplace OR employer OR job) AND (physical activity OR physical fitness OR diet OR exercise OR obesity OR active commuting) AND (evaluation OR monitor* OR survey OR questionnaire OR data collection). Titles of applicable results were screened for their relevance to the assessment of worksite environment and policy measurement, tool development, and worksite interventions targeting PA and HE.

The search was restricted to articles published in English from 1991 through 2013. Abstracts were scanned and accepted if related to 1 or more of the following criteria designed to capture the presence or absence of worksite supports and policies associated with employee PA and HE (eg, presence of an onsite gymnasium, incentives to use public transportation to and from work): 1) studies describing measurement properties of a specific instrument, 2) descriptive studies of environmental and policy supports among a sample of employees or worksites, and 3) cross-sectional or intervention studies that used a specified instrument or explicitly stated the items used to systematically assess worksite environment and policies and their potential associations with PA and HE. Full-text articles were scanned when the information from abstracts was insufficient to make a conclusion about inclusion. Abstracts were excluded if they focused solely on the development or implementation or both of worksite health promotion programs and, thus, were not related to measuring current supports and policies. Moreover, abstracts were rejected if they did not emphasize policy or environmental supports in a nonhome-based worksite. Finally, full-text articles and their reference lists were scanned for references that cited the development of a specific worksite tool, survey, or checklist on policies and environmental supports related to PA and HE. The instruments used among articles that met inclusion criteria were abstracted. Each instrument was categorized on the basis of 1 of 4 administration options: employee or self-report, manager report, observational, or multiple modes. Measurement properties, including reliability and validity, were documented.

The final component of the review involved classifying each unique instrument item into an item inventory. Items were first classified by the general health topic they addressed: PA, HE, or both (healthy eating and physical activity [HEPA]). Next, items were classified by the general worksite strategy being assessed, referred to as the primary domain. These strategies are based on the ecological model, the Guide to Community Preventive Services, and research by Kahn et al (12,13) and include promotions and programs (eg, informational media), organizational policies and practices (eg, incentives), internal physical environment (eg, access to healthy food and PA options), internal social environment (eg, role models), and external environment (eg, worksite neighborhood options for HE and PA). Primary domains were further disaggregated into subdomains by using constant comparison to classify the PA (19 subdomains) and HE (19 subdomains) strategies (Table 1). Interrater agreement for classifying the instrument items was 85% among 3 raters.

Top

Results

Seventeen worksite instruments were identified that included items about worksite environment and policies related to PA, HE, or both and met inclusion criteria. The administration modes of the 17 instruments varied (n = 9 self-report; n = 5 manager report, n = 1 observational; and n = 2 using multiple modes) as did the total number of HE and PA items per instrument (range, 10–226) ( Table 2). More items were related to PA than to HE. Nine instruments included both PA and HE items, 7 instruments had only PA items, and only 1 included solely HE items related to worksite environment and policy supports. Of the 17 instruments, 14 reported reliability, of which 8 reported generally high interrater results (Table 2). Five instruments reported various validity measures including content, face, predictive, and construct validity results. Health promotion experts provided substantial guidance in development of the instruments, and significant correlations were found for workplace environmental sections within the instruments. The item inventory indicated that the most common health topic was PA (PA and HEPA) (64% of all items [n = 669]). HE (HE and HEPA) consisted of 369 items, or 36%.

Physical activity

Two instruments, the Environmental Assessment Tool (EAT) (29) and the Checklist of Health Promotion Environments at Worksites (CHEW) (34), had the highest number of PA items (151 and 107, respectively) and used multiple modes of administration. Of the 17 instruments, only 1, Working Well Trial (WWT) (33), did not contain items related to PA. Of the surveys with PA items, most (14 of 16) included at least 1 item related to the external environment relevant for PA (Figure 1). The domain that was represented by the fewest number of instruments was the internal social environment, with only 7 total instruments containing at least 1 PA item for that domain. In terms of subdomains, only 1 instrument contained an item related to community partnerships, workplace challenges, or office connectivity, whereas 12 covered the subdomains counseling/classes/education, access to PA equipment, and lockers and showers.

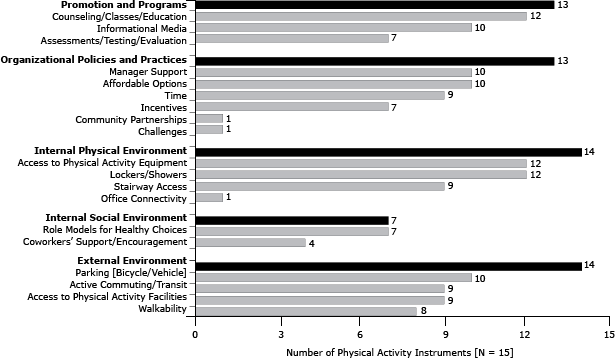

Figure 1. Number of instruments containing at least 1 item from each physical activity domain and subdomain (N = 15), review of measures of worksite environmental and policy supports for physical activity and healthy eating, United States, 1991–2013. [A tabular version of this figure is also available.]

Specific results for each instrument were also explored. Of the 19 subdomains for PA-related items, the California Worksite Assessment Checklist (CA) instrument included items covering the most subdomains (16 of 19 subdomains). The Workplace Walkability Audit Tool (WWAT) instrument covered the fewest subdomains (1 of 17 subdomains).

Healthy eating

Of the 5 primary domains, 3 (promotion and programs, organizational policies and practices, and internal physical environment) had the greatest coverage, with 9 of the 10 healthy eating instruments containing at least 1 item for each respective primary domain (Figure 2). Similar to the findings for PA domain coverage, the primary domain with the least coverage was the internal social environment; 5 of the 10 HE instruments covered that topic. Additionally, a noticeable gap is indicated through the external environment primary domain; only 6 instruments covered HE items related to the external food environment of worksites. The California Worksite Assessment Checklist (CA) instrument (21) spanned the greatest number of HE subdomains (15 of 19 subdomains). The HE instrument with the least coverage, Workplace Nutrition and Exercise Climate Scale (WNECS) (25), included items across 5 of the 19 subdomains.

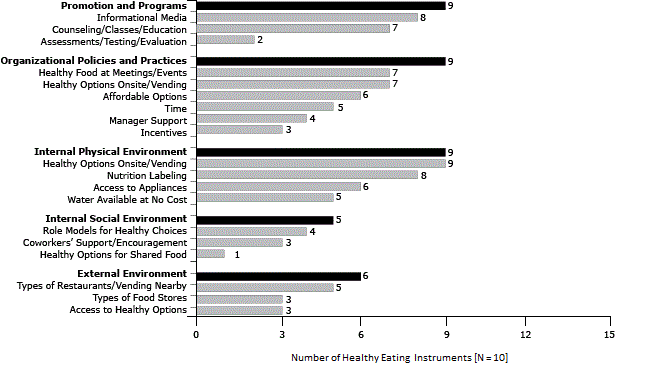

Figure 2. Number of instruments containing at least 1 item from each healthy eating domain and subdomain (N = 10), review of measures of worksite environmental and policy supports for physical activity and healthy eating, United States, 1991–2013. [A tabular version of this figure is also available.]

Top

Discussion

As a venue for delivering HE and PA efforts, worksites provide a channel for reaching the large segment of the population that is employed (147 million as of November 2014, according to the US Bureau of Labor Statistics) (6,10). Moreover, measuring environmental and policy supports for PA and HE in the workplace is an important component in assessing and addressing the factors related to overweight and obesity (14). This review of worksite measures identified various data collection instruments and highlights several matters that require further consideration and attention for future research.

The results of the item inventory highlight both extensive and deficient domain coverage for both PA- and HE-related items. Overall, the primary domains of promotion and programs, organizational policies and practices, and internal physical environment had the greatest coverage among HE and PA items. The primary domain of internal social environment had few items for either HE or PA. We also found several administration modes used, most instruments being self-report. Only 1 instrument was observational (WWAT), although several used multiple methods. With 14 of the 17 instruments relying on either employee or manager self-report, the state of worksite PA and HE measurement is susceptible to respondent and social desirability bias. Regarding measurement properties, most instruments (14 of 17) reported high reliability results, mostly interrater measures. Validity was assessed for 5 instruments, with emphasis on content validation.

There was variety in the content gaps of the measures reviewed. Overall, there were few documented measures about HE in and around the workplace. Most HE measures focused on onsite cafeteria and vending options but neglected external environments (eg, healthy options within a 10-minute walk), organizational policies (eg, healthy snacks at meetings and events), and the social environment. The promotion and programs domain contains 8 measures with items related to informational media and 7 with classes or education (both subdomains); however, only 2 of 10 instruments included any items on assessments, testing, evaluation, and HE. Provided that a full-time employee spends at least 8 hours per day at the worksite — therefore, at least 1 meal is consumed at or near work during most working days — the gaps in HE measures is an important finding that deserves further attention. Exploring the diverse aspects of food environments near workplaces, rather than solely assessing onsite cafeteria and vending options, would be beneficial.

Of the 5 domains, internal social environment was included in the fewest HE- and PA-related instruments. Social environments, including role models, champions, and support, are highly associated with PA and obesity (15,16). Among the subdomains, specialized instruments (ie, Office Environment and Sitting Scale [20], Kaczynski et al [22], and the WWAT [30]) had minimal, if any, coverage. Also, despite including more than 100 unique items, CHEW had minimal coverage for the HE subdomains (only 9 of 19 subdomains covered) (Appendix).

Performing this review did have challenges and limitations. Forcing instrument items into domains and especially subdomains presented some difficulties in operationalizing the specific items. Items could also fit into more than 1 subdomain. The process of developing the subdomains was iterative; new items forced ever greater specificity in the naming and operationalization of the 38 subdomains. However, the specificity of selected subdomains — such as walkability, which can include land use mix, aesthetics, and sidewalks, compared with stairway access, which only refers to the presence of stairs — still varies greatly. We were systematic and prescriptive in our literature search for worksite measures, but this may not be an exhaustive list of worksite instruments, especially those present in the gray literature. Finally, Carnethon and colleagues (17) suggest that efforts moving forward must not only focus on PA but also reduce sedentary behaviors at worksites, and this can be accomplished via policies and designs. Future worksite measurements must do a better job of including sedentary behaviors in their instruments.

This review provides a concise guide for employers to existing worksite measures on PA and HE, both for selecting appropriate assessment instruments for the worksite and as a means to introduce new policies and programs to support healthy workers. For example, employers can administer health risk appraisals in combination with organizational health promotion checklists that have been developed. This approach would provide information to the employee and employer where there may be overlap or gaps between worksite supports and health risks and benefits. Social and physical environments in and around the workplace should be designed to be conducive to recommended healthy behaviors (18). In addition, optimal environmental modifications should promote healthy behaviors while simultaneously minimizing the physical, organizational, and occupational risk in the work environment.

Top

Acknowledgments

This study was supported by the National Cancer Institute’s Centers for Transdisciplinary Research on Energetics and Cancer (TREC 2011–2016; no. U54 CA155496) and National Institutes of Health (NIH)/National Institute of Diabetes and Digestive and Kidney Diseases (NIDDK) no. P30DK092950 and the Washington University Center for Diabetes Translation Research (WU-CDTR). This article’s contents are solely the responsibility of the authors and do not necessarily represent the official view of the WU-CDTR, NIDDK, or NIH. We acknowledge the support of the Washington University Institute for Public Health for cosponsoring, with the WU-CDTR, the Next Steps in Public Health event that led to the development of this article. We thank Lina Cai and Calista Alaribe for their assistance with the literature review.

Top

Author Information

Corresponding Author: J. Aaron Hipp, PhD, Brown School, Prevention Research Center, Washington University in St Louis, One Brookings Dr, Campus Box 1196, St Louis, MO 63130. Telephone: 314-935-3868. Email: ahipp@wustl.edu.

Author Affiliations: Dominic N. Reeds, Christine M. Marx, Washington University School of Medicine, St Louis, Missouri; Margaret A. van Bakergem, Vanderbilt University Medical Center, Nashville, Tennessee; Ross C. Brownson, Christine M. Hoehner, Prevention Research Center, Washington University in St Louis, St Louis, Missouri; Surya C. Pamulapati, University of Missouri, Columbia, Columbia, Missouri.

Top

References

1. James WP. WHO recognition of the global obesity epidemic. Int J Obes 2008;32(Suppl 7):S120–6. CrossRef PubMed
2. Needham BL, Epel ES, Adler NE, Kiefe C. Trajectories of change in obesity and symptoms of depression: the CARDIA study. Am J Public Health 2010;100(6):1040–6. CrossRef PubMed
3. Logue J, Murray HM, Welsh P, Shepherd J, Packard C, Macfarlane P, et al. Obesity is associated with fatal coronary heart disease independently of traditional risk factors and deprivation. Heart 2011;97(7):564–8. CrossRef PubMed
4. Yang L, Hipp JA, Marx CM, Brownson RC. Occupational sitting and weight status in a diverse sample of employees in Midwest metropolitan cities, 2012–2013. Prev Chronic Dis 2014;11:140286. CrossRef PubMed
5. Kitahara CM, Flint AJ, Berrington de Gonzalez A, Bernstein L, Brotzman M, MacInnis RJ, et al. Association between class III obesity (BMI of 40–59 kg/m²) and mortality: a pooled analysis of 20 prospective studies. PLoS Med 2014;11(7):e1001673. PubMed
6. Gorman E, Ashe MC, Dunstan DW, Hanson HM, Madden K, Winkler EAH, et al. Does an ‘activity-permissive’ workplace change office workers’ sitting and activity time? PLoS ONE 2013;8(10):e76723. CrossRef PubMed
7. Choi B, Schnall P, Dobson M, Israel L, Landsbergis P, Galassetti P, et al. Exploring occupational and behavioral risk factors for obesity in firefighters: a theoretical framework and study design. Saf Health Work 2011;2(4):301–12. CrossRef PubMed
8. Faghri PD, Kotejoshyer R, Cherniack M, Reeves D, Punnett L. Assessment of a worksite health promotion readiness checklist. J Occup Environ Med 2010;52(9):893–9. CrossRef PubMed
9. Division of Nutrition. Physical Activity, and Obesity. Atlanta (GA): Centers for Disease Control and Prevention; 2009. http://www.cdc.gov/nccdphp/dnpa/index.htm. Accessed April 14, 2009.
10. Engbers LH, van Poppel MN, Chin A Paw MJ, van Mechelen W. Worksite health promotion programs with environmental changes: a systematic review. Am J Prev Med 2005;29(1):61–70. CrossRef PubMed
11. Dodson EA, Lovegreen SL, Elliott MB, Haire-Joshu D, Brownson RC. Worksite policies and environments supporting physical activity in midwestern communities. Am J Health Promot 2008;23(1):51–5. CrossRef PubMed
12. Sallis JF, Cervero RB, Ascher W, Henderson KA, Kraft MK, Kerr J. An ecological approach to creating active living communities. Annu Rev Public Health 2006;27:297–322. CrossRef PubMed
13. Kahn EB, Ramsey LT, Brownson RC, Heath GW, Howze EH, Powell KE, et al. The effectiveness of interventions to increase physical activity. A systematic review. Am J Prev Med 2002;22(4, Suppl):73–107. CrossRef PubMed
14. Anderson LM, Quinn TA, Glanz K, Ramirez G, Kahwati LC, Johnson DB, et al. The effectiveness of worksite nutrition and physical activity interventions for controlling employee overweight and obesity: a systematic review. Am J Prev Med 2009;37(4):340–57. CrossRef PubMed
15. Christakis NA, Fowler JH. The spread of obesity in a large social network over 32 years. N Engl J Med 2007;357(4):370–9. CrossRef PubMed
16. McNeill LH, Kreuter MW, Subramanian SV. Social environment and physical activity: a review of concepts and evidence. Soc Sci Med 2006;63(4):1011–22. CrossRef PubMed
17. Carnethon M, Whitsel LP, Franklin BA, Kris-Etherton P, Milani R, Pratt CA, et al. Worksite wellness programs for cardiovascular disease prevention: a policy statement from the American Heart Association. Circulation 2009;120(17):1725–41. CrossRef PubMed
18. Adlakha D, Hipp AJ, Marx C, Yang L, Tabak R, Dodson EA, et al. Home and workplace built environment supports for physical activity. Am J Prev Med 2015;48(1):104–7. CrossRef PubMed
19. Hoehner CM, Budd EL, Marx CM, Dodson EA, Brownson RC. Development and reliability testing of the Worksite and Energy Balance Survey. J Public Health Manag Pract 2013;19(3, Suppl 1):S105–13. CrossRef PubMed
20. Duncan MJ, Rashid M, Vandelanotte C, Cutumisu N, Plotnikoff RC. Development and reliability testing of a self-report instrument to measure the office layout as a correlate of occupational sitting. Int J Behav Nutr Phys Act 2013;10(1):16. CrossRef PubMed
21. Check for health workplace environmental assessment. Sacramento (CA): California Department of Health Care Services; 2006.
22. Kaczynski AT, Bopp MJ, Wittman P. Association of workplace supports with active commuting. Prev Chronic Dis 2010;7(6):A127. PubMed
23. Blunt GH, Hallam JS. The Worksite Supportive Environments for Active Living Survey: development and psychometric properties. Am J Health Promot 2010;25(1):48–57. CrossRef PubMed
24. Well workplace checklist. Wellness Council Wisconsin; 2005; https://www.wellnesscouncilwi.org/Pages/42/Well_Workplace_Checklist.aspx. Accessed February 4, 2015.
25. Basen-Engquist K, Hudmon KS, Tripp M, Chamberlain R. Worksite health and safety climate: scale development and effects of a health promotion intervention. Prev Med 1998;27(1):111–9. CrossRef PubMed
26. Spittaels H, Foster C, Oppert J-M, Rutter H, Oja P, Sjöström M, et al. Assessment of environmental correlates of physical activity: development of a European questionnaire. Int J Behav Nutr Phys Act 2009;6(1):39. CrossRef PubMed
27. Kim S, Adamson KC, Balfanz DR, Brownson RC, Wiecha JL, Shepard D, et al. Development of the Community Healthy Living Index: a tool to foster healthy environments for the prevention of obesity and chronic disease. Prev Med 2010;50(Suppl 1):S80–5. CrossRef PubMed
28. Shimotsu ST, French SA, Gerlach AF, Hannan PJ. Worksite environment physical activity and healthy food choices: measurement of the worksite food and physical activity environment at four metropolitan bus garages. Int J Behav Nutr Phys Act 2007;4(1):17. CrossRef PubMed
29. DeJoy DM, Wilson MG, Goetzel RZ, Ozminkowski RJ, Wang S, Baker KM, et al. Development of the Environmental Assessment Tool (EAT) to measure organizational physical and social support for worksite obesity prevention programs. J Occup Environ Med 2008;50(2):126–37. CrossRef PubMed
30. Dannenberg AL, Cramer TW, Gibson CJ. Assessing the walkability of the workplace: a new audit tool. Am J Health Promot 2005;20(1):39–44. CrossRef PubMed
31. Crespo NC, Sallis JF, Conway TL, Saelens BE, Frank LD. Worksite physical activity policies and environments in relation to employee physical activity. American Journal of Health Promotion 2011;25(4):264-71.
32. Plotnikoff RC, Prodaniuk TR, Fein AJ, Milton L. Development of an ecological assessment tool for a workplace physical activity program standard. Health Promot Pract 2005;6(4):453–63. CrossRef PubMed
33. Biener L, Glanz K, McLerran D, Sorensen G, Thompson B, Basen-Engquist K, et al. Impact of the Working Well Trial on the worksite smoking and nutrition environment. Health Educ Behav 1999;26(4):478–94. CrossRef PubMed
34. Oldenburg B, Sallis JF, Harris D, Owen N. Checklist of Health Promotion Environments at Worksites (CHEW): development and measurement characteristics. Am J Health Promot 2002;16(5):288–99. CrossRef PubMed
35. Golaszewski T, Barr D, Pronk N. Development of assessment tools to measure organizational support for employee health. Am J Health Behav 2003;27(1):43–54. CrossRef PubMed

Top

Tables

Table 1. Physical Activity and Healthy Eating Domain Details, Review of Measures of Worksite Environmental and Policy Supports for Physical Activity and Healthy Eating, United States, 1991–2013

Abbreviations: HE, healthy eating; PA, Physical activity.

Table 2. Worksite Questionnaire Details, Review of Measures of Worksite Environmental and Policy Supports for Physical Activity and Healthy Eating, United States, 1991–2013

Abbreviations: HE, healthy eating; NA, not applicable; NR, not reported; PA, physical activity.

Top

Appendix

A. Supplemental figure. Breakdown of Worksite Instrument by Administration Mode, Review of Measures of Worksite Environmental and Policy Supports for Physical Activity and Healthy Eating, United States, 1991–2013. This file is available for download as a Microsoft Word document [DOCX — 19 KB].

B. Supplemental figure. Subdomain Coverage by Instrument, Review of Measures of Worksite Environmental and Policy Supports for Physical Activity and Healthy Eating, United States, 1991–2013. This file is available for download as a Microsoft Word document [DOC — 108 KB].
