Schistosomiasis

[Schistosoma haematobium] [Schistosoma intercalatum] [Schistosoma japonicum] [Schistosoma mansoni] [Schistosoma mekongi]

Causal Agents

Schistosomiasis (Bilharziasis) is caused by some species of blood trematodes (flukes) in the genus Schistosoma. The three main species infecting humans are Schistosoma haematobium, S. japonicum, and S. mansoni. Three other species, more localized geographically, are S. mekongi, S. intercalatum, and S. guineensis (previously considered synonymous with S. intercalatum). There have also been a few reports of hybrid schistosomes of cattle origin (S. haematobium, x S. bovis, x S. curassoni, x S. mattheei) infecting humans. Unlike other trematodes, which are hermaphroditic, Schistosoma spp. are dioecous (individuals of separate sexes).

In addition, other species of schistosomes, which parasitize birds and mammals, can cause cercarial dermatitis in humans but this is clinically distinct from schistosomiasis.

Life Cycle

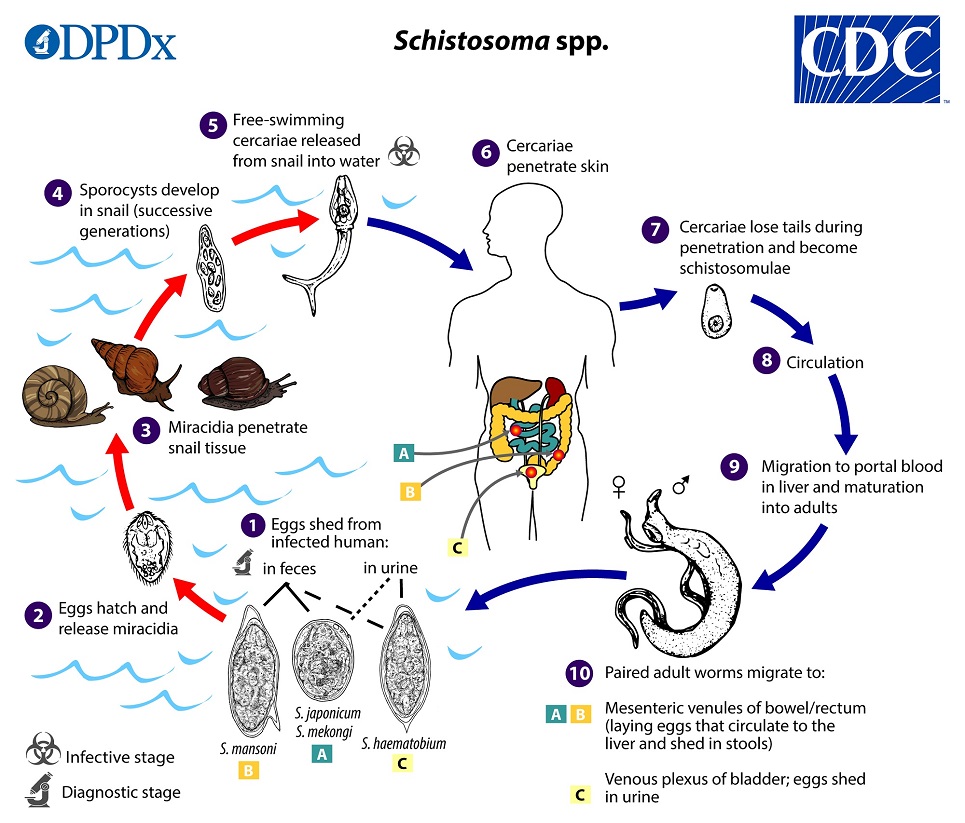

Schistosoma eggs are eliminated with feces or urine, depending on species image . Under appropriate conditions the eggs hatch and release miracidia image , which swim and penetrate specific snail intermediate hosts image . The stages in the snail include two generations of sporocysts image and the production of cercariae image . Upon release from the snail, the infective cercariae swim, penetrate the skin of the human host image , and shed their forked tails, becoming schistosomulae image . The schistosomulae migrate via venous circulation to lungs, then to the heart, and then develop in the liver, exiting the liver via the portal vein system when mature, image image . Male and female adult worms copulate and reside in the mesenteric venules, the location of which varies by species (with some exceptions) image . For instance, S. japonicum is more frequently found in the superior mesenteric veins draining the small intestine image , and S. mansoni occurs more often in the inferior mesenteric veins draining the large intestine image . However, both species can occupy either location and are capable of moving between sites. S. intercalatum and S. guineensis also inhabit the inferior mesenteric plexus but lower in the bowel than S. mansoni. S. haematobium most often inhabitsin the vesicular and pelvic venous plexus of the bladder image , but it can also be found in the rectal venules. The females (size ranges from 7–28 mm, depending on species) deposit eggs in the small venules of the portal and perivesical systems. The eggs are moved progressively toward the lumen of the intestine (S. mansoni,S. japonicum, S. mekongi, S. intercalatum/guineensis) and of the bladder and ureters (S. haematobium), and are eliminated with feces or urine, respectively image .

Hosts

Various animals such as cattle, dogs, cats, rodents, pigs, horses, and goats, serve as reservoirs for S. japonicum, and dogs for S. mekongi. S. mansoni is also frequently recovered from wild primates in endemic areas but is considered primarily a human parasite and not a zoonosis.

Intermediate hosts are snails of the genera Biomphalaria, (S. mansoni), Oncomelania (S. japonicum), Bulinus (S. haematobium, S. intercalatum, S. guineensis). The only known intermediate host for S. mekongi is Neotricula aperta.

Geographic Distribution

Schistosoma mansoni is found primarily across sub-Saharan Africa and some South American countries (Brazil, Venezuela, Suriname) and the Caribbean, with sporadic reports in the Arabian Peninsula.

S. haematobium is found in Africa and pockets of the Middle East.

S. japonicum is found in China, the Philippines, and Sulawesi. Despite its name, it has long been eliminated from Japan.

The other, less common human-infecting species have relatively restricted geographic ranges. S. mekongi occurs focally in parts of Cambodia and Laos. S. intercalatum has only been found in the Democratic Republic of the Congo; S. guineensis is found in West Africa. Instances of infections with hybrid/introgressed Schistosoma (S. haematobium x S. bovis, x S. curassoni, x S. mattheei) have occurred in Corsica, France, and some West African countries.

Clinical Presentation

Symptoms of schistosomiasis are not caused by the worms themselves but by the body’s reaction to the eggs. Many infections are asymptomatic. A local cutaneous hypersensitivity reaction following skin penetration by cercariae may occur and appears as small, itchy maculopapular lesions. Acute schistosomiasis (Katayama fever) is a systemic hypersensitivity reaction that may occur weeks after the initial infection, especially by S. mansoni and S. japonicum. Manifestations include systemic symptoms/signs including fever, cough, abdominal pain, diarrhea, hepatosplenomegaly, and eosinophilia.

Occasionally, Schistosoma infections may lead to central nervous system lesions. Cerebral granulomatous disease may be caused by ectopic S. japonicum eggs in the brain, and granulomatous lesions around ectopic eggs in the spinal cord may occur in S. mansoni and S. haematobium infections. Continuing infection may cause granulomatous reactions and fibrosis in the affected organs (e.g., liver and spleen) with associated signs/symptoms.

Pathology associated with S. mansoni and S. japonicum schistosomiasis includes various hepatic complications from inflammation and granulomatous reactions, and occasional embolic egg granulomas in brain or spinal cord. Pathology of S. haematobium schistosomiasis includes hematuria, scarring, calcification, squamous cell carcinoma, and occasional embolic egg granulomas in brain or spinal cord.



Schistosoma mansoni eggs.



Schistosoma mansoni eggs are large (114 to 180 µm long by 45-70 µm wide) and have a characteristic shape, with a prominent lateral spine near the posterior end. The anterior end is tapered and slightly curved. When the eggs are excreted in stool, they contain a mature miracidium.
Figure A: Egg of S. mansoni in an unstained wet mount. Images courtesy of the Wisconsin State Laboratory of Hygiene.
Figure B: Egg of S. mansoni in an unstained wet mount. Images courtesy of the Wisconsin State Laboratory of Hygiene.
Figure C: Egg of S. mansoni in an unstained wet mount. Images courtesy of the Missouri State Public Health Laboratory.
Figure D: Egg of S. mansoni in an unstained wet mount. Images courtesy of the Missouri State Public Health Laboratory.
Figure E: Eggs of S. mansoni in an unstained wet mount.
Figure F: Egg of S. mansoni in an unstained wet mount.
Schistosoma haematobium eggs.



The eggs of Schistosoma haematobium are large (110-170 µm long by 40-70 µm wide) and bear a conspicuous terminal spine. Eggs contain a mature miracidium when shed in urine.
Figure A: Egg of S. haematobium in a wet mount of urine concentrates, showing the characteristic terminal spine.
Figure B: Egg of S. haematobium in a wet mount of urine concentrates, showing the characteristic terminal spine.
Figure C:Egg of S. haematobium in a wet mount of a urine concentrate.
Schistosoma japonicum eggs.



The eggs of Schistosoma japonicum are large and more rounded than other species, measuring 70-100 µm long by 55-64 µm wide. The spine on S. japonicum eggs is smaller and less conspicuous than other species. Eggs are shed in stool.
Figure A: Egg of S. japonicum in an unstained wet mount. Note the small, inconspicuous spines (red arrows).
Figure B: Egg of S. japonicum in an unstained wet mount. Note the small, inconspicuous spines (red arrows).
Figure C: Egg of S. japonicum in an unstained wet mount of stool. The spine is not visible in either of these specimens.
Figure D: Egg of S. japonicum in an unstained wet mount of stool. The spine is not visible in either of these specimens.
Figure E: Egg of S. Japonicum in an unstained wet mount of stool.
Figure F: Egg of S. japonicum in an unstained wet mount of stool.
Schistosoma intercalatum eggs.



Schistosoma intercalatum is related to S. haematobium, but restricted to east-central Africa. The eggs are similar to S. haematobium in general shape and in possessing a terminal spine, but are usually longer (140-240 µm), often have an equatorial (central) bulge and are shed in stool, not urine.
Figure A: Egg of S. intercalatum in a wet mount.
Figure B: Egg of S. intercalatum in a wet mount.
Schistosoma mekongi eggs.



Schistosoma mekongi is a species similar to S. japonicum that is restricted to the Mekong River area of southeast Asia. The eggs are similar to S. japonicum, but are generally smaller (50-80 µm by 40-65 µm). They also contain a small, inconspicuous spine and are shed in stool.
Figure A: Egg of S. mekongi. Note the inconspicuous spine (red arrow).
Schistosoma spp. eggs in tissue, stained with hematoxylin and eosin (H&E).



Eggs of Schistosoma spp. in tissue sections, stained with hematoxylin and eosin (H&E).
Figure A: Eggs of S. mansoni in liver tissue, stained with H&E. Images courtesy of Dr. Munaf Desai, Al Qassini Hospital, Shatjah, United Arab Emirates.
Figure B: Higher magnification of the specimen in Figure A.
Figure C: Eggs of S. japonicum from tissue, stained with H&E. at 200x magnification.
Figure D: Eggs of S. japonicum from tissue, stained with H&E. at 400x magnification.
Figure E: Eggs of S. haematobium in a urinary bladder biopsy specimen, stained with H&E. Images courtesy of the Michael E. DeBakey V. A. Medical Center, Houston, TX.
Figure F: Egg of S. haematobium in a urinary bladder biopsy specimen, stained with H&E. Images courtesy of the Michael E. DeBakey V. A. Medical Center, Houston, TX.
Schistosoma mansoni adults.



Adults of Schistosoma mansoni. Unlike the flukes, adult schistosomes have the sexes separate, with the female residing in a gynecophoral canal within the male. Male worms are robust, tuberculate and measure 6-12 mm in length. Females are longer (7-17 mm in length) and slender. Adult S. mansoni reside in the venous plexuses of the colon and lower ileum and in the portal system of the liver of their host.
Figure A: Adults of S. mansoni. The thin female resides in the gynecophoral canal of the thicker male.
Figure B: Adults of S. mansoni. The thin female resides in the gynecophoral canal of the thicker male. Note the tuberculate exterior of the male.
Cross-sections of human tissues with Schistosoma spp. adults.



Adult Schistosoma spp. in tissue sections, stained with hematoxylin and eosin (H&E).
Figure A: Adults of Schistosoma sp. in lung tissue, stained with H&E. Image courtesy of Harvard Medical School, Cambridge, MA.
Figure B: Higher magnification of one of the worms in Figure A, showing the tuberculate exterior of the adult worm.
Figure C: Adults of Schistosoma spp. in lung tissue, stained with H&E. Images courtesy of Harvard Medical School, Cambridge, MA.
Figure D: Adults of Schistosoma spp. in lung tissue, stained with H&E. Images courtesy of Harvard Medical School, Cambridge, MA.
Intermediate hosts for Schistosoma spp.



The intermediate hosts of Schistosoma spp. are various species of freshwater snails. Eggs are shed from the human host in feces or urine. Under optimal conditions in the environment, the eggs hatch and release miracidia, which swim and penetrate specific snail intermediate hosts. The stages in the snail include two generations of sporocysts and the production of cercariae. Upon release from the snail, the infective cercariae swim and penetrate the skin of the human host, where maturation of the worms continues. Oncomelania spp. are the intermediate hosts for S. japonicum, while Neotricula spp. are the intermediate hosts for S. mekongi. Biomphalaria spp. are the intermediate hosts for S. mansoni, both in the New and Old Worlds. Bulinus spp. are the intermediate hosts for S. haematobium and S. intercalatum.
Figure A: Biomphalaria sp., the intermediate host for S. mansoni..
Figure B: Bulinus sp., the intermediate host for S. haematobium and S. intercalatum.
Figure C: Oncomelania sp., the intermediate host for S. japonicum.

Laboratory Diagnosis

Microscopic identification of eggs in stool or urine is the usual method for diagnosis. Stool examination should be performed when infection with S. mansoni or S. japonicum is suspected, and urine examination should be performed if S. haematobium is suspected. Eggs can be present in the stool in infections with all Schistosoma species. The examination can be performed on a simple smear (1 to 2 mg of fecal material). Since eggs may be passed intermittently or in small amounts, their detection will be enhanced by repeated examinations and/or concentration procedures (such as the formalin-ethyl acetate technique). In addition, for field surveys and investigational purposes, the egg output can be quantified by using the Kato-Katz technique (20 to 50 mg of fecal material; the standard Kato-Katz template is calibrated to 41.7 mg) or formalin ethyl acetate concentration. Further, homogenization of the whole fecal sample may enhance recovery of eggs for S. japonicum, as eggs may have an uneven distribution within feces. Eggs can be found in the urine in infections with S. haematobium (recommended time for collection: between noon and 3 PM) and with S. japonicum. Detection will be enhanced by centrifugation and examination of the sediment. Quantification is possible by using filtration through a polycarbonate membrane of a standard volume of urine followed by egg counts on the membrane. Tissue biopsy (rectal biopsy for all species and biopsy of the bladder for S. haematobium) may demonstrate eggs when stool or urine examinations are negative.

More on: Morphologic comparison with other intestinal parasites

Antibody detection

Antibody detection can be useful to indicate schistosome infection in patients who have traveled in schistosomiasis endemic areas and in whom eggs cannot be demonstrated in fecal or urine specimens. Test sensitivity and specificity vary widely among the many tests reported for the serologic diagnosis of schistosomiasis and are dependent on both the type of antigen preparations used (crude, purified, adult worm, egg, cercarial) and the test procedure.

At CDC, a combination of tests with purified adult worm antigens is used for antibody detection. Serum specimens are first tested by FAST-ELISA using Schistosoma mansoni adult microsomal antigen (MAMA). A positive reaction indicates infection with Schistosoma species. Because test sensitivity with the FAST-ELISA is reduced for species other than S. mansoni, immunoblots of the species appropriate to the patient’s travel history are also tested to improve detection of S. haematobium and S. japonicum infections (MAMA – S. mansoni, HAMA – S. haematobium, JAMA –S. japonicum). However, cross-reaction with S. mekongi, S. intercalatum, and S. guineensis specimens has not yet been assessed. The presence of antibody is indicative only of schistosome infection at some time and cannot be correlated with clinical status, worm burden, egg production, or prognosis. When submitting specimens, please include the patient’s travel history so the appropriate Schistosoma species will be tested by immunoblot.

Laboratory Safety

Standard protocols apply for the processing of stool, urine, and/or serum samples. Schistosoma spp. eggs are not infectious to humans, however, precautions should still be taken to avoid exposure to other pathogens that may be present in stools.

Suggested Reading

Clinical Care of Schistosomiasis; Centers for Disease Control and Prevention.

Schistosomiasis Fact Sheet; World Health Organization.

Colley, D.G., Bustinduy, A.L., Secor, W.E. and King, C.H., 2014. Human schistosomiasis. The Lancet, 383 (9936), pp.2253–2264.

Berry, A., Moné, H., Iriart, X., Mouahid, G., Aboo, O., Boissier, J., Fillaux, J., Cassaing, S., Debuisson, C., Valentin, A. and Mitta, G., 2014. Schistosomiasis haematobium, Corsica, France. Emerging Infectious Diseases, 20 (9), p.1595.

Webster, B.L., Southgate, V.R. and Littlewood, D.T.J., 2006. A revision of the interrelationships of Schistosoma including the recently described Schistosoma guineensis. International Journal for Parasitology, 36 (8), pp.947–955.

DPDx is an educational resource designed for health professionals and laboratory scientists. For an overview including prevention, control, and treatment visit www.cdc.gov/parasites/.
